12004 (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) Box and Tailgate Assembly Parts Diagram

Twister Utility Vehicle

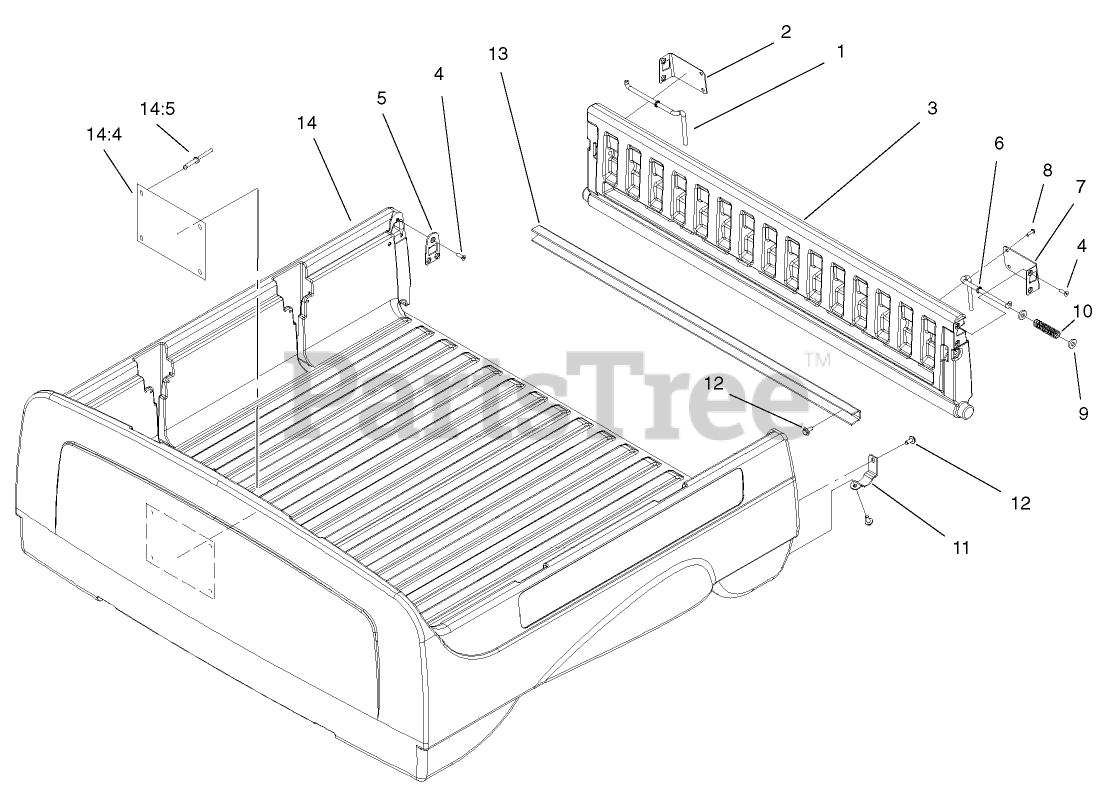

Box and Tailgate Assembly Parts Diagram

  • Title

1

Toro 99-7860

ROD-LATCH, RIGHT

$66.99

$

Usually ships in 3-6 days

0

2

Toro 99-7858

BRACKET-TAILGATE LATCH, RIGHT

$

$

Not available

3

Toro 99-7893

TAILGATE ASM

$

$

Not available

4

Toro 99-7334

See Supercession: 3289-4
(Superseded to 3289-4)

$4.49

$

Usually ships in 3-6 days

0

5

Toro 99-7852

PLATE-STRIKER

$

$

Not available

6

Toro 99-7859

ROD-LATCH, LEFT

$66.99

$

Usually ships in 3-6 days

0

7

Toro 99-7857

BRACKET-TAILGATE LATCH, LEFT

$30.99

$

Usually ships in 3-6 days

0

8

Toro 99-7335

SCREW

$0.99

$

Usually ships in 3-6 days

0

9

Toro 99-7861

WASHER-LATCH

$16.99

$

Usually ships in 3-6 days

0

10

Toro 61-8880

SPRING

$13.99

$

Usually ships in 3-6 days

0

11

Toro 99-7286

BRACKET-PIVOT, TAILGATE

$46.99

$

Usually ships in 3-6 days

0

12

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

13

Toro 99-7867

CHANNEL-TAILGATE

$153.99

$

Usually ships in 3-6 days

0

14

Toro 99-7891

DISCONTINUED
(Superseded to 120-4900)

$

$

Not available

14:4

Toro 99-7954

DECAL-NO RIDERS

$60.99

$

Usually ships in 3-6 days

0

14:5

Toro 3290-415

RIVET

$0.99

$

Usually ships in 3-6 days

0
