12004 (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) Front Tire and Steering Assembly Parts Diagram

Twister Utility Vehicle

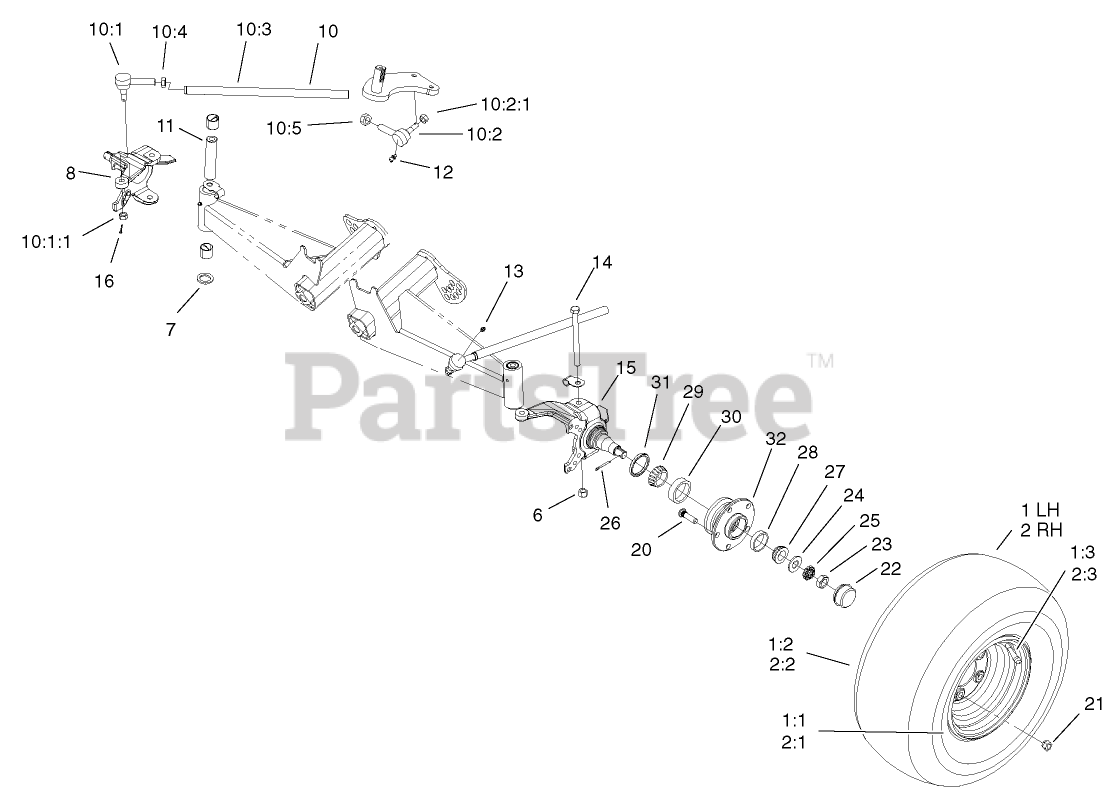

Front Tire and Steering Assembly Parts Diagram

  • Title

1

Toro 104-6831

DISCONTINUED-SEE NOTES

$

$

Not available

1:1

Toro 104-6889

WHEEL-5 BOLT

$211.99

$

Usually ships in 3-6 days

0

1:2

Toro 104-7062

TIRE

$361.99

$

Usually ships in 3-6 days

0

1:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

2

Loose Parts Package

$

$

Not available

2:1

Toro 104-6889

WHEEL-5 BOLT

$211.99

$

Usually ships in 3-6 days

0

2:2

Toro 104-7062

TIRE

$361.99

$

Usually ships in 3-6 days

0

2:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

6

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 256-115

WASHER-THRUST

$2.99

$

Usually ships in 3-6 days

0

8

Toro 104-6877-03

See Supercession: 104-6877
(Superseded to 104-6877)

$353.99

$

Usually ships in 3-6 days

0

10

Rod-Tie

Note: Not serviced separately

$

$

Not available

10:1

Toro 112772

See Supercession: 112772-03
(Superseded to 112772-03)

$91.99

$

In Stock, only 1 left!

0

10:1:1

Toro 915031

NUT

$1.49

$

Usually ships in 3-6 days

0

10:2

Toro 112771

See Supercession: 112771-03
(Superseded to 112771-03)

$91.99

$

In Stock, only 1 left!

0

10:2:1

Toro 915031

NUT

$1.49

$

Usually ships in 3-6 days

0

10:3

Toro 99-7600-03

ROD-TIE

$60.99

$

Usually ships in 3-6 days

0

10:4

Toro 3220-11

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

10:5

Toro 3218-21

NUT-JAM

$4.49

$

Usually ships in 3-6 days

0

11

Toro 99-7499

SLEEVE-KINGPIN

$93.99

$

Usually ships in 3-6 days

0

12

Toro 302-60

FITTING-GREASE

$3.49

$

Usually ships in 3-6 days

0

13

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

14

Toro 325-20

SCREW-HH

$8.49

$

In Stock, Qty 10

0

15

Toro 104-6876-03

See Supercession: 104-6876
(Superseded to 104-6876)

$314.99

$

Usually ships in 3-6 days

0

16

Toro 3272-7

PIN-COTTER
(Superseded to 702947)

$65.99

$

Usually ships in 3-6 days

0

20

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

21

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

22

Toro 241-119

CAP-DUST

$15.99

$

In Stock, only 2 left!

0

23

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 20+

0

24

Toro 93-0309

WASHER-TAB

$4.99

$

Usually ships in 3-6 days

0

25

Toro 93-0307

NUT-LOCK, RETAINER

$4.49

$

Usually ships in 3-6 days

0

26

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

27

Toro 254-94

BEARING-CONE, TAPERED

$9.99

$

In Stock, Qty 11

0

28

Toro 254-72

BEARING-CUP, TAPERED

$11.99

$

In Stock, Qty 20+

0

29

Toro 254-106

CONE-BEARING, TAPERED

$25.99

$

In Stock, only 2 left!

0

30

Toro 254-107

CUP-BEARING, TAPERED

$13.99

$

Usually ships in 3-6 days

0

31

Toro 87-3590

SEAL-BEARING

$18.99

$

Usually ships in 3-6 days

0

32

Toro 104-6809-03

See Supercession: 117-8071
(Superseded to 117-8071)

$251.99

$

Usually ships in 3-6 days

0
