12004 (1600) - Toro Twister Utility Vehicle (SN: 230000001 - 230999999) (2003) Box and Tailgate Installation Assembly Parts Diagram

Twister Utility Vehicle

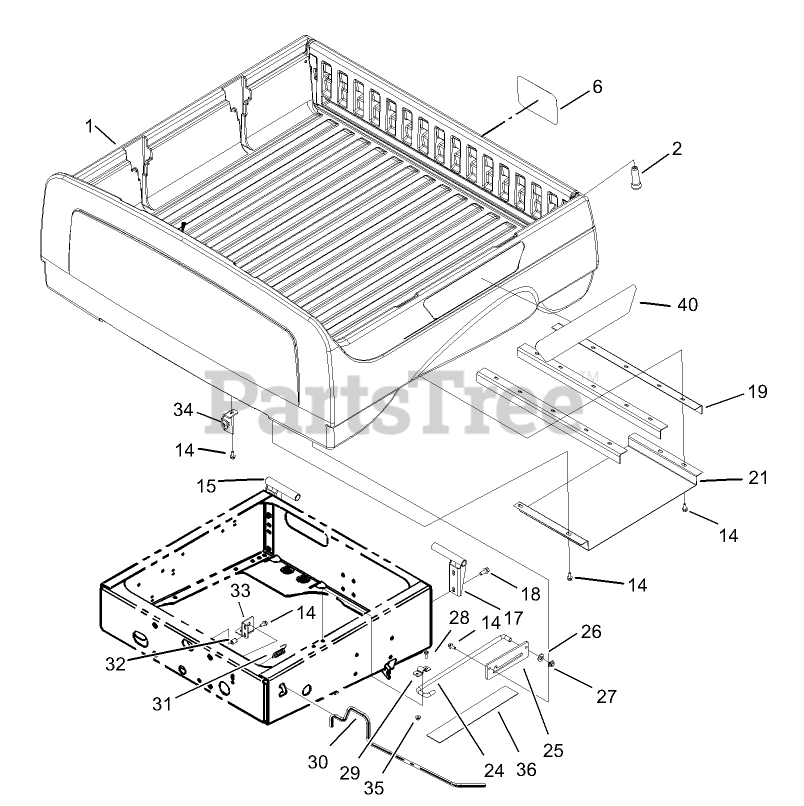

Box and Tailgate Installation Assembly Parts Diagram

  • Title

1

Box and Tailgate ASM

Note: Not serviced separately

$

$

Not available

2

Toro 99-7984

KNOB-SOFT GRIP, PUSH-ON

$15.99

$

Usually ships in 3-6 days

0

6

Toro 104-7213

DECAL

$34.99

$

Usually ships in 3-6 days

0

14

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

15

Toro 99-7309-03

RH PIVOT BRACKET ASM

$98.99

$

Usually ships in 3-6 days

0

17

Toro 99-7308-03

LH PIVOT BRACKET ASM

$98.99

$

Usually ships in 3-6 days

0

18

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

19

Toro 99-7864-03

BRACE-BOX

$41.99

$

Usually ships in 3-6 days

0

21

Toro 99-7870

SHIELD-HEAT

$

$

Not available

24

Toro 99-7895

ROD-PROP

$58.99

$

Usually ships in 3-6 days

0

25

Toro 99-7894

BRACKET-ROD, PROP

$40.99

$

Usually ships in 3-6 days

0

26

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 32112-14

NUT-PUSH

$2.99

$

In Stock, Qty 6

0

28

Toro 3234-17

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

29

Toro 99-7896

BRACKET-U, PROP ROD

$

$

Not available

30

Toro 99-7745

ROD-LATCH

$66.99

$

Usually ships in 3-6 days

0

31

Toro 5-7290

SPRING-TENSION

$27.99

$

Usually ships in 3-6 days

0

32

Toro 32148-7

NUT-CLINCH

$4.49

$

Usually ships in 3-6 days

0

33

Toro 99-7744-03

BRACKET-LATCH

$59.99

$

Usually ships in 3-6 days

0

34

Toro 99-7742-03

HOOK-LATCH, RH

$44.99

$

Usually ships in 3-6 days

0

35

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

36

Toro 104-6859

SHIELD-HEAT

$

$

Not available

40

Toro 104-7266

DECAL-BED

$

$

Not available
