12004 (1600) - Toro Twister Utility Vehicle (SN: 230000001 - 230999999) (2003) Seatbase Assembly Parts Diagram

Twister Utility Vehicle

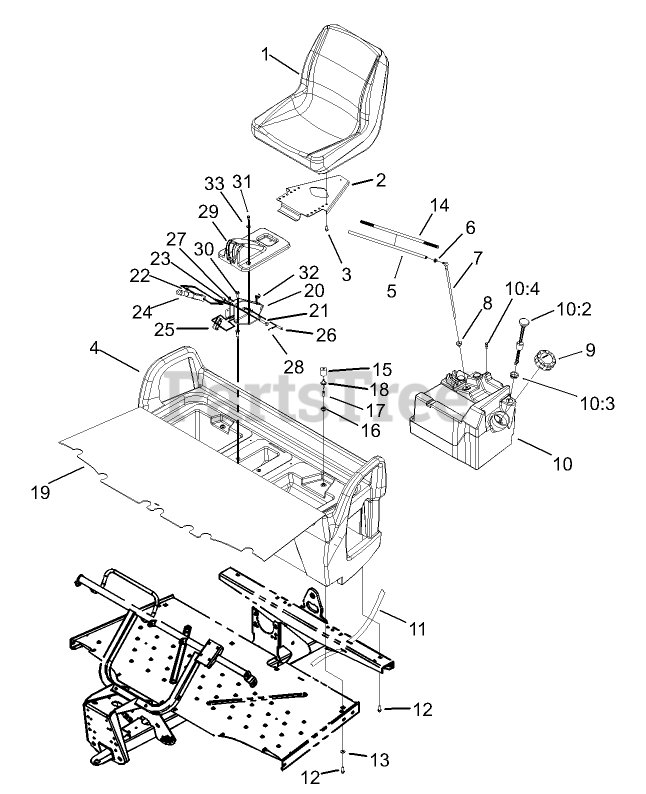

Seatbase Assembly Parts Diagram

  • Title

1

Toro 99-7281

See Supercession: 112-2923
(Superseded to 112-2923)

$386.99

$

Usually ships in 3-6 days

0

2

Toro 99-7829

BRACKET-SEAT

$136.99

$

Usually ships in 3-6 days

0

3

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 104-6847

BASE-SEAT

$

$

Not available

5

Toro 99-7187

See Supercession: 109-0301
(Superseded to 109-0301)

$14.99

$

In Stock, only 1 left!

0

6

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

7

Toro 99-7264

PIPE-STAND

$31.99

$

Usually ships in 3-6 days

0

8

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

9

Toro 95-4192

UNLEADED GAS CAP ASM

$42.99

$

In Stock, only 2 left!

0

10

Toro 99-7323

FUEL TANK ASM

$

$

Not available

10:2

Toro 99-7262

GAUGE-FUEL
(Superseded to 103-6564)

$81.99

$

In Stock, only 3 left!

0

10:3

Toro 95-8972

GROMMET

$12.99

$

In Stock, only 4 left!

0

10:4

Toro 99-7267

VENT-AIR

$62.99

$

Usually ships in 3-6 days

0

11

Toro 3339-175

STRAPPING-WEB

$22.99

$

Usually ships in 3-6 days

0

12

Toro 3234-17

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

13

Toro 88-7200

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

14

Toro 99-7129

CONDUIT-LINE, FUEL

$11.99

$

Usually ships in 3-6 days

0

15

Toro 99-7830

RECEPTICAL-RUBBER

$18.99

$

Usually ships in 3-6 days

0

16

Toro 99-7833

POST-HOLDING

$5.99

$

Usually ships in 3-6 days

0

17

Toro 32108-5

SCREW-FH

$2.99

$

Usually ships in 3-6 days

0

18

Toro 3290-412

RIVET-BLIND

$3.99

$

In Stock, Qty 17

0

19

Toro 104-6590

MAT-FLOOR

$

$

Not available

20

Toro 104-6844-03

SUPPORT-BRAKE, PARK

$146.99

$

Usually ships in 3-6 days

0

21

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 3290-477

WASHER-CURVED

$1.49

$

Usually ships in 3-6 days

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 104-6842

See Supercession: 127-8863
(Superseded to 127-8863)

$137.99

$

In Stock, Qty 13

0

25

Toro 87-3480

BRACKET-EQUALIZER, CABLE

$19.99

$

Usually ships in 3-6 days

0

26

Toro 94-3829

PIN-CLEVIS

$2.99

$

In Stock, only 3 left!

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

29

Toro 104-7014

COVER-BRAKE, PARKING

$95.99

$

Usually ships in 3-6 days

0

30

Toro 3234-17

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

31

Toro 12-3270

SCREW

$3.99

$

In Stock, only 2 left!

0

32

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

33

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
