121-2984 - Toro Roll-Over Protection System Kit Roll-Over Protection System Assembly Parts Diagram

Roll-Over Protection System Kit

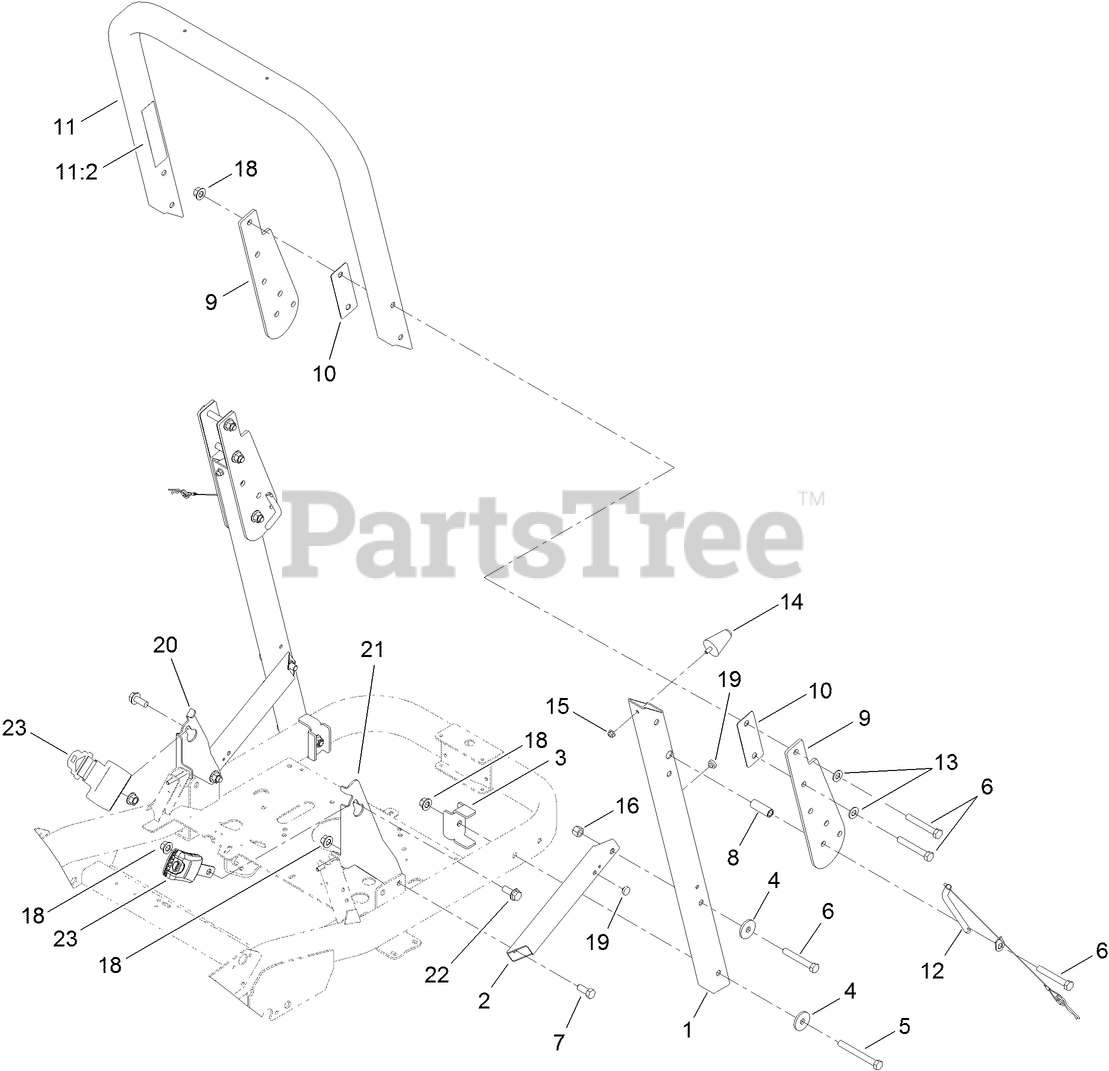

Roll-Over Protection System Assembly Parts Diagram

  • Title

1

Toro 121-2986-03

TUBE-ROPS, LOWER

$136.99

$

Usually ships in 3-6 days

0

2

Toro 115-4962-03

TUBE-SUPPORT, ROPS

$51.99

$

Usually ships in 3-6 days

0

3

Toro 115-4963-03

BRACKET-REINFORCING

$21.99

$

Usually ships in 3-6 days

0

4

Toro 84-1560

WASHER-THRUST

$11.99

$

Usually ships in 3-6 days

0

5

Toro 325-18

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

6

Toro 325-14

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

7

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

8

Toro 109-6653

SPACER

$6.99

$

Usually ships in 3-6 days

0

9

Toro 119-8911-03

BRACKET-PIVOT, ROPS

$46.99

$

Usually ships in 3-6 days

0

10

Toro 119-8926-03

SPACER-ROPS

$4.99

$

Usually ships in 3-6 days

0

11

Toro 119-8991

UPPER ROPS ASM

$

$

Not available

11:2

Toro 107-3069

DECAL-WARNING

$27.99

$

Usually ships in 3-6 days

0

12

Toro 119-8970

PIN-ROPS W/ LANYARD

$36.99

$

Usually ships in 3-6 days

0

13

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 114-1925

BUMPER-RUBBER

$29.99

$

In Stock, only 3 left!

0

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 119-8969

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

18

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

19

Toro 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0

20

Toro 115-5038-03

BRACKET-BELT, SEAT

$34.99

$

Usually ships in 3-6 days

0

21

Toro 115-5060-03

BRACKET-BELT, SEAT

$41.99

$

Usually ships in 3-6 days

0

22

Toro 3234-38

SCREW-HHF

$6.99

$

In Stock, Qty 11

0

23

Toro 109-9805

SEAT BELT KIT

$339.99

$

Usually ships in 3-6 days

0
