126-6122 - Exmark Ultra Vac Bagger for Radius Mower (SN: 402082300 - 404314158) (2018) Blower Assembly Parts Diagram

Ultra Vac Bagger for Radius Mower

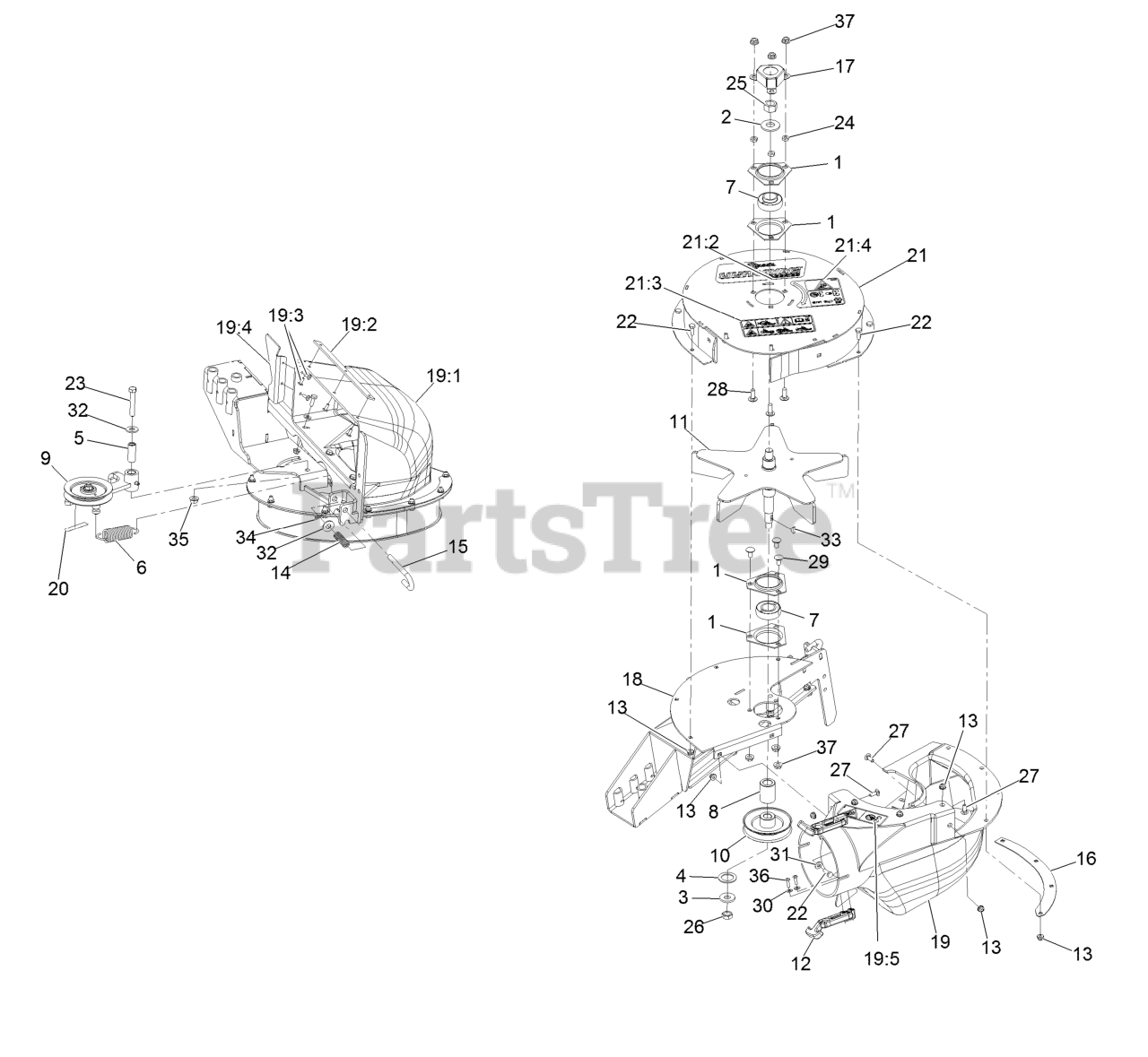

Blower Assembly Parts Diagram

  • Title

1

Exmark 1-513013

Housing-Flange

$5.99

$

In Stock, Qty 20+

0

2

Exmark 1-513208

Washer-Spring Disc 5/8

$10.99

$

Usually ships in 3-6 days

0

3

Exmark 1-513435

Washer-Spring Disc 1/2

$6.49

$

In Stock, Qty 20+

0

4

Exmark 1-523157

Washer

$1.99

$

In Stock, Qty 20+

0

5

Exmark 1-603044

Bushing

$15.99

$

In Stock, Qty 20+

0

6

Exmark 1-653331

Spring

$13.99

$

In Stock, only 2 left!

0

7

Exmark 1-653346

Bearing

$82.99

$

In Stock, Qty 11

0

8

Exmark 1-653365

Spacer

$29.99

$

In Stock, only 2 left!

0

9

Exmark 103-0459

Asm, Idler

$

$

Currently unavailable

10

Exmark 103-1047

Sheave-Blower

$90.99

$

In Stock, only 2 left!

0

11

Exmark 103-3815

Impeller

$348.99

$

In Stock, only 2 left!

0

12

Exmark 103-4080

Latch-Rubber

$39.99

$

In Stock, only 3 left!

0

13

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

14

Exmark 109-7694

Spring-Compression

$7.49

$

In Stock, only 2 left!

0

15

Exmark 116-4356

Pin-Latch

$18.99

$

Usually ships in 3-6 days

0

16

Exmark 116-4434-03

Plate-Backing

$22.99

$

Usually ships in 3-6 days

0

17

Exmark 116-4776

Cover-Nut

$35.99

$

Usually ships in 3-6 days

0

18

Exmark 116-6484-03

Blower Frame ASM [black]

$590.99

$

Usually ships in 3-6 days

0

19

Exmark 116-6487

Blower Chute ASM

$397.99

$

Usually ships in 3-6 days

0

19:1

Exmark 116-4991

Chute-Blower, Small

$381.99

$

Usually ships in 3-6 days

0

19:2

Exmark 103-4752-03

Plate-Reinforcing

$14.99

$

Usually ships in 3-6 days

0

19:3

Exmark 114439

Rivet

$1.49

$

In Stock, Qty 20+

0

19:4

Exmark 116-6486-03

Plate-Filler

$17.99

$

Usually ships in 3-6 days

0

19:5

Exmark 126-4853

Decal-Warning

$7.99

$

Usually ships in 3-6 days

0

20

Exmark 126-4659

Decal-Warning

$6.49

$

Usually ships in 3-6 days

0

21

Exmark 126-9784

Upper-Housing W/Decal

$

$

Not available

21:2

Exmark 126-7212

Decal-Ultravac E-Series

$

$

Not available

21:3

Exmark 126-9451

Decal-Warning

$10.99

$

Usually ships in 3-6 days

0

21:4

Exmark 126-9595

Decal-Warning

$10.99

$

Usually ships in 3-6 days

0

22

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

23

Exmark 323-11

Screw-HH 3/8-16 X 2 1/4

$2.49

$

In Stock, Qty 20+

0

24

Exmark 3218-2

Nut-Jam 5/16-18

$0.99

$

In Stock, Qty 20+

0

25

Exmark 3219-6

Nut-Hex 5/8-18

$4.49

$

In Stock, Qty 20+

0

26

Exmark 3220-5

Nut-Jam 1/2-20

$1.99

$

In Stock, Qty 20+

0

27

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 20+

0

28

Exmark 3230-10

Bolt-Carriage 5/16-18 X 7/8

$4.49

$

In Stock, Qty 20+

0

29

Exmark 3230-18

Bolt-Carriage 5/16-18 X 5/8

$5.99

$

In Stock, Qty 8

0

30

Exmark 3256-14

Washer-#10 Std

$0.99

$

In Stock, Qty 20+

0

31

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3257-32

Key-Woodruff 3/16 X 5/8

$2.99

$

In Stock, only 1 left!

0

34

Exmark 3290-307

Pin-Cotter
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

35

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0

36

Exmark 3290-500

Screw-PPH #10-24 X 5/8

$1.49

$

In Stock, Qty 20+

0

37

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0
