126-9361 - Toro CE Kit for 132cm E-Z Vac Bagger for Titan HD Mower CE Compliance Assembly No. 126-9361 Parts Diagram

CE Kit for 132cm E-Z Vac Bagger for Titan HD Mower

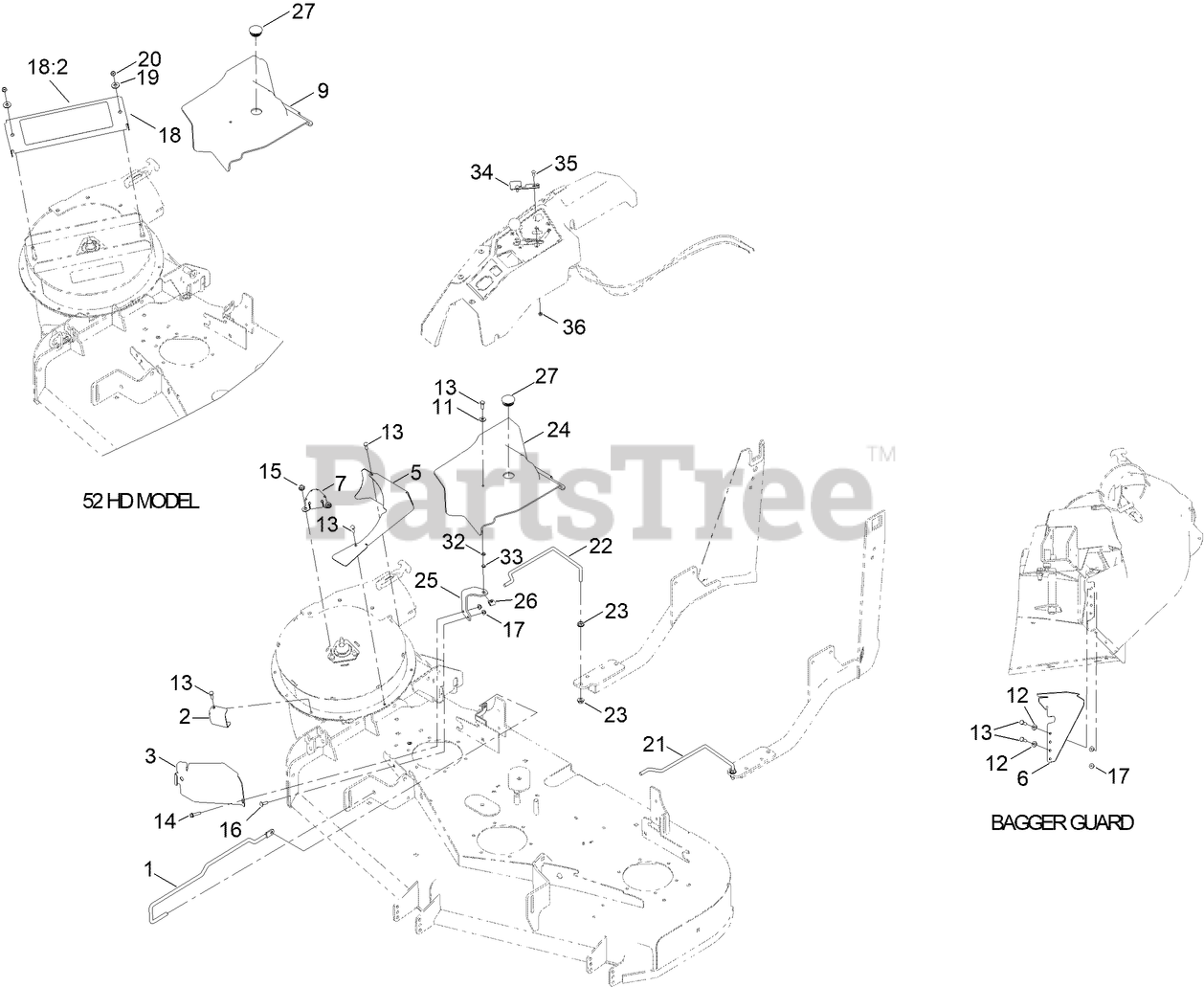

CE Compliance Assembly No. 126-9361 Parts Diagram

  • Title

1

Toro 126-9160

ROD-SUPPORT, LOWER

$106.99

$

Usually ships in 3-6 days

0

2

Toro 126-9161-03

GUARD-FRONT, LEFT

$52.99

$

Usually ships in 3-6 days

0

3

Toro 126-9553-03

GUARD-BAGGER

$

$

Not available

5

Toro 121-7571-03

GUARD-TOP

$

$

Currently unavailable

6

Toro 121-7572-03

GUARD-BAGGER

$

$

Currently unavailable

7

Toro 121-7575-03

COVER-NUT

$

$

Currently unavailable

9

Toro 126-9163

BELT-COVER

$211.99

$

Usually ships in 3-6 days

0

11

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 120-4654

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

15

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

17

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Toro 117-0924

COVER-BEARING

$

$

Currently unavailable

18:2

Toro 117-0923

DECAL-DANGER

$27.99

$

Usually ships in 3-6 days

0

19

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

21

Toro 126-9358

ROD-SUPPORT, REAR (LH)

$78.99

$

Usually ships in 3-6 days

0

22

Toro 126-9359

ROD-SUPPORT, REAR (RH)

$78.99

$

Usually ships in 3-6 days

0

23

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Toro 115-3638

BELT COVER

$251.99

$

Usually ships in 3-6 days

0

25

Toro 115-3637-01

BRACKET-COVER, BELT

$28.99

$

Usually ships in 3-6 days

0

26

Toro 609900

NUT-SPEED

$9.49

$

Usually ships in 3-6 days

0

27

Toro 117-0946

PLUG-PLASTIC

$6.99

$

Usually ships in 3-6 days

0

32

Toro 3256-60

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

33

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 5

0

34

Toro 119-1883

PLATE-SET, THROTTLE

$45.99

$

Usually ships in 3-6 days

0

35

Toro 1-807533

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

36

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
