128 LD (545192138) - Husqvarna String Trimmer (2009-03) Repair Parts Parts Diagram

String Trimmer

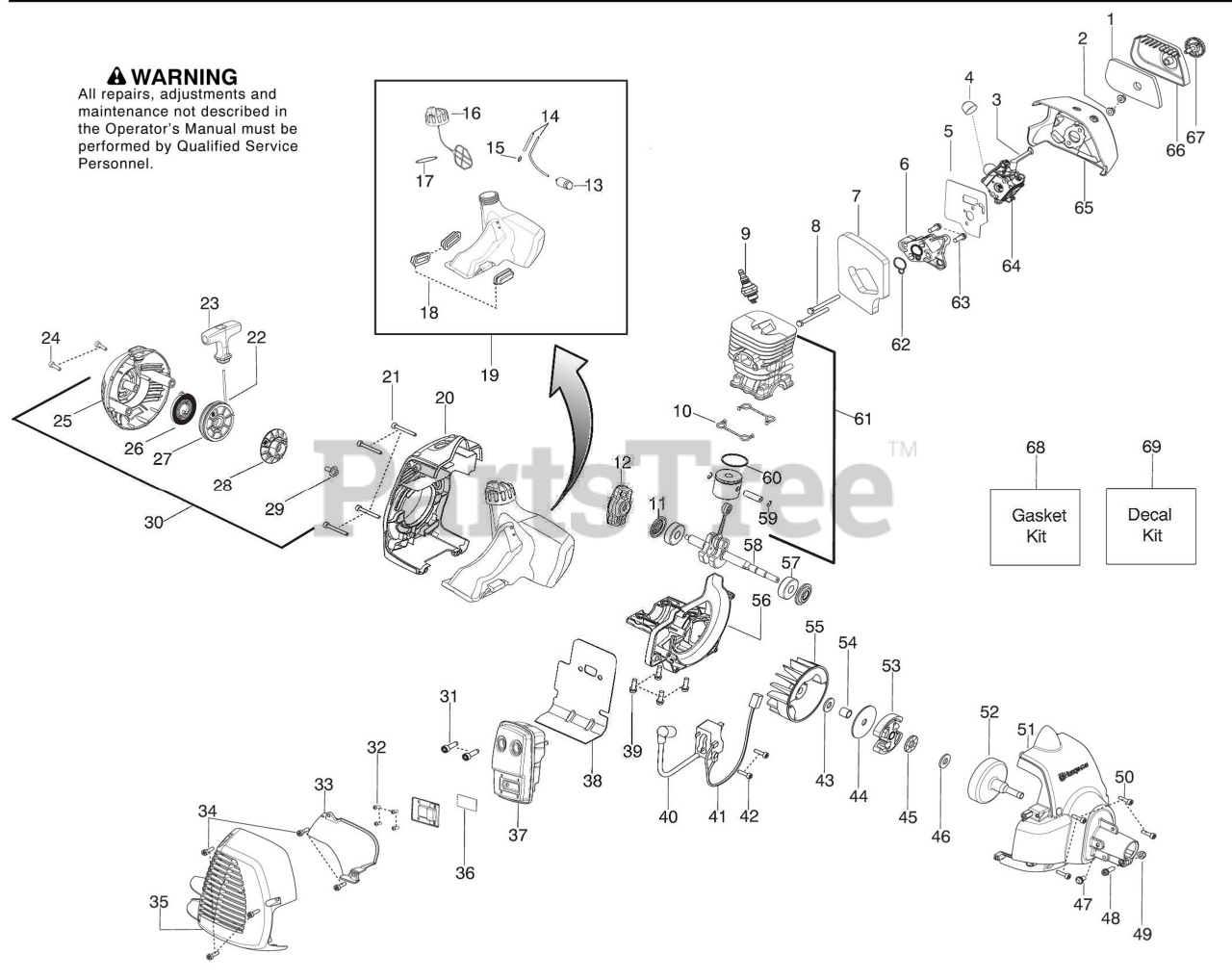

Repair Parts Parts Diagram

  • Title

1

Husqvarna 530150253

FILTER AIRBOX

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 530016101

NUT

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 530057844

CHOKE LEVER

$7.49

$

In Stock, Qty 8

0

4

Husqvarna 530058709

PURGE BULB ZAMA

$8.49

$

In Stock, Qty 20+

0

5

Husqvarna 545008086

KIT GASKET CARB 28CC

Note: (Incl. 7,62)

$14.99

$

Usually ships in 3-10 days

0

6

Husqvarna 530035596

CARB ADAPTOR

$9.49

$

In Stock, only 2 left!

0

7

Husqvarna 545008084

KIT GASKET 28CC

Note: (kit)

$22.99

$

In Stock, only 1 left!

0

8

Husqvarna 530016400

BOLT CARB ADAPTOR

$3.99

$

In Stock, only 2 left!

0

9

Husqvarna 952030201

Plug - Spark (RCJ-8Y)
(Superseded to 503235112)

$3.99

$

In Stock, Qty 20+

0

10

Seal - Cylinder

Note: (kit)

$

$

Not available

11

Husqvarna 545008084

KIT GASKET 28CC

Note: (kit)

$22.99

$

In Stock, only 1 left!

0

12

Assy - Starter Pawl

$

$

Not available

13

Husqvarna 530095646

FUEL PICK-UP ASSY

$7.49

$

In Stock, Qty 20+

0

14

Kit - Fuel Line

Note: (Incl. 15)

$

$

Not available

15

Husqvarna 530150350

ASSY-CAP W/RETAINER
(Superseded to 578931503)

$9.99

$

In Stock, Qty 6

0

16

Husqvarna 545008084

KIT GASKET 28CC

Note: (Incl. 17)

$22.99

$

In Stock, only 1 left!

0

17

Husqvarna 530059780

ISOLATOR FUEL TANK

Note: (kit)

$5.99

$

In Stock, only 1 left!

0

18

Isolator - Fuel Tank

$

$

Not available

19

Kit - Fuel Tank Assy.

Note: Incl. 13,14,15,16,17,18)

$

$

Not available

20

Husqvarna 530057851

REAR SHROUD
(Superseded to 576153201)

$13.99

$

In Stock, only 2 left!

0

21

Husqvarna 530016448

SCREW

$3.49

$

In Stock, only 2 left!

0

22

Kit - Rope

$

$

Not available

23

Handle - Starter

$

$

Not available

24

Husqvarna 530016426

SCREW M5-0.8X30MM

$4.99

$

In Stock, only 4 left!

0

25

Hsg. - Starter w/eyelet

$

$

Not available

26

Kit - Spring

$

$

Not available

27

Kit - Starter Pulley

$

$

Not available

28

Pulley-Driver

$

$

Not available

29

Husqvarna 530016468

SCREW

$3.49

$

In Stock, only 4 left!

0

30

Assy - Starter Hsg.

Note: (Incl. 22,23,25,26,27,28,29)

$

$

Not available

31

Husqvarna 530058982

BOLT MUFFLER

$3.99

$

In Stock, only 2 left!

0

32

Husqvarna 530015241

SCREW-6-19X5/16PLAST PA
(Superseded to 545227101)

$3.99

$

In Stock, only 4 left!

0

33

Husqvarna 530150440

SHIELD HEAT

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$3.99

$

In Stock, only 3 left!

0

35

Husqvarna 545104901

GUARD-MUFFLER
(Superseded to 576215001)

$17.99

$

In Stock, Qty 8

0

36

Husqvarna 545030501

KIT SPARK ARRESTOR SCREEN

Note: (Incl. 32)

$8.49

$

Usually ships in 3-10 days

0

37

Husqvarna 545057501

ASSY-MUFFLER
(Superseded to 574031502)

$43.99

$

In Stock, only 2 left!

0

38

Husqvarna 545008084

KIT GASKET 28CC

Note: (kit)

$22.99

$

In Stock, only 1 left!

0

39

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$3.99

$

In Stock, Qty 14

0

40

Husqvarna 545046701

IGNITION MODULE MBU-7

$62.99

$

In Stock, Qty 10

0

41

Husqvarna 530039227

ASSY MODULE LEAD WIRE

$8.49

$

In Stock, only 2 left!

0

42

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$3.99

$

In Stock, Qty 13

0

43

Husqvarna 530016463

WASHER CLUTCH

$4.99

$

In Stock, only 3 left!

0

44

Husqvarna 530094189

WASHER-CLUTCH

$2.49

$

In Stock, Qty 7

0

45

Husqvarna 545173401

BEARING THRUST

$2.49

$

In Stock, only 4 left!

0

46

Husqvarna 530016420

WASHER THRUST

$3.99

$

In Stock, only 2 left!

0

47

Husqvarna 530016469

SCREW

$

$

Not available

48

Husqvarna 530016470

SCREW

$

$

Not available

49

Husqvarna 530015768

LOCKNUT-HEX 10-24

$3.99

$

In Stock, Qty 10

0

50

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$3.99

$

In Stock, Qty 13

0

51

Husqvarna 545017501

FAN HSG ASSY

$

$

Not available

52

Husqvarna 530150039

ASSY-CLUTCH DRUM
(Superseded to 587126401)

$33.99

$

Usually ships in 3-10 days

0

53

Husqvarna 530055122

ASSEMBLY CLUTCH

$22.99

$

In Stock, Qty 7

0

54

Husqvarna 530057852

SPACER FLYWHEEL

$11.99

$

In Stock, only 2 left!

0

55

Husqvarna 530039242

FLYWHEEL

$39.99

$

In Stock, only 2 left!

0

56

Crankcase - Cast

$

$

Not available

57

Husqvarna 545013401

BEARING RADIAL BALL (6201)

$7.49

$

In Stock, Qty 16

0

58

Assy - Crankshaft

$

$

Not available

59

Husqvarna 530015162

WRIST PIN RET.

$3.49

$

In Stock, only 2 left!

0

60

Husqvarna 530019283

RING PISTON
(Superseded to 575227901)

$7.49

$

In Stock, Qty 14

0

61

Kit - Piston/Cyl.

Note: (Incl. 59,60)

$

$

Not available

62

Husqvarna 545008084

KIT GASKET 28CC

Note: (kit)

$22.99

$

In Stock, only 1 left!

0

63

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$3.99

$

In Stock, Qty 14

0

64

Husqvarna 545081850

CARBURETOR KIT W38

Note: (Incl. 3,4,5)

$

$

Not available

65

Husqvarna 545084601

RP_AIR BOX
(Superseded to 576459001)

$7.99

$

In Stock, only 2 left!

0

66

Husqvarna 530057846

COVER-AIR BOX

$9.99

$

In Stock, Qty 5

0

67

Husqvarna 530059796

KNOB ASSY AIRBOX COVER

$5.99

$

In Stock, Qty 5

0

68

Husqvarna 545008084

KIT GASKET 28CC

Note: (Incl. 5,7,10,11,17,38,62)

$22.99

$

In Stock, only 1 left!

0

69

Husqvarna 545003321

KIT DECAL

$5.99

$

Usually ships in 3-10 days

0
