Chute Gate Kit for GrandStand Mower

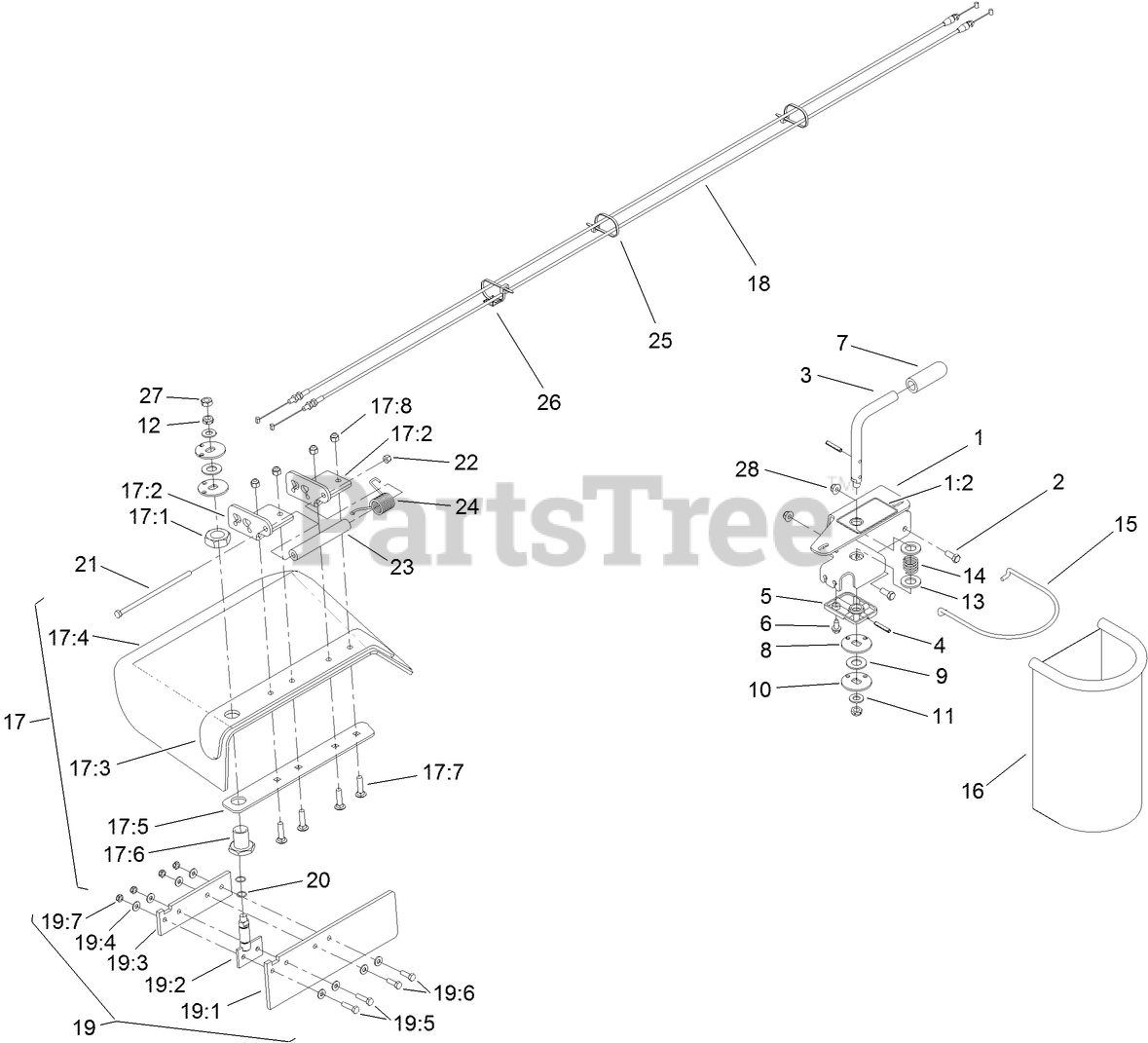

Chute Gate Kit Assembly Parts Diagram

  • Title

1

CONTROL BRACKET ASM

Note: Not serviced separately

$

$

Not available

1:2

Toro 117-8569

DECAL-GATE, CHUTE

$

$

Not available

2

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

3

Toro 114-1958

HANDLE

$84.99

$

Usually ships in 3-6 days

0

4

Toro 32121-15

PIN-ROLL

$1.99

$

In Stock, Qty 20+

0

5

Toro 108-2231

BLOCK-DETENT

$

$

Not available

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 108-7221

GRIP

$15.99

$

Usually ships in 3-6 days

0

8

Toro 108-7218

PULLEY-TOP

$11.99

$

Usually ships in 3-6 days

0

9

Toro 108-7217

PULLEY-MIDDLE

$11.99

$

Usually ships in 3-6 days

0

10

Toro 108-7216

PULLEY-BOTTOM

$11.99

$

Usually ships in 3-6 days

0

11

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

13

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

14

Toro 87-3660

SPRING-COMPRESSION

$17.99

$

Usually ships in 3-6 days

0

15

Toro 117-0546

ROD-BAG, TRASH

$54.99

$

Usually ships in 3-6 days

0

16

Toro 103-5971

BAG-TRASH

$

$

Not available

17

Toro 117-0469

RUBBER DEFLECTOR ASM

$380.99

$

Usually ships in 3-6 days

0

17:1

Toro 67-5840

NUT-JAM

$6.99

$

Usually ships in 3-6 days

0

17:2

Toro 108-2241-01

PLATE-HINGE

$

$

Not available

17:3

Toro 108-2245-01

DEFLECTOR

$174.99

$

Usually ships in 3-6 days

0

17:4

Toro 117-0470

DEFLECTOR-CHUTE, RUBBER

$102.99

$

Usually ships in 3-6 days

0

17:5

Toro 108-2247-03

STRAP-DISCHARGE

$52.99

$

Usually ships in 3-6 days

0

17:6

Toro 108-7215

HUB ASM

$

$

Not available

17:7

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

17:8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 115-4175

CABLE

$55.99

$

Usually ships in 3-6 days

0

19

Toro 117-0471

DOOR ASM

$167.99

$

Usually ships in 3-6 days

0

19:1

Toro 117-0472

GATE-CHUTE, RUBBER

$25.99

$

Usually ships in 3-6 days

0

19:2

Toro 107-8505

HINGE-GATE

$108.99

$

Usually ships in 3-6 days

0

19:3

Toro 108-7219

DOOR-SUPPORT

$6.99

$

Usually ships in 3-6 days

0

19:4

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

19:5

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

19:6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19:7

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

20

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

21

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 15

0

22

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0

24

Toro 108-4052

SPRING-TORSION

$28.99

$

In Stock, Qty 6

0

25

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

26

Toro 93-3922

MOUNT-TIE, CABLE

$24.99

$

Usually ships in 3-6 days

0

27

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

28

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
