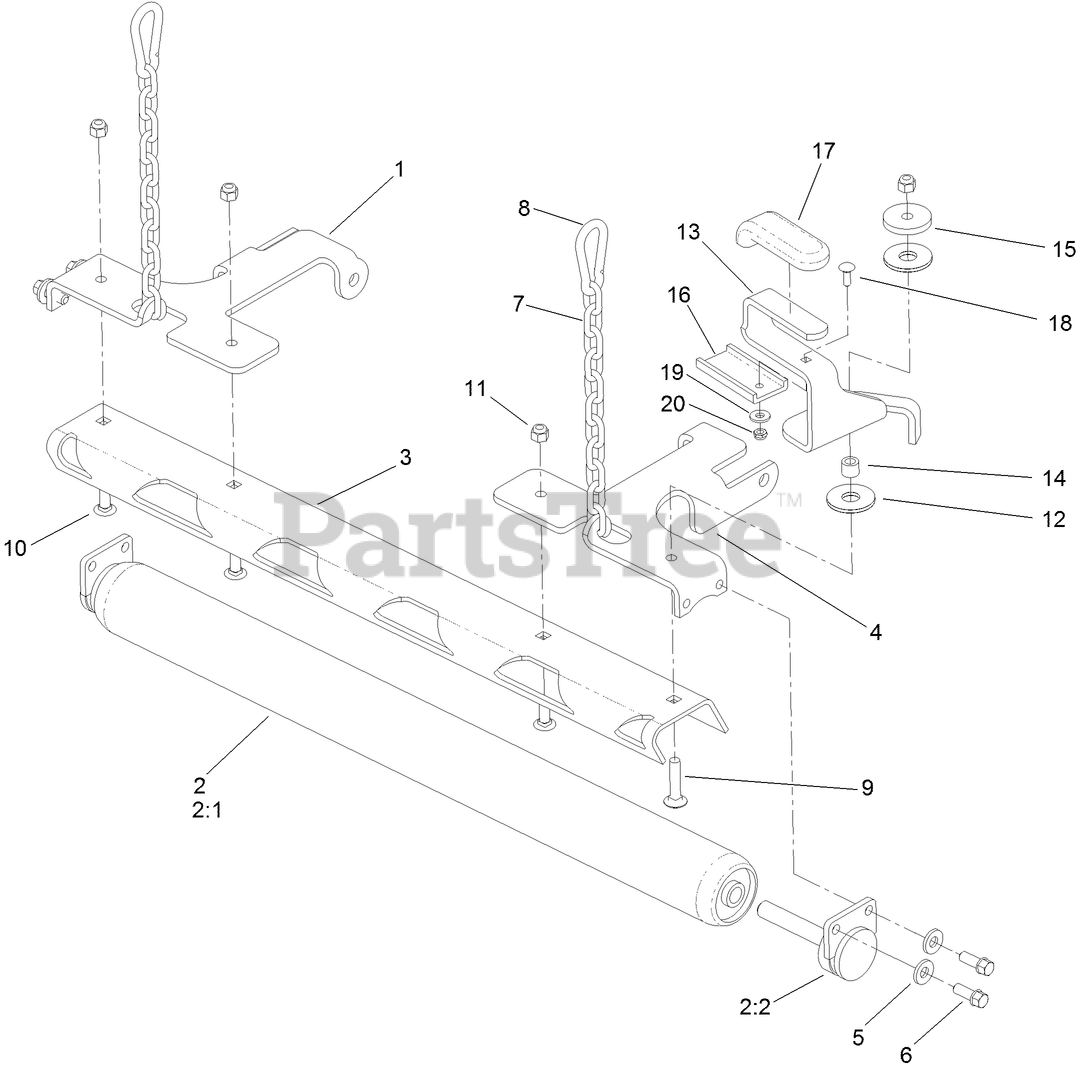

133-1436 - Toro Roller Striper Kit for GrandStand Mower Roller Assembly No. 136-5680 Parts Diagram

Roller Striper Kit for GrandStand Mower

Roller Assembly No. 136-5680 Parts Diagram

  • Title

1

Toro 114-3520-03

MOUNT-ROLLER, RH

$118.99

$

Usually ships in 3-6 days

0

2

Toro 108-2199

ROLLER ASM

$809.99

$

Usually ships in 3-6 days

0

2:1

Toro 108-2157

ROLLER-STRIPER

$362.99

$

Usually ships in 3-6 days

0

2:2

Toro 108-2198

HUB ASM

$339.99

$

Usually ships in 3-6 days

0

3

Toro 136-5678-03

SCRAPER-ROLLER

$107.99

$

Usually ships in 3-6 days

0

4

Toro 114-3519-03

MOUNT-ROLLER, LH

$118.99

$

Usually ships in 3-6 days

0

5

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

6

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

7

Toro 136-5707

CHAIN-STRAIGHT, LINK

$17.99

$

Usually ships in 3-6 days

0

8

Toro 107-1507

LINK-SNAP

$50.99

$

Usually ships in 3-6 days

0

9

Toro 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

0

13

Toro 120-6473-03

HANDLE-ROLLER

$

$

Not available

14

Toro 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, Qty 20+

0

15

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 20+

0

16

Toro 117-9667

SLIDE-PLASTIC

$71.99

$

Usually ships in 3-6 days

0

17

Toro 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 17

0

18

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

20

Toro 3296-56

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
