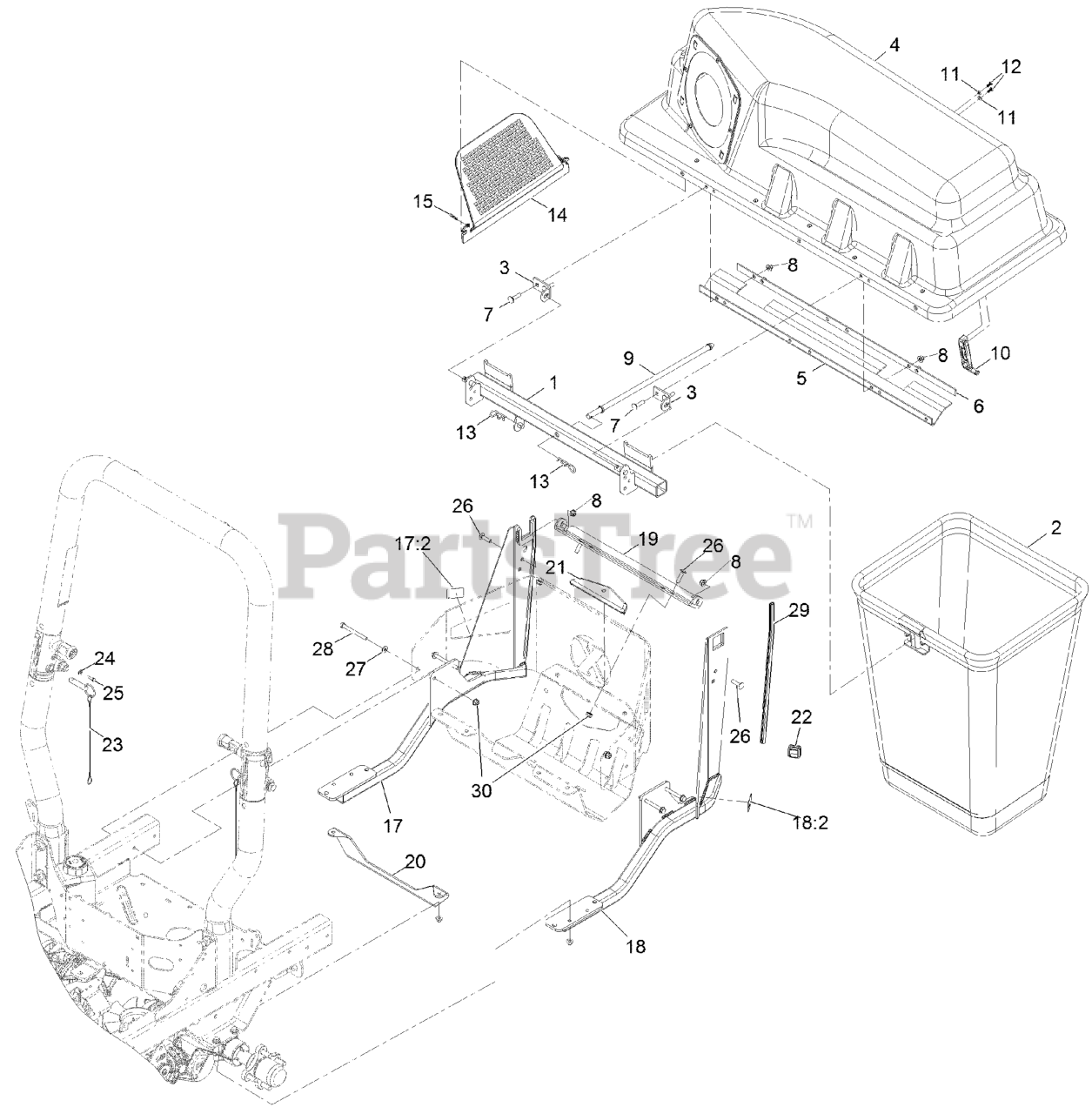

135-2604 - Exmark Radius Ultra Vac Bagger (SN: 404314159 - 406294344) (2019) Bagger Top and Mounting Assembly Parts Diagram

Radius Ultra Vac Bagger

Bagger Top and Mounting Assembly Parts Diagram

  • Title

1

Exmark 116-4783-03

FRAME PIVOT ASM

$212.99

$

Usually ships in 3-6 days

0

2

Exmark 116-0754

BAG AND FRAME ASM

$

$

Not available

3

Exmark 112-3987

BRACKET-PIVOT, HOPPER

$8.99

$

In Stock, only 2 left!

0

4

Exmark 116-4537

BAGGER HOOD ASM

$616.99

$

Usually ships in 3-6 days

0

5

Exmark 116-4126

SEAL

$37.99

$

In Stock, only 2 left!

0

6

Exmark 116-4127-03

PLATE-BACKING

$26.99

$

Usually ships in 3-6 days

0

7

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-6491

ROD-HOLD DOWN, HOOD

$66.99

$

Usually ships in 3-6 days

0

10

Exmark 116-4992

LATCH-RUBBER

$55.99

$

In Stock, only 2 left!

0

11

Exmark 3256-77

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

12

Exmark 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 13

0

13

Exmark 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

14

Exmark 112-3993

SCREEN-BAGGER

$35.99

$

In Stock, only 2 left!

0

15

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

17

Exmark 126-9662

RH BAGGER SUPPORT ASM

$299.99

$

Usually ships in 3-6 days

0

17:2

Exmark 106-5517

DECAL-WARNING

$5.99

$

In Stock, only 2 left!

0

18

Exmark 126-9663

LH BAGGER SUPPORT ASM

$299.99

$

Usually ships in 3-6 days

0

18:2

Exmark 106-5517

DECAL-WARNING

$5.99

$

In Stock, only 2 left!

0

19

Exmark 126-7612-03

ANGLE-SUPPORT

$42.99

$

Usually ships in 3-6 days

0

20

Exmark 126-5672-03

SUPPORT-TRANSMISSION

$79.99

$

Usually ships in 3-6 days

0

21

Exmark 126-8299

COVER-HITCH

$9.49

$

Usually ships in 3-6 days

0

22

Exmark 126-9159

PLUG

$5.99

$

Usually ships in 3-6 days

0

23

Exmark 106-9951

HITCH PIN ASM

$55.99

$

In Stock, only 1 left!

0

24

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 32104-4

SCREW

$1.49

$

Usually ships in 3-6 days

0

26

Exmark 3230-29

SCREW-CARR

$2.99

$

In Stock, only 2 left!

0

27

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Exmark 126-8742

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

29

Exmark 126-9923

Strip-Trim

$8.99

$

Usually ships in 3-6 days

0

30

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
