135-9607 - Exmark Turf Sprayer Attachment (SN: 406294345 - 408644345) (Rev B) (2020) Tank Assembly Parts Diagram

Turf Sprayer Attachment

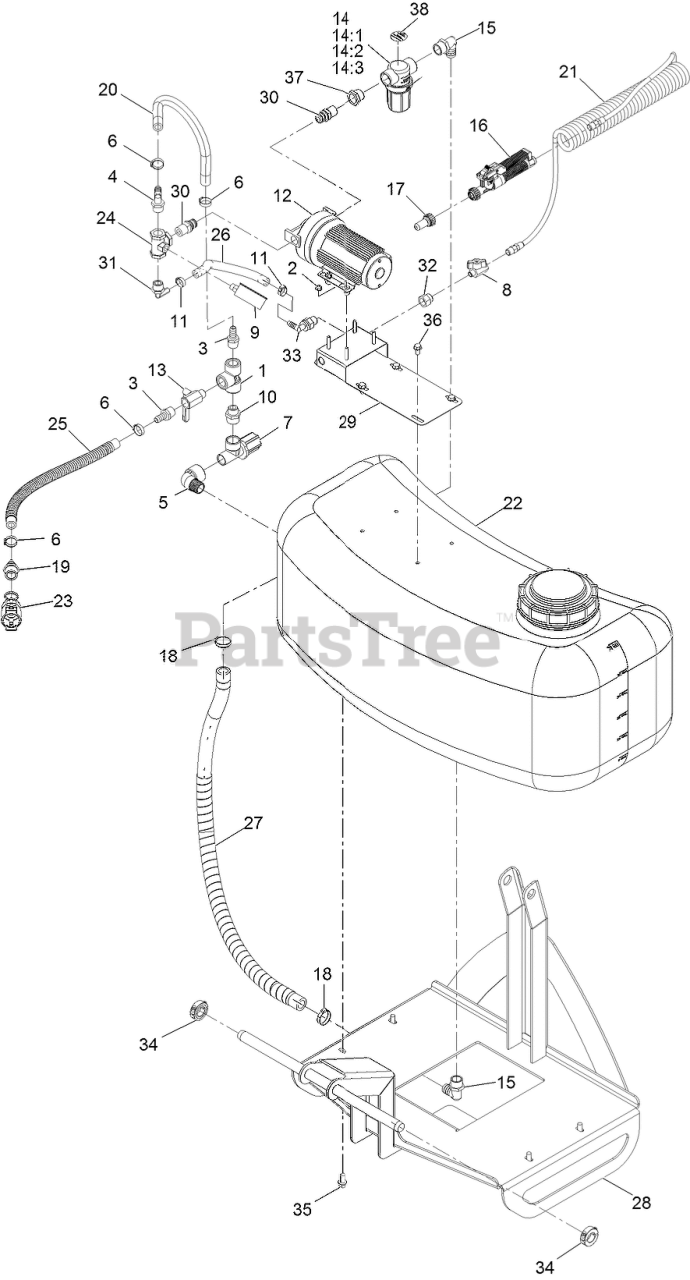

Tank Assembly Parts Diagram

  • Title

1

Exmark 94-7100

TEE

$11.99

$

In Stock, only 2 left!

0

2

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Exmark 120-8671

FITTING-HOSEBARB

$2.49

$

In Stock, only 3 left!

0

4

Exmark 120-8673

FITTING-ELBOW, HOSEBARB

$3.49

$

In Stock, only 2 left!

0

5

Exmark 132-7706

ELBOW-90DEG

$13.99

$

Usually ships in 3-6 days

0

6

Exmark 135-5692

CLAMP-OETIKER, 167

$2.49

$

In Stock, Qty 20+

0

7

Exmark 135-5736

VALVE-THROTTLE

$65.99

$

In Stock, Qty 8

0

8

Exmark 135-5737

VALVE-CHROME, 1/4

$23.99

$

In Stock, only 2 left!

0

9

Exmark 135-5740

GAUGE
(Superseded to 142-3437)

$44.99

$

In Stock, Qty 7

0

10

Exmark 135-5742

FITTING-NIPPLE

$1.99

$

In Stock, Qty 5

0

11

Exmark 135-5757

CLAMP-OETIKER, 167

$2.49

$

Usually ships in 3-6 days

0

12

Exmark 135-5759

PUMP-5.0 GPM
(Superseded to 142-3321)

$388.99

$

In Stock, only 4 left!

0

13

Exmark 135-5760

VALVE-CHROME, 1/2

$37.99

$

In Stock, Qty 5

0

14

Exmark 135-5765

STRAINER-INLINE

$34.99

$

In Stock, only 3 left!

0

14:1

Exmark 126-7195

BOWL-STRAINER

$30.99

$

In Stock, Qty 7

0

14:2

Exmark 126-2272

GASKET-HEAD, LINE STRAINE

$10.99

$

In Stock, only 2 left!

0

14:3

Exmark 135-5766

Screen-Strainer, 50 Mesh

$23.99

$

In Stock, only 2 left!

0

15

Exmark 135-5772

FITTING-ELBOW, 90

$2.49

$

In Stock, only 2 left!

0

16

Exmark 135-5773

GUN-SPRAY, SPOT

$74.99

$

In Stock, Qty 9

0

17

Exmark 135-5778

TIP-SPRAY, #12 SPOT

$28.99

$

In Stock, Qty 8

0

18

Exmark 135-5890

Clamp-Oetiker, 167

$3.49

$

In Stock, Qty 5

0

19

Exmark 135-6598

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

20

Exmark 135-6610

HOSE-SPRAY

$15.99

$

Usually ships in 3-6 days

0

21

Exmark 135-6612

HOSE-COILED, 15 FT

$110.99

$

In Stock, only 3 left!

0

22

Exmark 135-6620

ASM-TANK, 30 GAL

$502.99

$

Usually ships in 3-6 days

0

23

Exmark 135-6622

COUPLER-FEMALE

$20.99

$

Usually ships in 3-6 days

0

24

Exmark 135-6643

FITTING-CROSS

$17.99

$

Usually ships in 3-6 days

0

25

Exmark 135-7083

Hose-Spray, Wrapped

$20.99

$

Usually ships in 3-6 days

0

26

Exmark 135-7084

Hose-Spray

$10.99

$

Usually ships in 3-6 days

0

27

Exmark 135-7087

Hose-Spray, Wrapped

$35.99

$

Usually ships in 3-6 days

0

28

Exmark 135-8170-05

BASE-30 GAL ATTACH

$513.99

$

Usually ships in 3-6 days

0

29

Exmark 135-8177

PUMP MOUNT, 30 GALLON ATT

$63.99

$

Usually ships in 3-6 days

0

30

Exmark 135-8338

PUMP FTG X 1/2MPT FQ5MS-1

$7.99

$

In Stock, only 2 left!

0

31

Exmark 135-8341

1/2'MPT X 3/8' HB 90\N3EL

$1.99

$

In Stock, Qty 20+

0

32

Exmark 135-8356

OUTLET ADAPTER\N3NF1614

$3.49

$

Usually ships in 3-6 days

0

33

Exmark 135-8358

BOOM ELBOWS\N3NTL38

$6.99

$

Usually ships in 3-6 days

0

34

Exmark 142-3076

Collar-Shaft, Split, Cz

$59.99

$

Usually ships in 3-6 days

0

35

Exmark 3234-1

Screw-HH Flg 3/8-16 X 3/4

$1.99

$

In Stock, Qty 14

0

36

Exmark 3234-7

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

37

Exmark 41969

REDUCER-BUSHING, PLASTIC

$16.99

$

Usually ships in 3-6 days

0

38

Exmark 135-6424

DECAL-CAP, STRAINER

$2.49

$

Usually ships in 3-6 days

0
