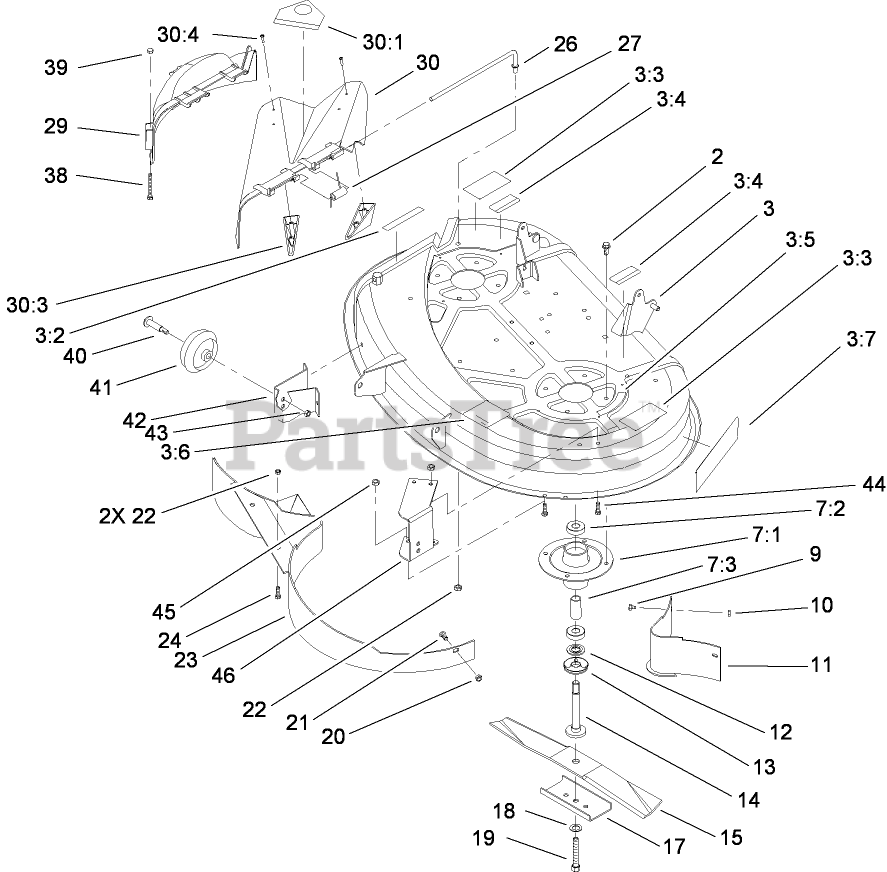

135 E (RT 380 H) - Hayter Rear-Engine Riding Mower, Canada (SN: 135E280000001 - 135E280999999) (2008) 38 Inch Deck Assembly Parts Diagram

Rear-Engine Riding Mower, Canada

38 Inch Deck Assembly Parts Diagram

  • Title

2

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

3

Toro 114-3230

38 INCH DECK ASM

$

$

Currently unavailable

3:2

Toro 93-7009

DECAL-DANGER

$7.99

$

In Stock, Qty 7

0

3:3

Toro 93-7010

DECAL-DANGER

$13.99

$

Usually ships in 3-6 days

0

3:4

Toro 93-6674

DECAL-WARNING

$7.99

$

Usually ships in 3-6 days

0

3:5

Toro 93-6677

DECAL-DANGER, SHIELD

$

$

Not available

3:6

Toro 93-6679

See Supercession: 117-0033
(Superseded to 117-0033)

$8.99

$

Usually ships in 3-6 days

0

3:7

Toro 114-3233

DECAL-RECYCLING

$

$

Currently unavailable

7

Spindle ASM

Note: Not serviced separately

$

$

Not available

7

Spindle ASM

Note: Not illustrated

$

$

Not available

7:1

Toro 88-4510

HOUSING-SPINDLE

$116.99

$

In Stock, Qty 10

0

7:2

Toro 100-1048

See Supercession: 38-7820
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

7:3

Toro 62-3661

SPACER

$17.99

$

In Stock, Qty 20+

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 79-1640-03

BAFFLE ASM

$78.99

$

Usually ships in 3-6 days

0

12

Toro 80-4380

SPACER

$7.49

$

In Stock, Qty 20+

0

13

Toro 80-4360

SHIELD-BEARING

$21.99

$

In Stock, Qty 20+

0

14

Toro 80-4341

SHAFT-SPINDLE

$57.99

$

In Stock, Qty 10

0

15

Toro 114-3231

BLADE KIT

$

$

Currently unavailable

17

Toro 80-0510-03

STIFFENER-BLADE

$20.99

$

In Stock, Qty 5

0

18

Toro 3290-465

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

19

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 88-6210-03

See Supercession: 88-6210
(Superseded to 88-6210)

$

$

Not available

24

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 5

0

26

Toro 95-1661

ROD-PIVOT

$23.99

$

In Stock, only 3 left!

0

27

Toro 57-6950

SPRING

$30.99

$

In Stock, Qty 6

0

29

Toro 88-4520

COVER-DISCHARGE, DECK

$

$

Not available

30

Toro 93-7695

DEFLECTOR ASM

$106.99

$

In Stock, only 1 left!

0

30:1

Toro 93-7317

DECAL-DANGER

$

$

Not available

30:3

Toro 93-7696

KICKER

$15.99

$

In Stock, only 4 left!

0

30:4

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

38

Toro 321-14

SCREW-HH

$5.49

$

In Stock, Qty 7

0

39

Toro 32111-7

NUT-CAP

$8.49

$

Usually ships in 3-6 days

0

40

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, only 2 left!

0

41

Toro 701756

WHEEL-GAGE

$8.99

$

In Stock, Qty 10

0

42

Toro 88-5740-03

BRACKET-WHEEL, RH

$49.99

$

Usually ships in 3-6 days

0

43

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

44

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

45

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

46

Toro 93-3896-03

BRACKET-WHEEL, LH

$74.99

$

Usually ships in 3-6 days

0
