135 E (RT 380 H) - Hayter Rear-Engine Riding Mower, Canada (SN: 135E280000001 - 135E280999999) (2008) 38 Inch Deck Blade Drive Assembly Parts Diagram

Rear-Engine Riding Mower, Canada

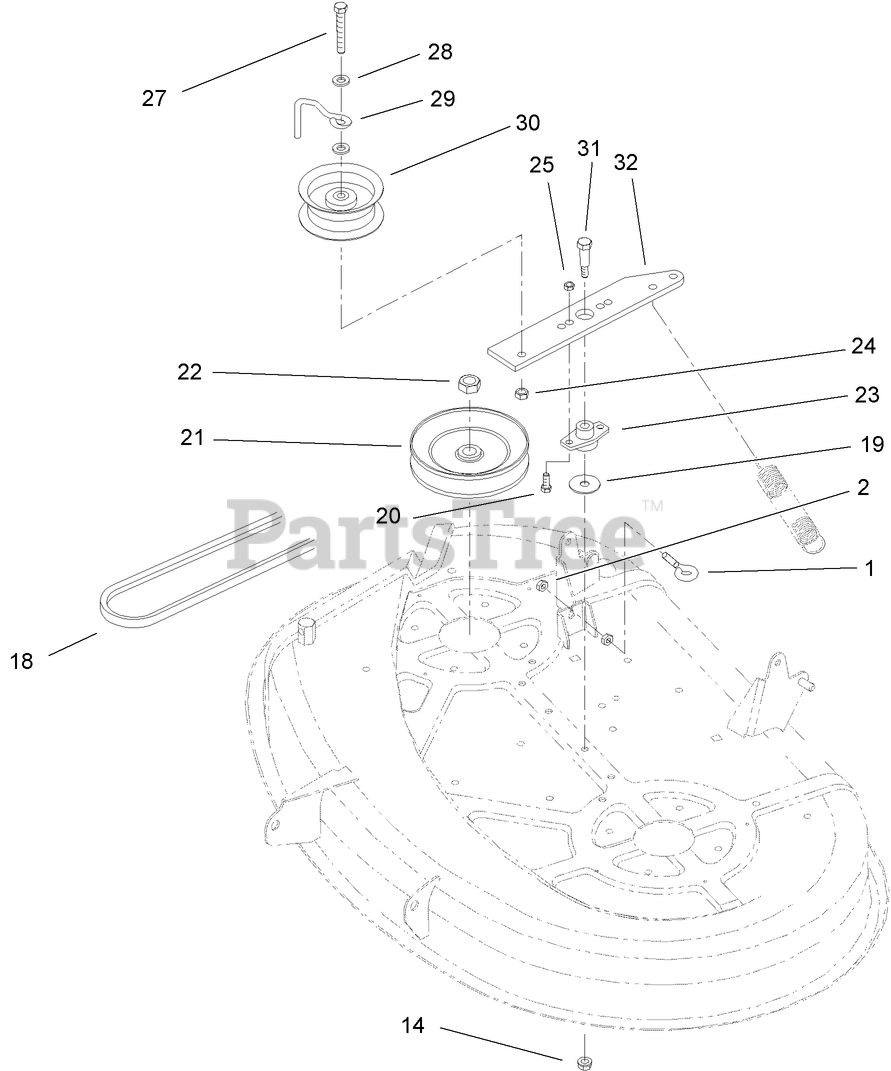

38 Inch Deck Blade Drive Assembly Parts Diagram

  • Title

1

Toro 85-9910

EYEBOLT

$38.99

$

Usually ships in 3-6 days

0

2

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 88-6250

V-BELT

$49.99

$

In Stock, Qty 9

0

19

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

20

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 88-5330

PULLEY

$139.99

$

In Stock, only 2 left!

0

22

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

23

Toro 88-4980

BUSHING-ARM, IDLER

$18.99

$

In Stock, Qty 9

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

27

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 107-7307

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 20+

0

30

Toro 88-5630

See Supercession: 132-4717
(Superseded to 132-4717)

$25.99

$

In Stock, Qty 5

0

31

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, Qty 6

0

32

Toro 88-4870-03

ARM-IDLER

$63.99

$

Usually ships in 3-6 days

0
