136-7493 - Toro Light Kit for TimeCutter HD Mower Light Kit Assembly No. 136-7493 Parts Diagram

Light Kit for TimeCutter HD Mower

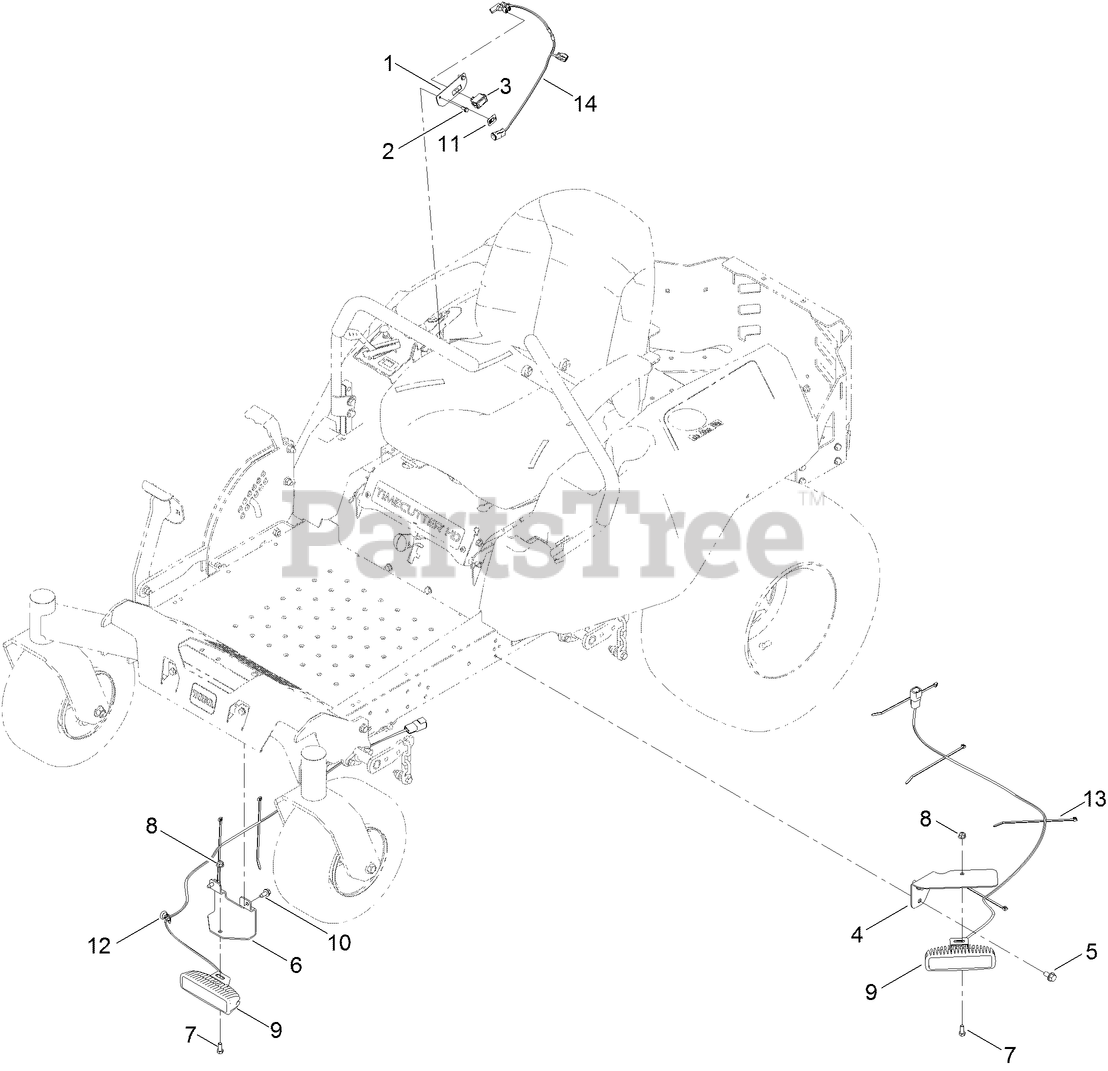

Light Kit Assembly No. 136-7493 Parts Diagram

  • Title

1

Toro 136-9181-03

BRACKET-SWITCH, LIGHT

$5.99

$

Usually ships in 3-6 days

0

2

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

3

Toro 92-8875

SWITCH-ROCKER

$18.99

$

In Stock, only 2 left!

0

4

Toro 136-9180-03

BRACKET-LIGHT, SIDE

$19.99

$

Usually ships in 3-6 days

0

5

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, only 2 left!

0

6

Toro 136-9179-03

BRACKET-LIGHT

$34.99

$

Usually ships in 3-6 days

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 126-7839

LIGHT-LED

$106.99

$

Usually ships in 3-6 days

0

10

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 136-9182

DECAL-SWITCH, LIGHT

$

$

Currently unavailable

12

Toro 32180-139

MOUNT-TIE WRAP, MAGNETIC

$28.99

$

Usually ships in 3-6 days

0

13

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0

14

Toro 136-9155

HARNESS-WIRE

$76.99

$

Usually ships in 3-6 days

0
