136-7813 (2P77F) - Toro Twin Cylinder Engine Fuel System Assembly Parts Diagram

Twin Cylinder Engine

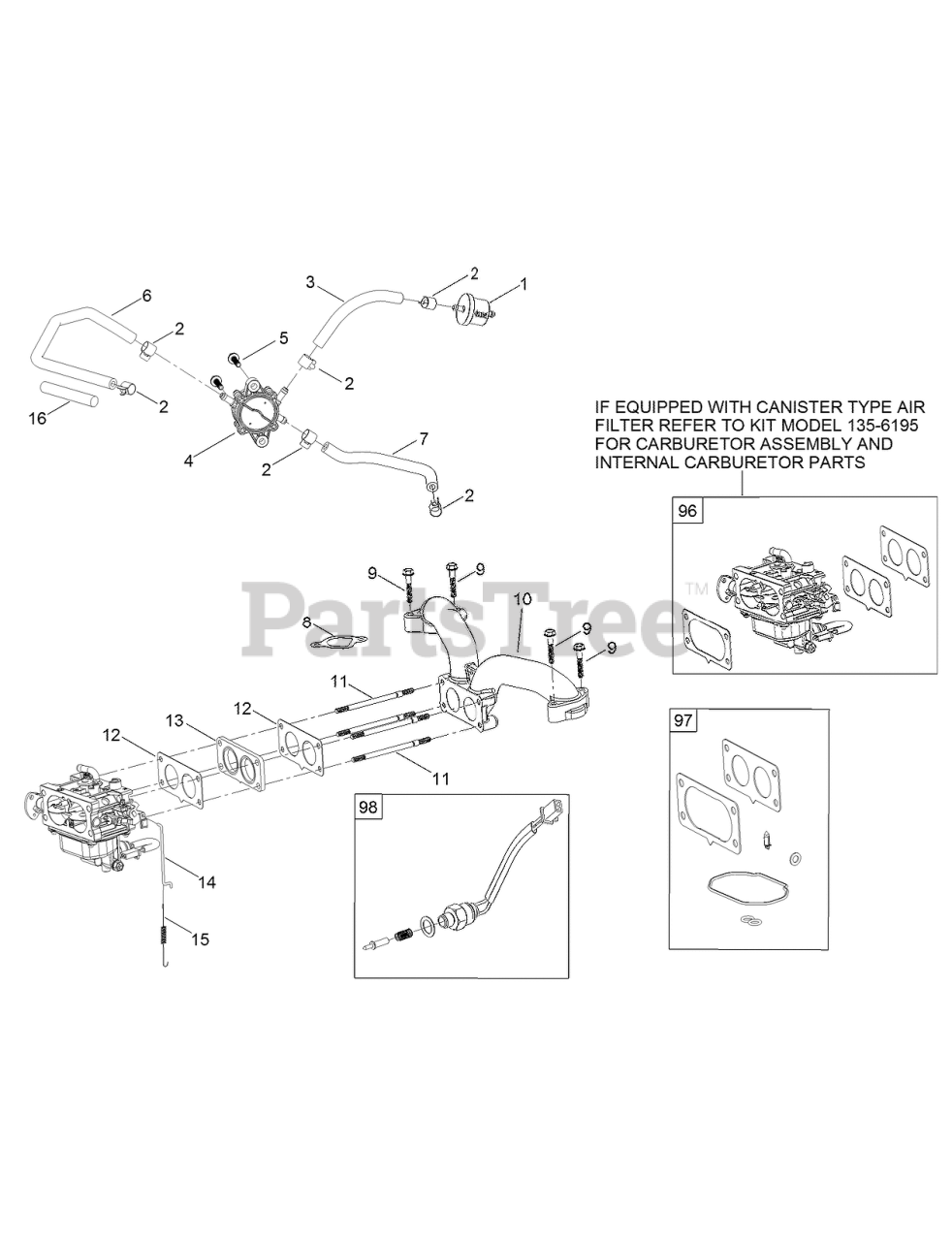

Fuel System Assembly Parts Diagram

  • Title

1

Toro 133-1563

FILTER-FUEL
(Superseded to 139-0717)

$13.99

$

In Stock, Qty 20+

0

2

Toro 120-4251

CLAMP-FUEL LINE
(Superseded to 139-0719)

$5.99

$

In Stock, only 4 left!

0

3

Toro 120-4371

LINE-FUEL

$7.49

$

In Stock, only 3 left!

0

4

Toro 127-9206

PUMP-FUEL
(Superseded to 139-0684)

$68.99

$

In Stock, Qty 20+

0

5

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

6

Toro 127-9205

HOSE-FUEL

$26.99

$

In Stock, only 2 left!

0

7

Toro 127-9207

HOSE-FUEL

$23.99

$

In Stock, only 2 left!

0

8

Toro 127-9230

GASKET-INTAKE

$2.99

$

In Stock, Qty 20+

0

9

Toro 120-4284

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

10

Toro 127-9244

MANIFOLD-INTAKE

$110.99

$

Usually ships in 3-6 days

0

11

Toro 127-9245

STUD

$5.99

$

Usually ships in 3-6 days

0

12

Toro 127-9246

GASKET-CARBURETOR

$5.99

$

In Stock, Qty 20+

0

13

Toro 127-9247

INSULATOR-CARBURETOR

$6.99

$

In Stock, only 2 left!

0

14

Toro 133-9963

LINKAGE-THROTTLE

$1.49

$

In Stock, Qty 5

0

15

Toro 133-9964

SPRING-RETURN, THROTTLE

$2.99

$

In Stock, Qty 11

0

16

Toro 127-9355

SLEEVE-FUEL LINE PROTECTOR

$2.99

$

Usually ships in 3-6 days

0

96

Toro 133-9966

CARBURETOR REPLACEMENT KIT

$362.99

$

Usually ships in 3-6 days

0

97

Toro 127-9290

CARBURETOR REPAIR KIT

$41.99

$

In Stock, Qty 20+

0

98

Toro 127-9292

SOLENOID KIT

$49.99

$

In Stock, Qty 13

0

99

Toro 133-9968

HIGH ALTITUDE KIT

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0
