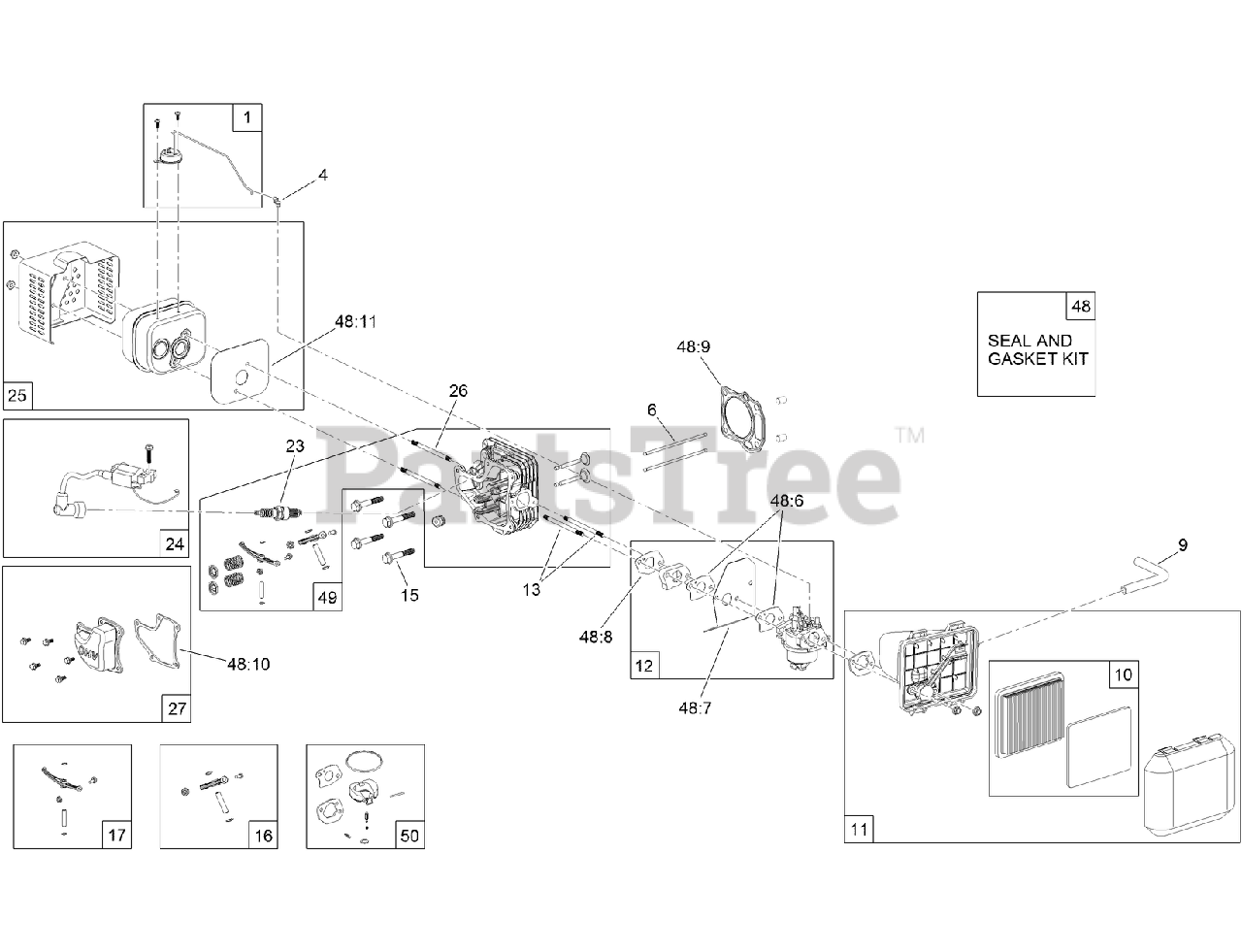

136-7909 (LC1P65FC) - Toro Zone-Start Engine Dipstick and Gasket Assembly Parts Diagram

Zone-Start Engine

Dipstick and Gasket Assembly Parts Diagram

  • Title

1

Toro 121-4175

THERMAL CONTROL KIT

$35.99

$

In Stock, only 3 left!

0

4

Toro 120-4451

LOCK-THROTTLE

$2.49

$

In Stock, Qty 10

0

6

Toro 121-4193

ROD-PUSH

$2.99

$

Usually ships in 3-6 days

0

9

Toro 119-1902

TUBE-BREATHER

$4.49

$

Usually ships in 3-6 days

0

10

Toro 119-1909

AIR FILTER AND PREFILTER KIT

$21.99

$

In Stock, Qty 20+

0

11

Toro 121-4177

AIR CLEANER ASM KIT

$42.99

$

In Stock, Qty 6

0

12

Toro 127-9146

INTERNAL CARB KIT WITH GASKETS

$27.99

$

In Stock, only 4 left!

0

12

Toro 136-7907

CARB REPLACEMENT KIT

$102.99

$

In Stock, Qty 9

0

13

Toro 121-0367

STUD-INTAKE

$3.99

$

Usually ships in 3-6 days

0

15

Toro 121-0043

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

16

Toro 136-7869

INTAKE ROCKER ARM ASM

$21.99

$

Usually ships in 3-6 days

0

17

Toro 136-7868

EXHAUST ROCKER ARM ASM

$22.99

$

Usually ships in 3-6 days

0

23

Toro 121-4199

SPARK PLUG

$9.49

$

In Stock, Qty 20+

0

24

Toro 136-7912

IGNITION ASM

$72.99

$

In Stock, only 2 left!

0

25

Toro 121-4277

MUFFLER AND SHIELD KIT

$90.99

$

Usually ships in 3-6 days

0

26

Toro 121-0045

STUD-EXHAUST

$1.99

$

In Stock, only 2 left!

0

27

Toro 121-4188

VALVE COVER KIT

$34.99

$

Usually ships in 3-6 days

0

48

Toro 127-9144

SEAL AND GASKET KIT

$49.99

$

In Stock, only 2 left!

0

48:6

Toro 121-4184

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 7

0

48:7

Toro 120-4446

INSULATOR-CARBURETOR

$4.49

$

Usually ships in 3-6 days

0

48:8

Toro 121-4183

GASKET-INTAKE

$1.99

$

In Stock, only 2 left!

0

48:9

Toro 121-4197

GASKET-HEAD

$5.49

$

Usually ships in 3-6 days

0

48:10

Toro 121-4190

GASKET-VALVE COVER

$4.49

$

In Stock, only 3 left!

0

48:11

Toro 121-0034

GASKET-EXHAUST

$2.99

$

Usually ships in 3-6 days

0

49

Toro 136-7915

COMPLETE HEAD ASM

$190.99

$

Usually ships in 3-6 days

0

50

Toro 136-7907

CARB REPLACEMENT KIT

$102.99

$

In Stock, Qty 9

0

99

Toro 121-4242

HIGH ALTITUDE KIT

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0
