13AP60RP744 (LX 500) - Toro Lawn Tractor (SN: 1A096B50000 & Above) (2006) Deck Assembly Parts Diagram

Lawn Tractor

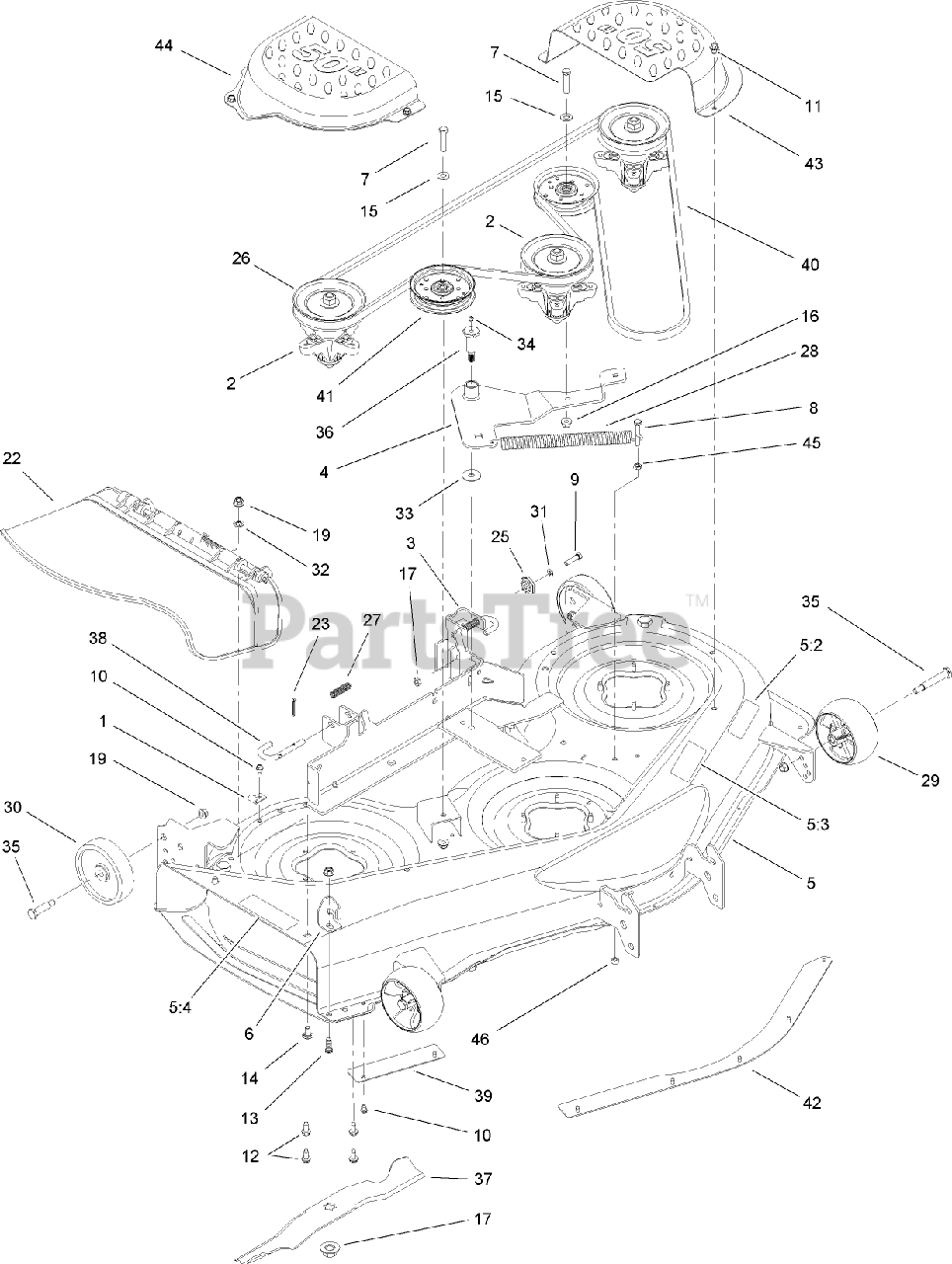

Deck Assembly Parts Diagram

  • Title

1

Toro 112-0378

BRACKET-RETAIN, HOOK

$

$

Not available

2

Toro 112-0370

SPINDLE ASM

$209.99

$

In Stock, only 3 left!

0

3

Toro 112-0413

LH HANGER BRACKET ASM

$89.99

$

In Stock, only 3 left!

0

4

Toro 112-0702

DISCONTINUED

$

$

Not available

5

Toro 112-5859

DECK AND DECAL ASM

$1924.99

$

Usually ships in 3-6 days

0

5:2

Toro 112-1268

DISCONTINUED

$

$

Not available

5:3

Toro 112-1273

DECAL-BELT ROUTING, DECK

$

$

Not available

5:4

Toro 112-1265

DECAL-DANGER

$

$

Not available

6

Toro 112-0854

STOP-CHUTE

$

$

Not available

7

Toro 112-0513

SCREW-HH

$8.49

$

In Stock, Qty 7

0

8

Toro 112-0472

SCREW-HH, TAP

$

$

Not available

9

Toro 112-0373

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

10

Toro 112-0524

SCREW-HWHTF

$8.49

$

Usually ships in 3-6 days

0

11

Toro 112-0472

SCREW-HH, TAP

$

$

Not available

12

Toro 112-0395

SCREW-HWH

$15.99

$

In Stock, Qty 15

0

13

Toro 112-0631

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

14

Toro 112-0452

BOLT-CARR

$8.49

$

Usually ships in 3-6 days

0

15

Toro 112-0572

WASHER-FLAT

$

$

Not available

16

Toro 112-0668

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

17

Toro 112-0330

NUT-LOCK, FLANGE

$12.99

$

In Stock, only 2 left!

0

19

Toro 112-0385

NUT-LOCK, FLANGE

$8.49

$

Usually ships in 3-6 days

0

22

Toro 112-0533

CHUTE ASM

$234.99

$

Usually ships in 3-6 days

0

23

Toro 112-0412

PIN-COTTER

$8.49

$

Usually ships in 3-6 days

0

25

Toro 112-0327

GEAR-ADJUSTMENT, DECK

$28.99

$

In Stock, only 1 left!

0

26

Toro 112-0505

PULLEY-DECK

$80.99

$

Usually ships in 3-6 days

0

27

Toro 112-0406

SPRING-COMPRESSION

$14.99

$

In Stock, only 2 left!

0

28

Toro 112-0349

SPRING

$40.99

$

In Stock, only 4 left!

0

29

Toro 112-0677

WHEEL-DECK, FRONT

$31.99

$

Usually ships in 3-6 days

0

30

Toro 112-0337

WHEEL-DECK, REAR

$19.99

$

In Stock, only 2 left!

0

31

Toro 112-0366

WASHER-LOCK

$

$

Not available

32

Toro 112-0623

RETAINER-BOLT

$

$

Not available

33

Toro 112-0564

WASHER-FLAT

$7.49

$

In Stock, Qty 6

0

34

Toro 112-0926

FITTING-GREASE

$8.49

$

Usually ships in 3-6 days

0

35

Toro 112-0334

BOLT-SHOULDER

$16.99

$

In Stock, Qty 8

0

36

Toro 112-5836

See Supercession: 112-6184
(Superseded to 112-6184)

$49.99

$

Usually ships in 3-6 days

0

37

Toro 112-0316

BLADE-17.90 INCH

$30.99

$

In Stock, Qty 20+

0

38

Toro 112-0436

PIN-HANDLE, DECK RELEASE

$25.99

$

In Stock, only 2 left!

0

39

Toro 112-0612

SKIRT-RH

$45.99

$

Usually ships in 3-6 days

0

40

Toro 112-0332

BELT-V, TYPE B

$184.99

$

In Stock, only 1 left!

0

41

Toro 112-0314

PULLEY-IDLER

$68.99

$

In Stock, Qty 6

0

42

Toro 112-5837

SKIRT-CENTER

$

$

Not available

43

Toro 112-0614

COVER-BELT, LH

$

$

Not available

44

Toro 112-0618

COVER-BELT, RH

$

$

Not available

45

Toro 112-0437

NUT-HEX

$7.49

$

Usually ships in 3-6 days

0

46

Toro 112-0650

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0
