13AP61RH848 (LX 468) - Toro Lawn Tractor (2009) 46 Inch Deck Assembly Parts Diagram

Lawn Tractor

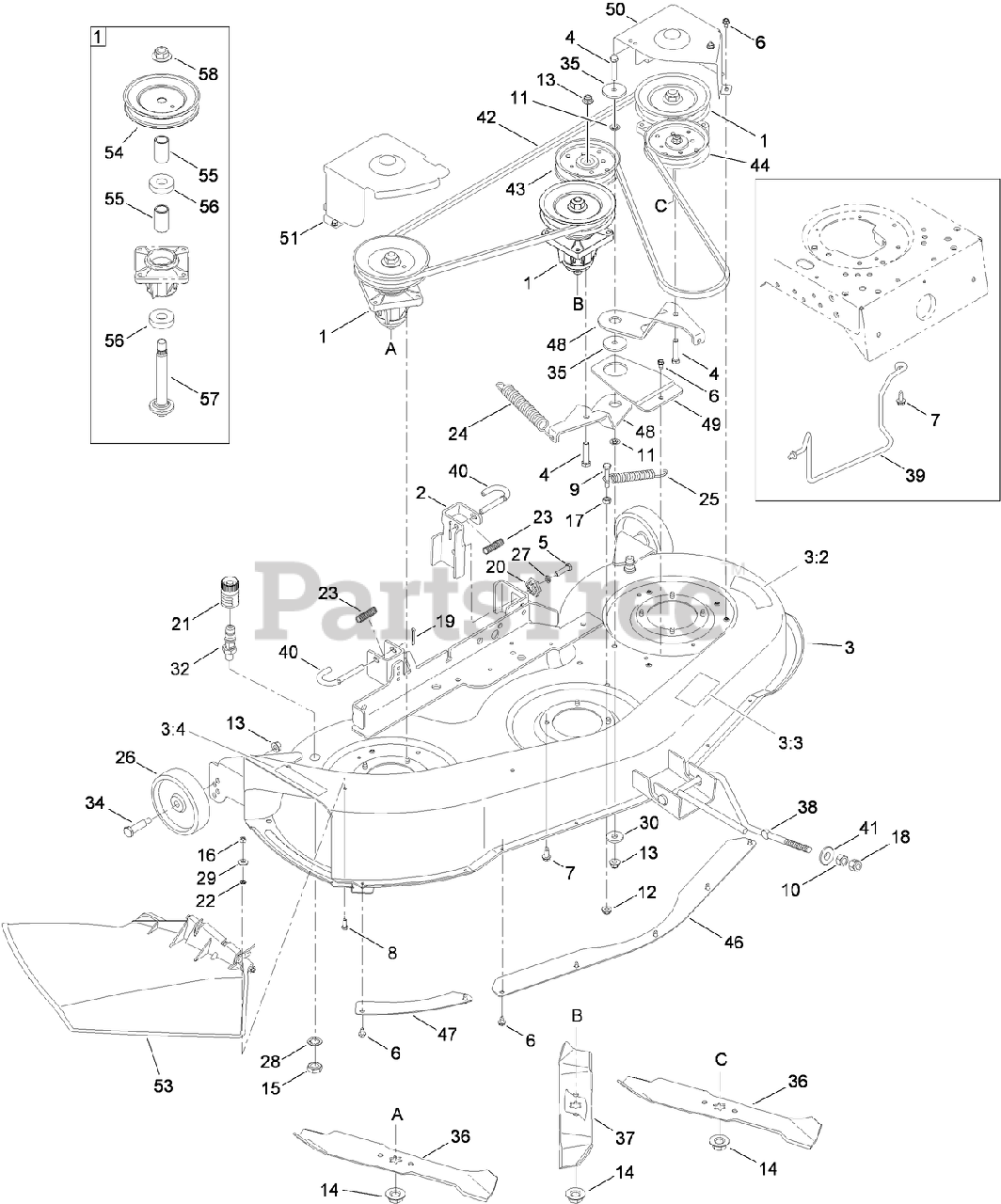

46 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 112-6276

SPINDLE ASM

$469.99

$

In Stock, only 1 left!

0

2

Toro 112-0413

LH HANGER BRACKET ASM

$89.99

$

In Stock, only 3 left!

0

3

Toro 112-6296

DECK ASM (WITH DECALS)

$1175.99

$

Usually ships in 3-6 days

0

3:2

Toro 112-6284

DECAL-DECK

$

$

Not available

3:3

Toro 112-6178

DECAL-BELT ROUTING

$

$

Not available

3:4

Toro 112-6285

DECAL-CHUTE

$

$

Not available

4

Toro 112-0513

SCREW-HH

$8.49

$

In Stock, Qty 7

0

5

Toro 112-0373

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

6

Toro 112-0524

SCREW-HWHTF

$8.49

$

Usually ships in 3-6 days

0

7

Toro 112-0395

SCREW-HWH

$15.99

$

In Stock, Qty 15

0

8

Toro 112-0499

SCREW-HH

$

$

Not available

9

Toro 112-0590

SCREW-HH

$

$

Not available

10

Toro 112-0458

NUT-HEX

$

$

Not available

11

Toro 112-0440

NUT-PUSH

$6.49

$

Usually ships in 3-6 days

0

12

Toro 112-0650

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

13

Toro 112-0668

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

14

Toro 112-0330

NUT-LOCK, FLANGE

$12.99

$

In Stock, only 2 left!

0

15

Toro 112-0351

NUT-HEX

$11.99

$

Usually ships in 3-6 days

0

16

Toro 112-0522

NUT-HEX

$

$

Not available

17

Toro 112-0437

NUT-HEX

$7.49

$

Usually ships in 3-6 days

0

18

Toro 112-0476

NUT-LOCK, HEX (NYLON)

$8.49

$

Usually ships in 3-6 days

0

19

Toro 112-0568

PIN-COTTER

$8.49

$

Usually ships in 3-6 days

0

20

Toro 112-0327

GEAR-ADJUSTMENT, DECK

$28.99

$

In Stock, only 1 left!

0

21

Toro 112-0916

ADAPTER-NOZZLE, WATER

$50.99

$

Usually ships in 3-6 days

0

22

Toro 112-0623

RETAINER-BOLT

$

$

Not available

23

Toro 112-0406

SPRING-COMPRESSION

$14.99

$

In Stock, only 2 left!

0

24

Toro 112-0324

SPRING-EXTENSION

$37.99

$

In Stock, only 2 left!

0

25

Toro 112-6169

SPRING-EXTENSION

$20.99

$

Usually ships in 3-6 days

0

26

Toro 112-0337

WHEEL-DECK, REAR

$19.99

$

In Stock, only 2 left!

0

27

Toro 112-0366

WASHER-LOCK

$

$

Not available

28

Toro 112-0643

WASHER-LOCK

$7.49

$

In Stock, only 1 left!

0

29

Toro 112-0485

WASHER-SPRING

$8.49

$

In Stock, only 1 left!

0

30

Toro 112-0380

WASHER-FLAT

$18.99

$

Usually ships in 3-6 days

0

32

Toro 112-6274

NOZZLE-WATER, DECK

$

$

Not available

34

Toro 112-0334

BOLT-SHOULDER

$16.99

$

In Stock, Qty 8

0

35

Toro 112-0584

SPACER-SHOULDER

$47.99

$

In Stock, only 3 left!

0

36

Toro 112-0304

BLADE-16.28 INCH

$53.99

$

In Stock, Qty 7

0

37

Toro 112-0302

BLADE-14.88 INCH

$31.99

$

In Stock, Qty 20+

0

38

Toro 112-6155

ROD-DECK

$

$

Not available

39

Toro 112-6170

ROD-KEEPER, BELT

$53.99

$

Usually ships in 3-6 days

0

40

Toro 112-0436

PIN-HANDLE, DECK RELEASE

$25.99

$

In Stock, only 2 left!

0

41

Toro 112-0641

CUP-PIVOT, LIFT

$9.99

$

Usually ships in 3-6 days

0

42

Toro 112-6171

BELT-TYPE A

$174.99

$

Usually ships in 3-6 days

0

43

Toro 112-6277

See Supercession: 112-0314
(Superseded to 112-0314)

$68.99

$

In Stock, Qty 6

0

44

Toro 112-0303

PULLEY-IDLER, 3.50 INCH

$84.99

$

Usually ships in 3-6 days

0

46

Toro 112-0464

SKIRT-CENTER, DECK

$117.99

$

Usually ships in 3-6 days

0

47

Toro 112-0400

SKIRT-RH, DECK

$

$

Not available

48

Toro 112-6172

BRACKET-IDLER

$

$

Not available

49

Toro 112-6173

BRACKET-SUPPORT

$

$

Not available

50

Toro 112-6174

COVER-BELT

$94.99

$

Usually ships in 3-6 days

0

51

Toro 112-6175

COVER-BELT

$

$

Not available

53

Toro 112-6255

DISCONTINUED

$

$

Not available

54

Toro 112-0382

PULLEY-DECK

$82.99

$

In Stock, only 2 left!

0

55

Toro 112-6252

SPACER

$10.99

$

Usually ships in 3-6 days

0

56

Toro 112-0377

BEARING-BALL

$37.99

$

Usually ships in 3-6 days

0

57

Toro 112-6278

SHAFT-SPINDLE

$87.99

$

Usually ships in 3-6 days

0

58

Toro 112-0330

NUT-LOCK, FLANGE

$12.99

$

In Stock, only 2 left!

0
