13AP62RP544 (SL 500) - Toro Super Lawn Tractor (SN: 1B157H20701 & Above) (2007) Transmission, Belt and Pulley Assembly Parts Diagram

Super Lawn Tractor

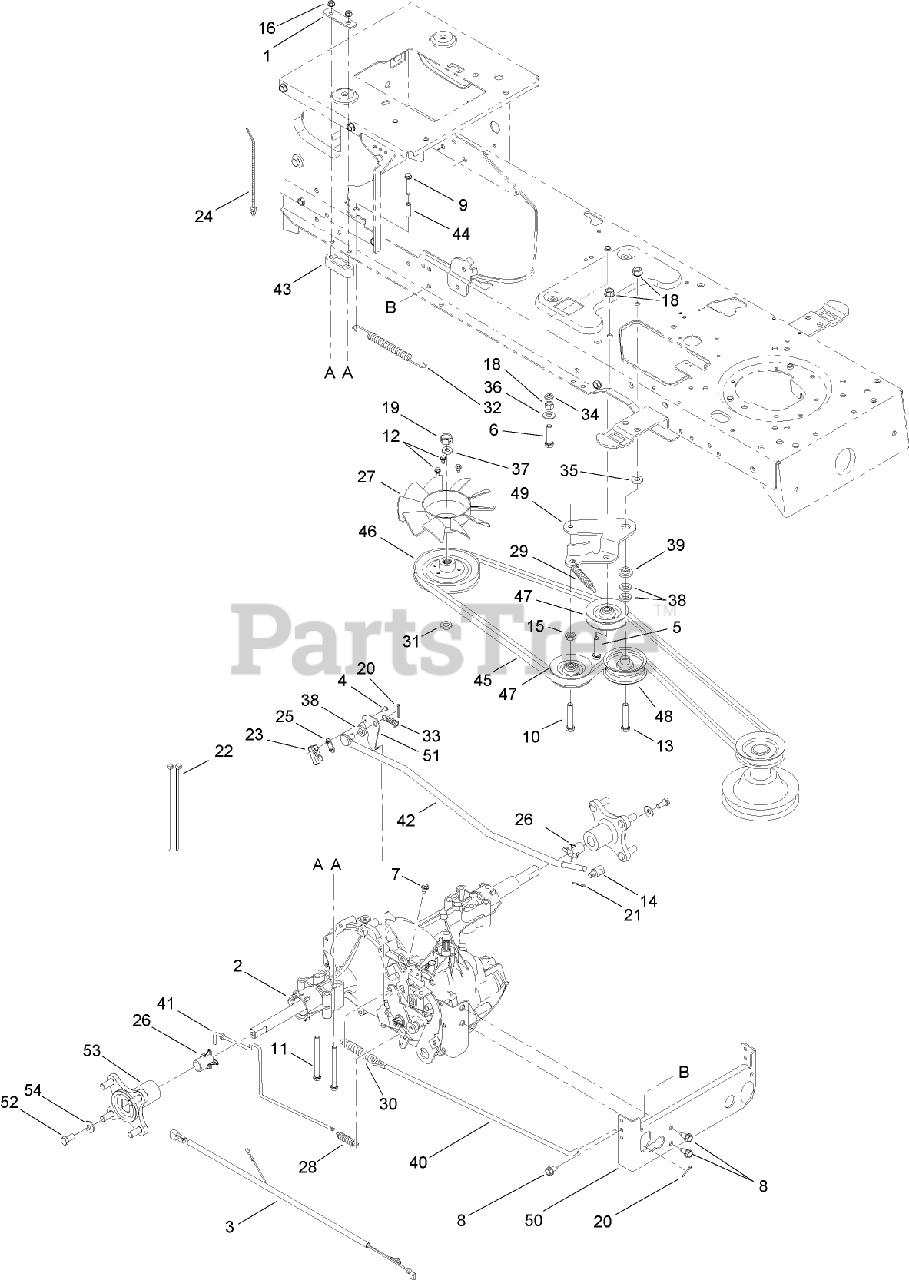

Transmission, Belt and Pulley Assembly Parts Diagram

  • Title

1

Toro 112-0628

BRACKET-MOUNTING, TRANSMISSION

$

$

Not available

2

Toro 112-6054

TRANSMISSION-HYDRO

$2972.99

$

Usually ships in 3-6 days

0

3

Toro 112-6020

HARNESS ASM

$

$

Not available

4

Toro 112-0626

SCREW-HWHTF

$8.49

$

In Stock, only 3 left!

0

5

Toro 112-6021

SCREW-HHFTF

$

$

Not available

6

Toro 112-0578

SCREW-HH

$8.49

$

In Stock, only 3 left!

0

7

Toro 112-6022

SCREW-TAP

$

$

Not available

8

Toro 112-0472

SCREW-HH, TAP

$

$

Not available

9

Toro 112-0843

SCREW-HWH

$8.49

$

Usually ships in 3-6 days

0

10

Toro 112-0469

SCREW-TAP

$

$

Not available

11

Toro 112-0667

SCREW-HH

$

$

Not available

12

Toro 112-6023

SCREW-HH, TAP

$

$

Not available

13

Toro 112-0700

See Supercession: 112-6009
(Superseded to 112-6009)

$15.99

$

Usually ships in 3-6 days

0

14

Toro 112-0908

FERRULE

$

$

Not available

15

Toro 112-0493

NUT-JAM

$8.49

$

In Stock, only 4 left!

0

16

Toro 112-0650

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

18

Toro 112-0910

NUT-HEX

$

$

Not available

19

Toro 112-6024

NUT-HEX

$

$

Not available

20

Toro 112-0568

PIN-COTTER

$8.49

$

Usually ships in 3-6 days

0

21

Toro 112-0354

PIN-COTTER

$

$

Not available

22

Toro 112-0527

TIE-CABLE

$

$

Not available

23

Toro 112-0602

SWITCH-SPRING, SHORT

$15.99

$

Usually ships in 3-6 days

0

24

Toro 112-0866

TIE-CABLE

$

$

Not available

25

Toro 112-0625

PLATE-INSULATOR

$

$

Not available

26

Toro 112-6055

SLEEVE

$

$

Not available

27

Toro 112-6026

FAN-BLADE, 10

$68.99

$

Usually ships in 3-6 days

0

28

Toro 112-6027

SPRING-EXTENSION

$

$

Not available

29

Toro 112-0873

SPRING-EXTENSION

$21.99

$

Usually ships in 3-6 days

0

30

Toro 112-0350

SPRING-EXTENSION

$25.99

$

Usually ships in 3-6 days

0

31

Toro 112-6028

RING-WIRE

$

$

Not available

32

Toro 112-6029

SPRING-EXTENSION

$

$

Not available

33

Toro 112-0875

SPRING-EXTENSION

$18.99

$

Usually ships in 3-6 days

0

34

Toro 112-0415

WASHER-LOCK

$

$

Not available

35

Toro 112-0920

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

36

Toro 112-0572

WASHER-FLAT

$

$

Not available

37

Toro 112-0923

WASHER-LOCK

$5.49

$

Usually ships in 3-6 days

0

38

Toro 112-0544

WASHER-FLAT

$8.49

$

In Stock, Qty 6

0

39

Toro 112-0345

SPACER-SHOULDER

$18.99

$

Usually ships in 3-6 days

0

40

Toro 112-6030

ROD-BRAKE

$

$

Not available

41

Toro 112-6031

ROD-HYDRO

$

$

Not available

42

Toro 112-6032

ROD-CONTROL

$

$

Not available

43

Toro 112-0673

SPACER-TRANSAXLE

$

$

Not available

44

Toro 112-0644

SPACER

$

$

Not available

45

Toro 112-5951

BELT-V, TYPE

$147.99

$

In Stock, only 1 left!

0

46

Toro 112-6033

PULLEY-INPUT

$

$

Not available

47

Toro 112-0892

See Supercession: 112-6133
(Superseded to 112-6133)

$49.99

$

In Stock, Qty 5

0

48

Toro 112-0313

PULLEY-IDLER, FLAT

$60.99

$

Usually ships in 3-6 days

0

49

Toro 112-0525

BRACKET-IDLER, CENTER DOUBLE

$64.99

$

In Stock, only 2 left!

0

50

Toro 112-6034

BRACKET-TORQ, TRANSMISSION

$

$

Not available

51

Toro 112-6035

BRACKET-ACTUATOR

$

$

Not available

52

Toro 112-0551

SCREW-HH

$8.49

$

In Stock, Qty 6

0

53

Toro 112-6056

HUB ASM

$

$

Not available

54

Toro 112-0435

WASHER-BELL

$

$

Not available
