13AT61RH544 (LX 466) - Toro Lawn Tractor (2008) 46 Inch Deck Assembly Parts Diagram

Lawn Tractor

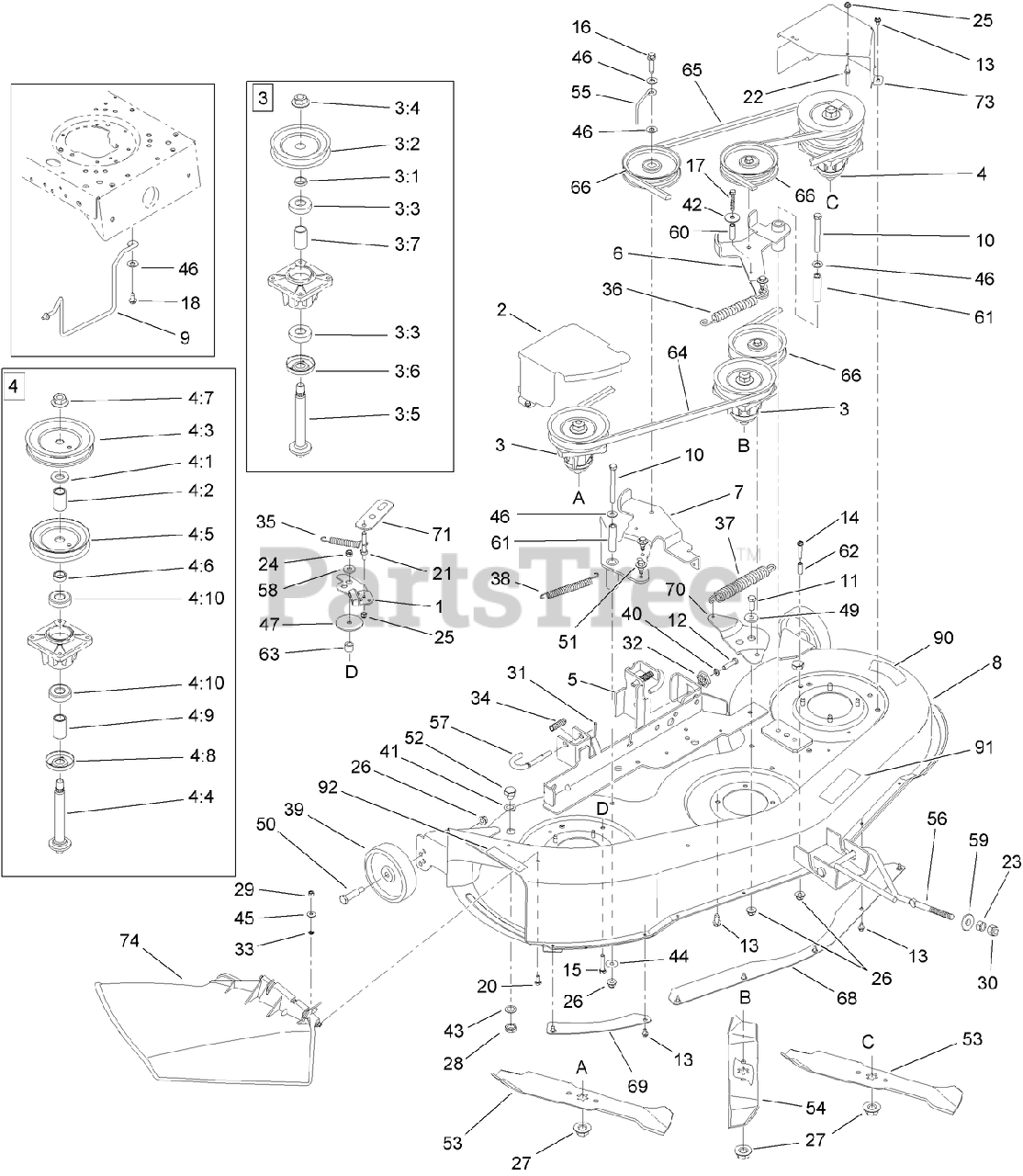

46 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 112-0326

DECK BRAKE BRACKET ASM

$

$

Not available

2

Toro 112-0401

COVER-BELT, RH

$96.99

$

Usually ships in 3-6 days

0

3

Toro 112-0311

SPINDLE ASM

$227.99

$

Usually ships in 3-6 days

0

3:1

Toro 112-0600

SPACER

$8.49

$

Usually ships in 3-6 days

0

3:2

Toro 112-0358

PULLEY-DECK

$80.99

$

Usually ships in 3-6 days

0

3:3

Toro 112-0377

BEARING-BALL

$37.99

$

Usually ships in 3-6 days

0

3:4

Toro 112-0330

NUT-LOCK, FLANGE

$12.99

$

In Stock, only 2 left!

0

3:5

Toro 112-5922

SHAFT-SPINDLE

$

$

Not available

3:6

Toro 112-5923

BEARING-SHOULDER

$

$

Not available

3:7

Toro 112-0654

SPACER

$

$

Not available

4

Toro 112-0383

DOUBLE PULLEY SPINDLE ASM

$369.99

$

In Stock, only 1 left!

0

4:1

Toro 112-0921

WASHER-FLAT

$7.49

$

Usually ships in 3-6 days

0

4:2

Toro 112-5927

SPACER

$

$

Not available

4:3

Toro 112-0382

PULLEY-DECK

$82.99

$

In Stock, only 2 left!

0

4:4

Toro 112-5928

SHAFT-SPINDLE

$90.99

$

Usually ships in 3-6 days

0

4:5

Toro 112-0359

PULLEY-DECK

$

$

Not available

4:6

Toro 112-5929

SPACER

$7.49

$

Usually ships in 3-6 days

0

4:7

Toro 112-0330

NUT-LOCK, FLANGE

$12.99

$

In Stock, only 2 left!

0

4:8

Toro 112-5923

BEARING-SHOULDER

$

$

Not available

4:9

Toro 112-0654

SPACER

$

$

Not available

4:10

Toro 112-0377

BEARING-BALL

$37.99

$

Usually ships in 3-6 days

0

5

Toro 112-0413

LH HANGER BRACKET ASM

$89.99

$

In Stock, only 3 left!

0

6

Toro 112-6060

LH IDLER ARM ASM

$87.99

$

Usually ships in 3-6 days

0

7

Toro 112-6059

BRACKET ASM

$96.99

$

In Stock, only 1 left!

0

8

Toro 112-6200

DISCONTINUED

$

$

Not available

9

Toro 112-6151

GUIDE-BELT, ENGINE

$40.99

$

Usually ships in 3-6 days

0

10

Toro 112-6081

BOLT

$14.99

$

In Stock, only 1 left!

0

11

Toro 112-0492

SCREW-HH

$7.99

$

In Stock, only 2 left!

0

12

Toro 112-0373

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

13

Toro 112-0524

SCREW-HWHTF

$8.49

$

Usually ships in 3-6 days

0

14

Toro 112-0843

SCREW-HWH

$8.49

$

Usually ships in 3-6 days

0

15

Toro 112-0594

SCREW-HH

$5.49

$

In Stock, Qty 16

0

16

Toro 112-0469

SCREW-TAP

$

$

Not available

17

Toro 112-5828

SCREW-HH

$9.99

$

In Stock, Qty 5

0

18

Toro 112-0395

SCREW-HWH

$15.99

$

In Stock, Qty 17

0

20

Toro 112-0499

SCREW-HH

$

$

Not available

21

Toro 112-6152

DISCONTINUED

$

$

Not available

22

Toro 112-0429

PIN-GUARD, BELT

$8.49

$

In Stock, only 1 left!

0

23

Toro 112-0458

NUT-HEX

$

$

Not available

24

Toro 112-0650

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

25

Toro 112-0636

NUT-LOCK, FLANGE

$8.49

$

In Stock, only 1 left!

0

26

Toro 112-0668

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

27

Toro 112-0330

NUT-LOCK, FLANGE

$12.99

$

In Stock, only 2 left!

0

28

Toro 112-0351

NUT-HEX

$11.99

$

Usually ships in 3-6 days

0

29

Toro 112-0522

NUT-HEX

$

$

Not available

30

Toro 112-0476

NUT-LOCK, HEX (NYLON)

$8.49

$

Usually ships in 3-6 days

0

31

Toro 112-0412

PIN-COTTER

$8.49

$

Usually ships in 3-6 days

0

32

Toro 112-0327

GEAR-ADJUSTMENT, DECK

$28.99

$

In Stock, only 1 left!

0

33

Toro 112-0623

RETAINER-BOLT

$

$

Not available

34

Toro 112-0406

SPRING-COMPRESSION

$14.99

$

In Stock, only 2 left!

0

35

Toro 112-0320

SPRING-EXTENSION

$18.99

$

In Stock, Qty 5

0

36

Toro 112-6078

SPRING-EXTENSION

$20.99

$

Usually ships in 3-6 days

0

37

Toro 112-0324

SPRING-EXTENSION

$37.99

$

In Stock, only 2 left!

0

38

Toro 112-6153

SPRING-EXTENSION

$16.99

$

In Stock, only 1 left!

0

39

Toro 112-0337

WHEEL-DECK, REAR

$19.99

$

In Stock, only 2 left!

0

40

Toro 112-0366

WASHER-LOCK

$

$

Not available

41

Toro 112-0339

WASHER-FLAT

$7.49

$

Usually ships in 3-6 days

0

42

Toro 112-6154

WASHER-FLAT

$

$

Not available

43

Toro 112-0643

WASHER-LOCK

$7.49

$

In Stock, only 1 left!

0

44

Toro 112-0920

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

45

Toro 112-0485

WASHER-SPRING

$8.49

$

In Stock, only 1 left!

0

46

Toro 112-0572

WASHER-FLAT

$

$

Not available

47

Toro 112-0560

WASHER-FLAT

$

$

Not available

49

Toro 112-0508

SPACER-SHOULDER

$14.99

$

In Stock, only 2 left!

0

50

Toro 112-0334

BOLT-SHOULDER

$16.99

$

In Stock, Qty 8

0

51

Toro 112-6128

BOLT-SHOULDER, TAP

$6.99

$

In Stock, Qty 12

0

52

Toro 112-0577

PLUG

$

$

Not available

53

Toro 112-0304

BLADE-16.28 INCH

$53.99

$

In Stock, Qty 7

0

54

Toro 112-0302

BLADE-14.88 INCH

$31.99

$

In Stock, Qty 20+

0

55

Toro 112-5879

ROD-KEEPER, BELT

$11.99

$

In Stock, only 1 left!

0

56

Toro 112-6155

ROD-DECK

$

$

Not available

57

Toro 112-0436

PIN-HANDLE, DECK RELEASE

$25.99

$

In Stock, only 2 left!

0

58

Toro 112-0410

SPACER-SHOULDER

$7.49

$

In Stock, Qty 7

0

59

Toro 112-0641

CUP-PIVOT, LIFT

$9.99

$

Usually ships in 3-6 days

0

60

Toro 112-5831

SPACER

$9.99

$

In Stock, only 4 left!

0

61

Toro 112-6082

SPACER

$20.99

$

In Stock, only 2 left!

0

62

Toro 112-0644

SPACER

$

$

Not available

63

Toro 112-0633

SPACER

$

$

Not available

64

Toro 112-0317

BELT

$42.99

$

In Stock, Qty 20+

0

65

Toro 112-5834

BELT-V

$63.99

$

In Stock, Qty 5

0

66

Toro 112-0314

PULLEY-IDLER

$68.99

$

In Stock, Qty 6

0

68

Toro 112-0464

SKIRT-CENTER, DECK

$117.99

$

Usually ships in 3-6 days

0

69

Toro 112-0400

SKIRT-RH, DECK

$

$

Not available

70

Toro 112-0666

BRACKET-IDLER

$40.99

$

Usually ships in 3-6 days

0

71

Toro 112-6156

BRACKET BRAKE

$

$

Not available

73

Toro 112-0431

COVER-BELT, LH

$

$

Not available

74

Toro 112-0353

DISCHARGE CHUTE ASM

$197.99

$

In Stock, only 1 left!

0

90

Toro 112-1267

DECAL-DANGER

$

$

Not available

91

Toro 112-1269

DECAL-ROUTING, BELT

$

$

Not available

92

Toro 112-1265

DECAL-DANGER

$

$

Not available
