13AT61RH544 (LX 466) - Toro Lawn Tractor (2008) Engine and Valve Gasket Sets Briggs and Stratton 407777-0550-B1 Parts Diagram

Lawn Tractor

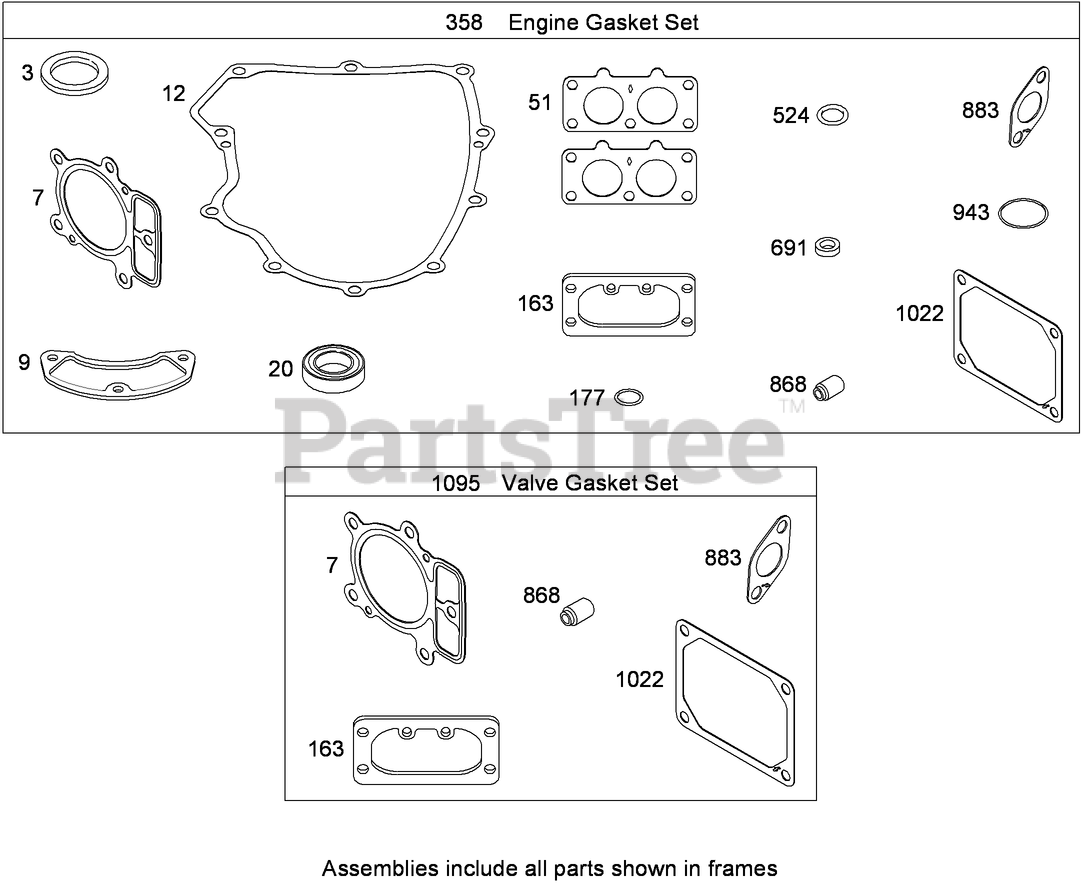

Engine and Valve Gasket Sets Briggs and Stratton 407777-0550-B1 Parts Diagram

  • Title

3

Toro 391086s

Seal-Oil (Magneto Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

3

Toro 391086s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

7

Toro 693997

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set (Ref. No. 358)

$39.99

$

Usually ships in 3-6 days

0

7

Toro 693997

Gasket-Head, Cylinder

Note: Included in Valve Gasket Set (Ref. No. 1095)

$39.99

$

Usually ships in 3-6 days

0

7

Toro 693997

Gasket-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$39.99

$

Usually ships in 3-6 days

0

9

Toro 690937

Gasket-Breather

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

9

Toro 690937

Gasket-Breather

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

12

Toro 697227

Gasket-Crankcase

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

12

Toro 697227

Gasket-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

20

Toro 795387

Seal-Oil (PTO Side)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

20

Toro 795387

Seal-Oil (PTO Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.99

$

In Stock, Qty 20+

0

51

Toro 791677

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

51

Toro 791677

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

163

Toro 691001

Gasket-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 3-6 days

0

163

Toro 691001

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.99

$

Usually ships in 3-6 days

0

163

Toro 691001

Gasket-Cleaner, Air

Note: Included in Valve Gasket Set (Ref. No. 1095)

$4.99

$

Usually ships in 3-6 days

0

177

Toro 691031

Seal-O Ring

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.49

$

Usually ships in 3-6 days

0

177

Toro 691031

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 3-6 days

0

358

Toro 694012

Engine Gasket Set

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

524

Toro 691032

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 3-6 days

0

524

Toro 691032

Seal-O Ring

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.49

$

Usually ships in 3-6 days

0

691

Toro 790574

Seal-Shaft, Governor

Note: Included in Engine Gasket Set (Ref. No. 358)

$6.49

$

In Stock, Qty 11

0

691

Toro 790574

Seal-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 11

0

868

Toro 690968

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

Usually ships in 3-6 days

0

868

Toro 690968

Seal-Valve

Note: Included in Valve Gasket Set (Ref. No. 1095)

$16.99

$

Usually ships in 3-6 days

0

868

Toro 690968

Seal-Valve

Note: Included in Engine Gasket Set (Ref. No. 358)

$16.99

$

Usually ships in 3-6 days

0

883

Toro 690970

Gasket-Exhaust

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

883

Toro 690970

Gasket-Exhaust

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

883

Toro 690970

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

943

Toro 690589

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

943

Toro 690589

Seal-O Ring

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

1022

Toro 690971

Gasket-Cover, Rocker

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

1022

Toro 690971

Gasket-Cover, Rocker

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

1022

Toro 690971

Gasket-Cover, Rocker

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1095

Toro 694013

Valve Gasket Set

Note: Obtain parts from www.briggsandstratton.com

$72.99

$

In Stock, only 2 left!

0
