13AT61RH544 (LX 466) - Toro Lawn Tractor (2008) Steering and Front Axle Assembly Parts Diagram

Lawn Tractor

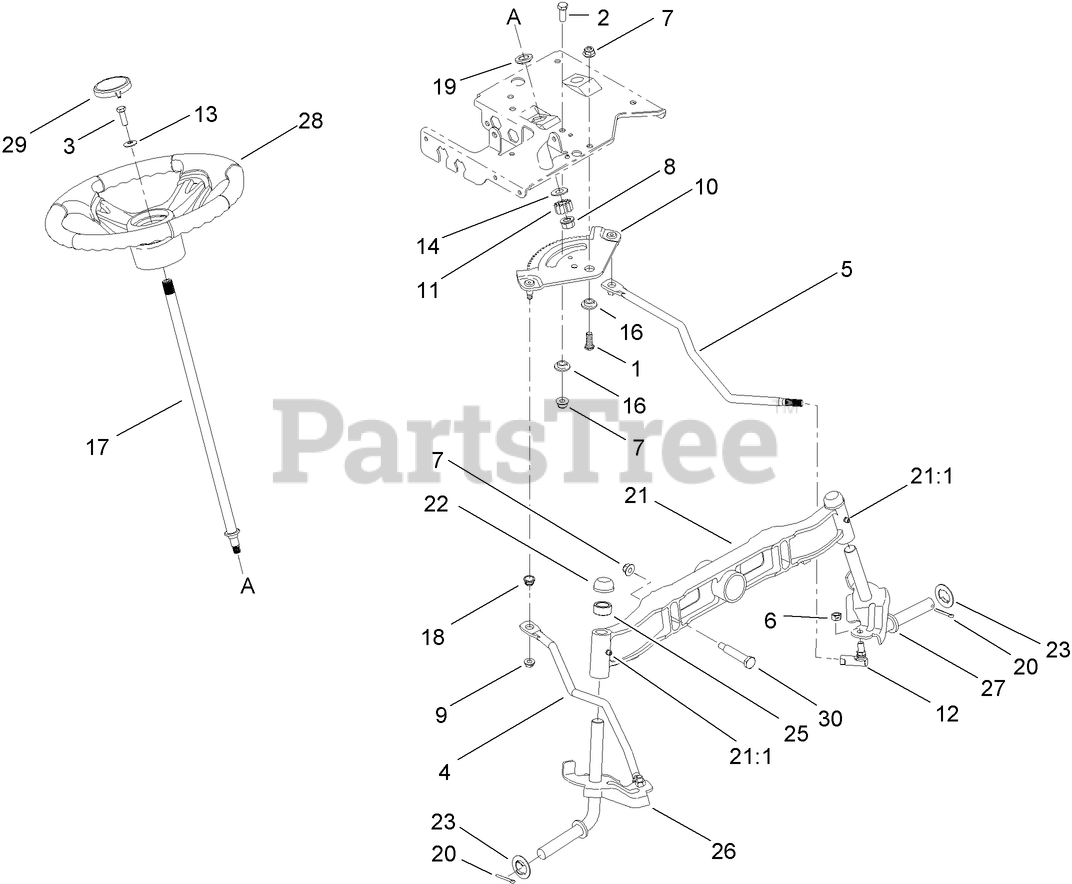

Steering and Front Axle Assembly Parts Diagram

  • Title

1

Toro 112-0631

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

2

Toro 112-0492

SCREW-HH

$7.99

$

In Stock, only 2 left!

0

3

Toro 112-0473

SCREW-HH

$

$

Not available

4

Toro 112-0355

LINK-DRAG, RH

$

$

Not available

5

Toro 112-0346

LINK-DRAG, LH

$

$

Not available

6

Toro 112-0483

NUT-HEX, LOCK

$

$

Not available

7

Toro 112-0668

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

8

Toro 112-0859

NUT-LOCK, FLANGE

$8.49

$

In Stock, Qty 6

0

9

Toro 112-0511

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 1 left!

0

10

Toro 112-0862

See Supercession: 119-3976
(Superseded to 119-3976)

$162.99

$

In Stock, only 2 left!

0

11

Toro 112-0863

GEAR-PINION, STEERING

$21.99

$

In Stock, Qty 20+

0

12

Toro 112-0917

BALL JOINT ASM

$43.99

$

In Stock, Qty 9

0

13

Toro 112-0924

WASHER-FLAT

$7.99

$

In Stock, only 1 left!

0

14

Toro 112-0925

WASHER-FLAT

$

$

Not available

16

Toro 112-0881

SPACER-SHOULDER

$10.99

$

In Stock, Qty 15

0

17

Toro 112-6097

SHAFT-STEERING

$137.99

$

In Stock, only 2 left!

0

18

Toro 112-0929

BUSHING

$8.49

$

In Stock, Qty 5

0

19

Toro 112-6098

BEARING-FLANGE, HEX

$12.99

$

In Stock, only 2 left!

0

20

Toro 112-0860

PIN-COTTER

$6.99

$

In Stock, Qty 7

0

21

Toro 112-6099

PIVOT-AXLE, CAST IRON

$

$

Not available

21:1

Toro 112-0926

FITTING-GREASE

$8.49

$

Usually ships in 3-6 days

0

22

Toro 112-0323

CAP

$8.49

$

In Stock, only 1 left!

0

23

Toro 112-5972

DISCONTINUED

$

$

Not available

25

Toro 112-6136

SPACER

$6.99

$

Usually ships in 3-6 days

0

26

Toro 112-6015

RH AXLE ASM

$

$

Not available

27

Toro 112-6016

LH AXLE ASM

$

$

Not available

28

Toro 112-6100

3 SPOKE WHEEL STEERING ASM

$111.99

$

In Stock, only 1 left!

0

29

Toro 112-3734

CAP-WHEEL, STEERING

$6.99

$

Usually ships in 3-6 days

0

30

Toro 112-0699

BOLT-SHOULDER

$

$

Not available
