13BX60RG544 (LX 425) - Toro Lawn Tractor (SN: 1E237H10145 & Above) (2007) Deck Assembly Parts Diagram

Lawn Tractor

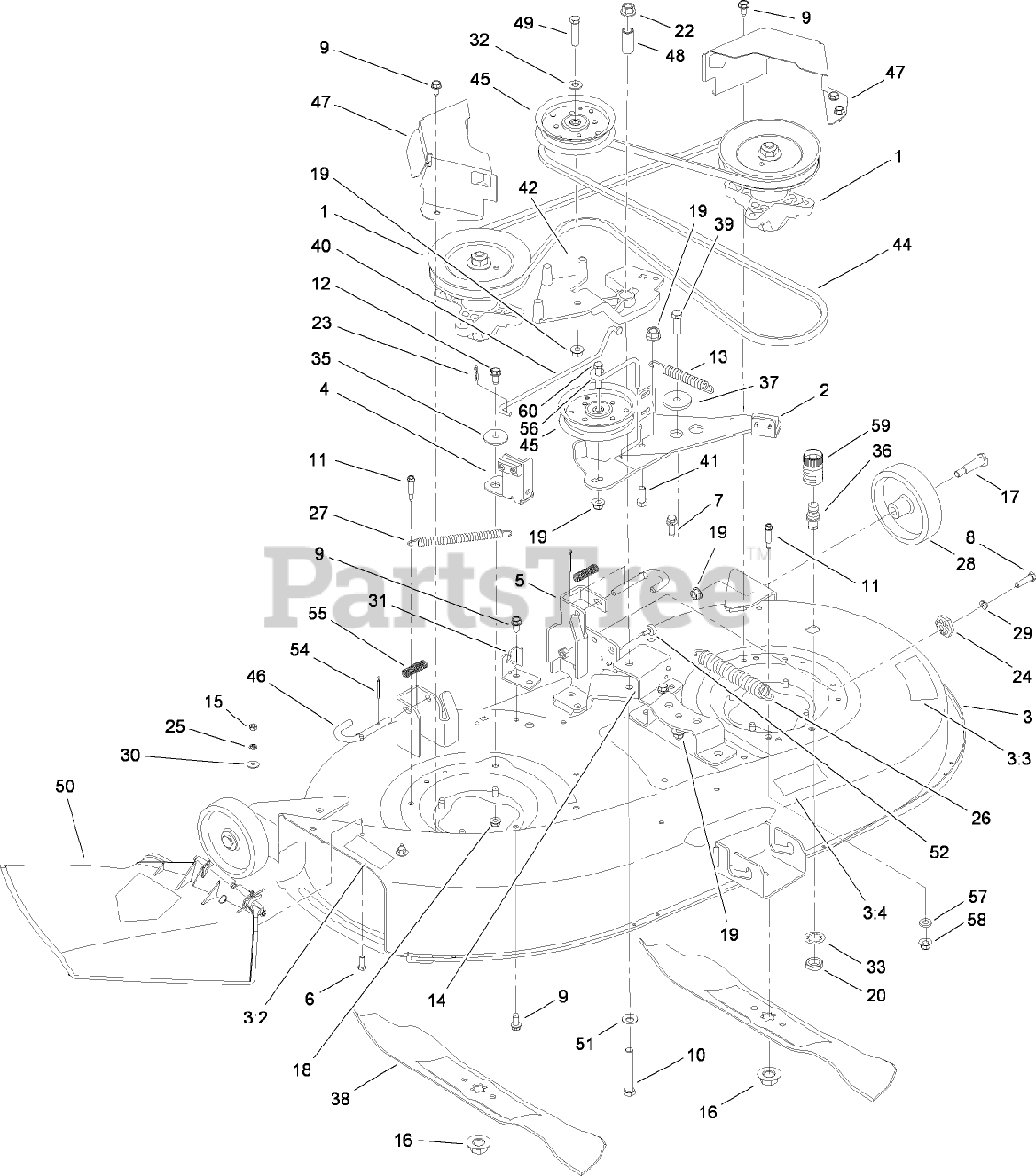

Deck Assembly Parts Diagram

  • Title

1

Toro 112-6063

SPINDLE ASM

$239.99

$

In Stock, only 2 left!

0

2

Toro 112-0606

DECK BRAKE ASM

$

$

Not available

3

Toro 112-5857

DECK AND DECAL ASM

$

$

Not available

3:2

Toro 112-1267

DECAL-DANGER

$

$

Not available

3:3

Toro 112-1265

DECAL-DANGER

$

$

Not available

3:4

Toro 112-1270

DECAL-ROUTING, BELT

$

$

Not available

4

Toro 112-3742

BRAKE ASM

$98.99

$

Usually ships in 3-6 days

0

5

Toro 112-0413

LH HANGER BRACKET ASM

$89.99

$

In Stock, only 3 left!

0

6

Toro 112-0499

SCREW-HH

$

$

Not available

7

Toro 112-0906

SCREW-HWHTF

$

$

Not available

8

Toro 112-0373

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

9

Toro 112-6070

SCREW-TAP

$7.49

$

In Stock, only 2 left!

0

10

Toro 112-3745

SCREW-HH

$19.99

$

Usually ships in 3-6 days

0

11

Toro 112-0843

SCREW-HWH

$8.49

$

Usually ships in 3-6 days

0

12

Toro 112-1090

SCREW-HH

$

$

Not available

13

Toro 112-3746

SPRING-EXTENSION

$19.99

$

In Stock, only 2 left!

0

14

Toro 112-6066

SUPPORT-BRACKET, PIVOT

$

$

Not available

15

Toro 112-0522

NUT-HEX

$

$

Not available

16

Toro 112-0330

NUT-LOCK, FLANGE

$12.99

$

In Stock, only 2 left!

0

17

Toro 112-0334

BOLT-SHOULDER

$16.99

$

In Stock, Qty 8

0

18

Toro 112-0650

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

19

Toro 112-0668

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

20

Toro 112-0351

NUT-HEX

$11.99

$

Usually ships in 3-6 days

0

22

Toro 112-0859

NUT-LOCK, FLANGE

$8.49

$

In Stock, Qty 6

0

23

Toro 112-0459

PIN-COTTER

$

$

Not available

24

Toro 112-0327

GEAR-ADJUSTMENT, DECK

$28.99

$

In Stock, only 1 left!

0

25

Toro 112-0623

RETAINER-BOLT

$

$

Not available

26

Toro 112-6043

SPRING-EXTENSION

$34.99

$

Usually ships in 3-6 days

0

27

Toro 112-0528

SPRING-EXTENSION

$29.99

$

In Stock, only 1 left!

0

28

Toro 112-0337

WHEEL-DECK, REAR

$19.99

$

In Stock, only 2 left!

0

29

Toro 112-0366

WASHER-LOCK

$

$

Not available

30

Toro 112-0485

WASHER-SPRING

$8.49

$

In Stock, only 1 left!

0

31

Toro 112-0718

See Supercession: 119-8462
(Superseded to 119-8462)

$

$

Not available

32

Toro 112-0572

WASHER-FLAT

$

$

Not available

33

Toro 112-0643

WASHER-LOCK

$7.49

$

In Stock, only 1 left!

0

35

Toro 112-3747

SPACER-SHOULDER

$8.49

$

Usually ships in 3-6 days

0

36

Toro 112-0879

NOZZLE-WATER, DECK

$

$

Not available

37

Toro 112-0584

SPACER-SHOULDER

$47.99

$

In Stock, only 3 left!

0

38

Toro 112-0315

BLADE

$33.99

$

In Stock, Qty 20+

0

39

Toro 112-0557

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

40

Toro 112-3748

ROD-BRAKE

$37.99

$

In Stock, only 1 left!

0

41

Toro 112-0855

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

42

Toro 112-6069

BRACKET-IDLER

$128.99

$

Usually ships in 3-6 days

0

44

Toro 112-5800

BELT-V TYPE

$91.99

$

In Stock, only 4 left!

0

45

Toro 112-0314

PULLEY-IDLER

$68.99

$

In Stock, Qty 6

0

46

Toro 112-0436

PIN-HANDLE, DECK RELEASE

$25.99

$

In Stock, only 2 left!

0

47

Toro 112-6067

COVER-BELT

$44.99

$

In Stock, only 1 left!

0

48

Toro 112-3749

SPACER

$20.99

$

Usually ships in 3-6 days

0

49

Toro 112-0513

SCREW-HH

$8.49

$

In Stock, Qty 7

0

50

Toro 112-0353

DISCHARGE CHUTE ASM

$197.99

$

In Stock, only 1 left!

0

51

Toro 112-0380

WASHER-FLAT

$18.99

$

Usually ships in 3-6 days

0

52

Toro 112-1016

BUMPER

$12.99

$

Usually ships in 3-6 days

0

54

Toro 112-0412

PIN-COTTER

$8.49

$

Usually ships in 3-6 days

0

55

Toro 112-0406

SPRING-COMPRESSION

$14.99

$

In Stock, only 2 left!

0

56

Toro 112-5879

ROD-KEEPER, BELT

$11.99

$

In Stock, only 1 left!

0

57

Toro 112-5919

WASHER-FLAT

$10.99

$

Usually ships in 3-6 days

0

58

Toro 112-0636

NUT-LOCK, FLANGE

$8.49

$

In Stock, only 1 left!

0

59

Toro 112-0916

ADAPTER-NOZZLE, WATER

$50.99

$

Usually ships in 3-6 days

0

60

Toro 112-0421

SCREW-HH

$

$

Not available
