13RT61RH044 (LX 466) - Toro Lawn Tractor (SN: 1L137H10100 & Above) (2008) Cylinder Head Assembly Briggs and Stratton 407777-0550-E1 Parts Diagram

Lawn Tractor

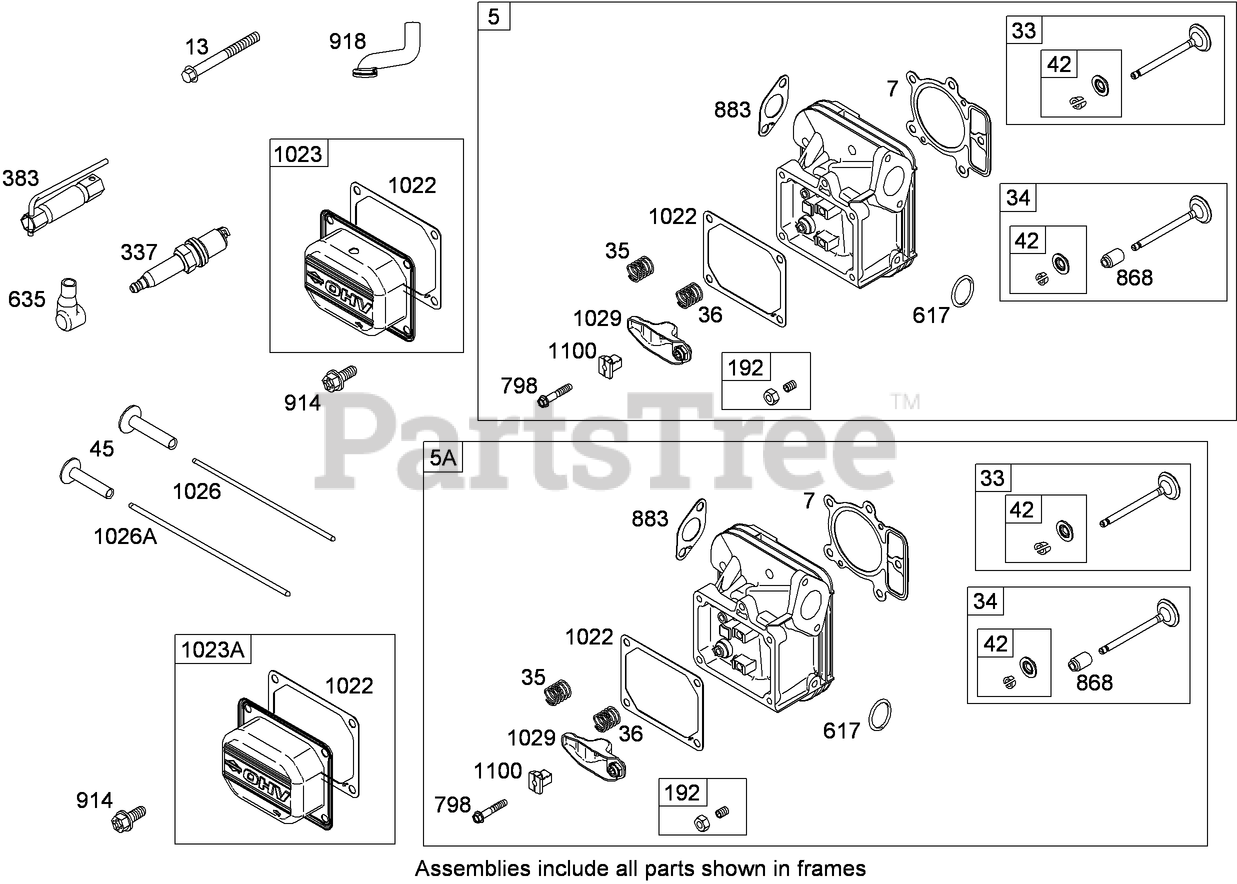

Cylinder Head Assembly Briggs and Stratton 407777-0550-E1 Parts Diagram

  • Title

5

Toro 792299

Head-Cylinder

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

5A

Toro 792300

Head-Cylinder (Cylinder Head No.2)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

7

Toro 693997

Gasket-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$39.99

$

Usually ships in 3-6 days

0

7

Toro 693997

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set (Ref. No. 358)

$39.99

$

Usually ships in 3-6 days

0

7

Toro 693997

Gasket-Head, Cylinder

Note: Included in Valve Gasket Set (Ref. No. 1095)

$39.99

$

Usually ships in 3-6 days

0

13

Toro 791130

Screw (Cylinder Head)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

33

Toro 499596

Valve-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

34

Toro 792200

Valve-Intake

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

35

Toro 694865

Spring-Valve (Intake)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 3-6 days

0

36

Toro 694865

Spring-Valve (Intake)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 3-6 days

0

42

Toro 499586

Keeper-Valve

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

45

Toro 690977

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 3-6 days

0

192

Toro 690083

Adjuster-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 3-6 days

0

337

Toro 491055s

Plug-Spark

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

383

Toro 19374s

Wrench-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

617

Toro 697891

Seal-O Ring (Intake Manifold) (Red)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

635

Toro 66538s

Boot-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

798

Toro 697890

Screw (Rocker Arm)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 3-6 days

0

868

Toro 690968

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

Usually ships in 3-6 days

0

868

Toro 690968

Seal-Valve

Note: Included in Engine Gasket Set (Ref. No. 358)

$16.99

$

Usually ships in 3-6 days

0

868

Toro 690968

Seal-Valve

Note: Included in Valve Gasket Set (Ref. No. 1095)

$16.99

$

Usually ships in 3-6 days

0

883

Toro 690970

Gasket-Exhaust

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

883

Toro 690970

Gasket-Exhaust

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

883

Toro 690970

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

914

Toro 691127

Screw (Rocker Cover)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

918

Toro 793147

Hose-Vacuum

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1022

Toro 690971

Gasket-Cover, Rocker

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1022

Toro 690971

Gasket-Cover, Rocker

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

1022

Toro 690971

Gasket-Cover, Rocker

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

1023

Toro 499600

Cover-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

Usually ships in 3-6 days

0

1023A

Toro 793146

Cover-Arm, Rocker (Cylinder No.1)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1026

Toro 690981

Rod-Push (Steel)
(Superseded to 597785)

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 20+

0

1026A

Toro 690982

Rod-Push (Aluminum)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

Usually ships in 3-6 days

0

1029

Toro 690972

Arm-Rocker

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

Usually ships in 3-6 days

0

1100

Toro 791959

Pivot-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 3-6 days

0
