1400 - Lawn-Boy 15" String Trimmer (SN: 500000001 - 599999999) (1985) Engine Model 1400 Parts Diagram

15" String Trimmer

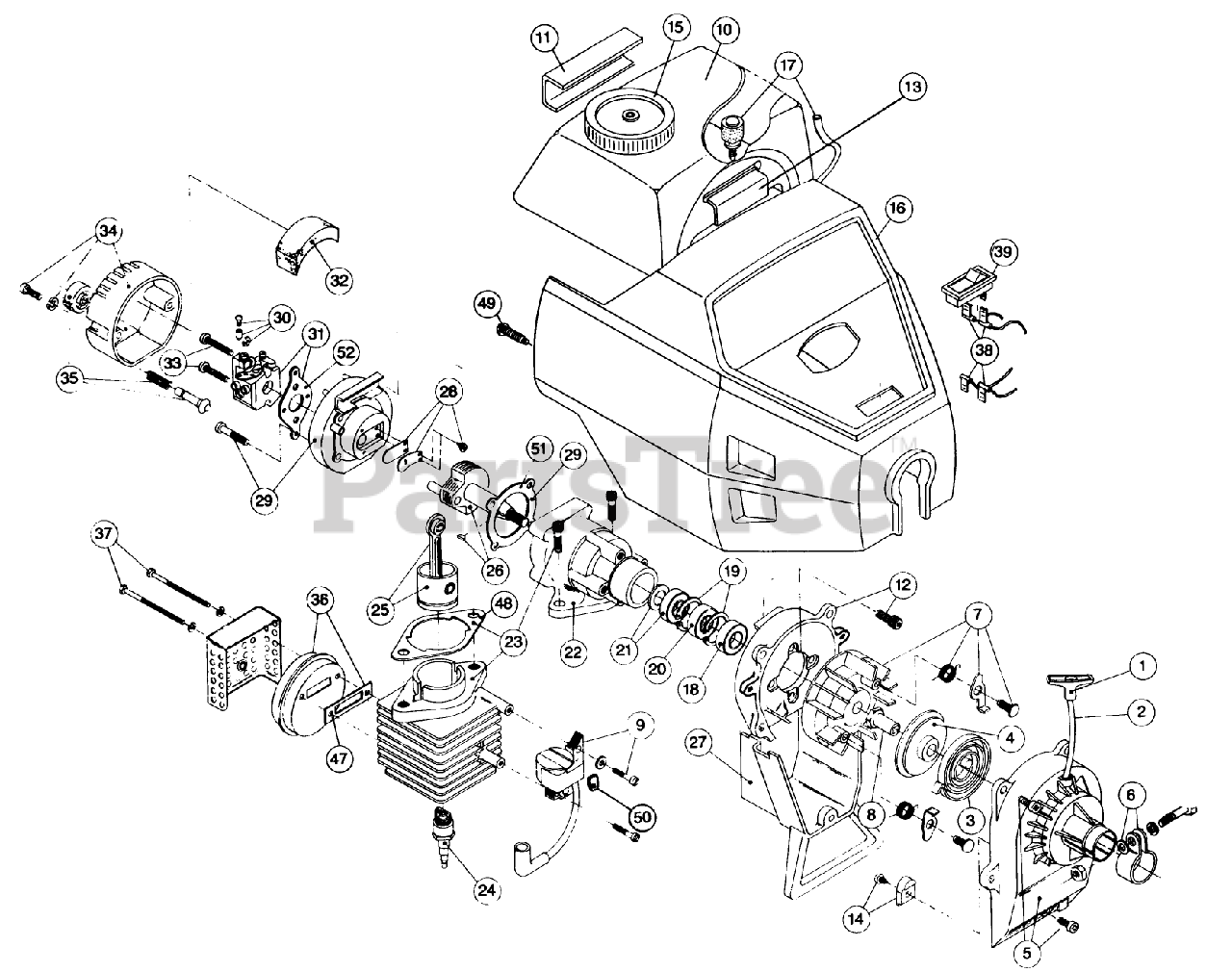

Engine Model 1400 Parts Diagram

  • Title

1

Lawn-Boy 610300

See Supercession: 181079
(Superseded to 181079)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

2

Lawn-Boy 610301

DISCONTINUED
(Superseded to 613103)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

3

Lawn-Boy 610302

See Supercession: 613102
(Superseded to 613102)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

4

Lawn-Boy 682030

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

5

Lawn-Boy 683064

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

6

Lawn-Boy 682032

See Supercession: 153597
(Superseded to 153597)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

7

Lawn-Boy 682307

See Supercession: 180929
(Superseded to 180929)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

8

Lawn-Boy 610303

SQUARE DRIVE NUT

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

9

Lawn-Boy 682498

See Supercession: 181937
(Superseded to 181937)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

10

Lawn-Boy 611714

See Supercession: 683411
(Superseded to 683411)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

11

Lawn-Boy 145307

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

12

Lawn-Boy 683065

SHROUD ASM

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$89.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 145308

FRONT MOUNTING PAD

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

14

Lawn-Boy 682546

See Supercession: 153644
(Superseded to 153644)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

15

Lawn-Boy 683066

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

16

Lawn-Boy 683067

DISCONTINUED
(Superseded to 684065)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

17

Lawn-Boy 682039

FUEL LINE ASM

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

18

Lawn-Boy 610308

OUTER BEARING

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

19

Lawn-Boy 682040

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

20

Lawn-Boy 610309

SEAL

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

21

Lawn-Boy 682041

INNER BEARING ASM

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

22

Lawn-Boy 145563

DISCONTINUED
(Superseded to 684756)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

23

Lawn-Boy 611735

See Supercession: 181622
(Superseded to 181622)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

24

Lawn-Boy 610311

SPARK PLUG

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

25

Lawn-Boy 153302

See Supercession: 753-04367
(Superseded to 753-04367)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

26

Lawn-Boy 153303

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

27

Lawn-Boy 683078

See Supercession: 153403
(Superseded to 153403)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$59.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 682046

See Supercession: 684451
(Superseded to 684451)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

29

Lawn-Boy 682504

See Supercession: 684453
(Superseded to 684453)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$64.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 682048

THROTTLE ADJ ASM

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

31

Lawn-Boy 683063

DISCONTINUED
(Superseded to 181675)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

32

Lawn-Boy 610312

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

33

Lawn-Boy 682505

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

34

Lawn-Boy 153305

See Supercession: 683264
(Superseded to 683264)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

35

Lawn-Boy 682052

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

36

Lawn-Boy 683273

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

37

Lawn-Boy 682054

MUFFLER MOUNTING BOLTS

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

38

Lawn-Boy 683068

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

39

Lawn-Boy 683069

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

40

Lawn-Boy 682552

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

40

Lawn-Boy 682552

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

41

Lawn-Boy 153307

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

41

Lawn-Boy 153307

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

42

Lawn-Boy 153308

See Supercession: 180602
(Superseded to 180602)

Note: NOT SHOWN

$

$

Not available

42

Lawn-Boy 153308

See Supercession: 180602
(Superseded to 180602)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

43

Lawn-Boy 153309

DISCONTINUED
(Superseded to 181069)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

43

Lawn-Boy 153309

DISCONTINUED
(Superseded to 181069)

Note: NOT SHOWN

$

$

Not available

44

Lawn-Boy 682507

DISCONTINUED
(Superseded to 180530)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

44

Lawn-Boy 682507

DISCONTINUED
(Superseded to 180530)

Note: NOT SHOWN

$

$

Not available

45

Lawn-Boy 683099

SHORT BLOCK ASM

Note: NOT SHOWN

$409.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 683099

SHORT BLOCK ASM

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$409.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 153311

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

46

Lawn-Boy 153311

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

47

Lawn-Boy 610672

See Supercession: 180980
(Superseded to 180980)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$8.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 145564

DISCONTINUED
(Superseded to 610674)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

49

Lawn-Boy 683070

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

50

Lawn-Boy 611063

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

51

Lawn-Boy 610673

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

52

Lawn-Boy 610675

CARB.GASKET

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$7.99

$

In Stock, only 1 left!

0

53

Lawn-Boy 683264

DISCONTINUED

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

54

Lawn-Boy 683276

See Supercession: 683411
(Superseded to 683411)

Note: NOT SHOWN

$

$

Not available

54

Lawn-Boy 683276

See Supercession: 683411
(Superseded to 683411)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available

55

Lawn-Boy 683277

See Supercession: 684453
(Superseded to 684453)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$64.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 683277

See Supercession: 684453
(Superseded to 684453)

Note: NOT SHOWN

$64.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 610676

FLYWHEEL KEY (10-PK)

Note: NOT SHOWN

$

$

Not available

56

Lawn-Boy 610676

FLYWHEEL KEY (10-PK)

Note: The above Part Nos. for Serial Nos. 40900000 and greater.

$

$

Not available
