142-1850 - Exmark Turf Cultivator Attachment (SN: 406294345 - 408644345) (Rev B) (2020) Spiker Head Assembly Parts Diagram

Turf Cultivator Attachment

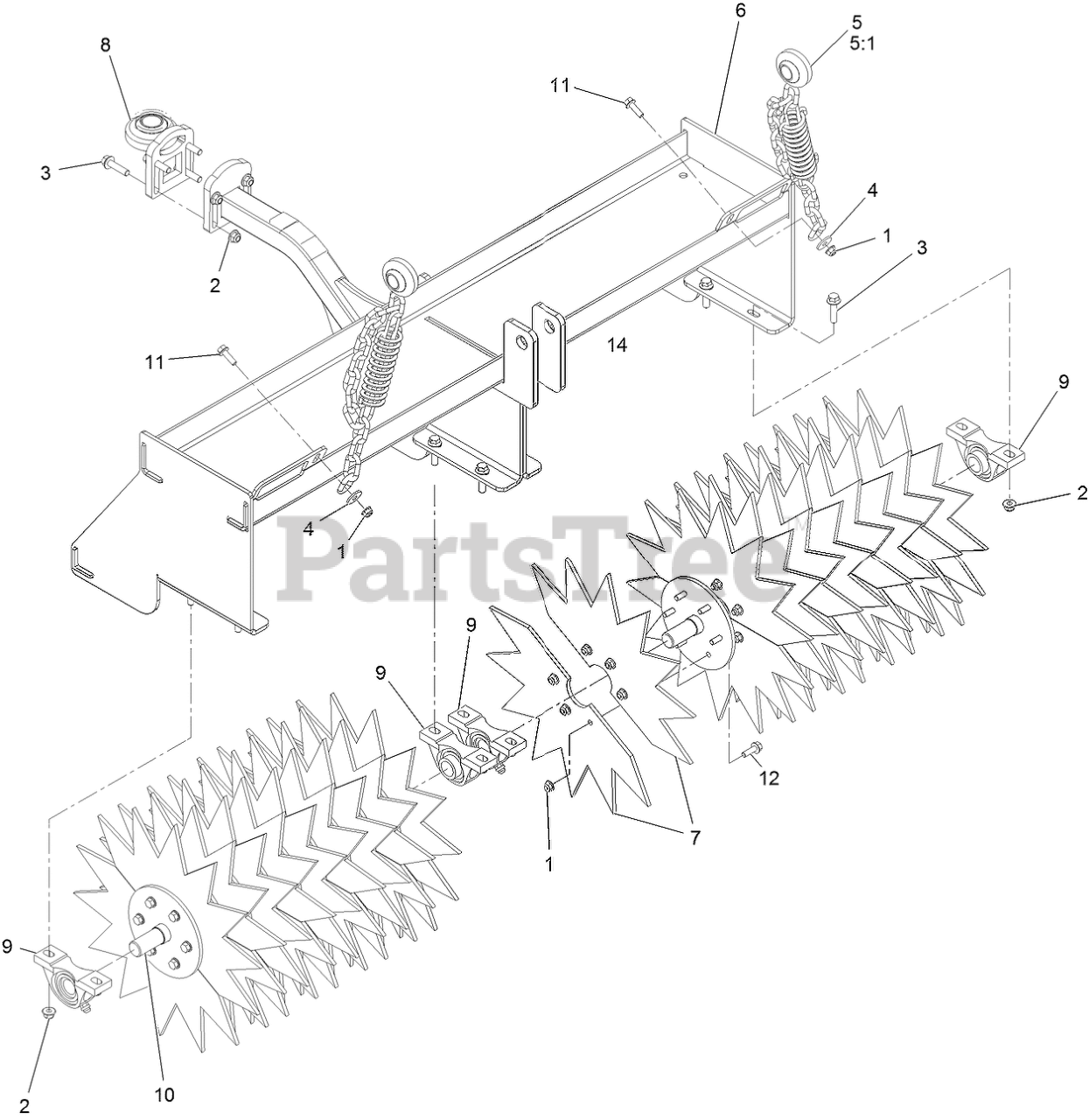

Spiker Head Assembly Parts Diagram

  • Title

1

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 114-4681

SCREW-HHF

$3.99

$

In Stock, Qty 6

0

4

Exmark 115-7109

WASHER-FLAT

$1.49

$

In Stock, Qty 13

0

5

Exmark 135-7099

SWIVEL-CHAIN ASM

$335.99

$

Usually ships in 3-6 days

0

5:1

Exmark 135-9373

Z-PLUG DRAWBAR SPRING
(Superseded to 135-7099)

$335.99

$

Usually ships in 3-6 days

0

6

Exmark 135-8785-05

HEAD-AERATION, 40""

$1224.99

$

Usually ships in 3-6 days

0

7

Exmark 135-9351-05

STAR, SPIKER HEAD

$49.99

$

Usually ships in 3-6 days

0

8

Exmark 135-9370

MOUNT-SWIVEL BRG,AER HEAD

$201.99

$

Usually ships in 3-6 days

0

9

Exmark 135-9379

PILLOW BLOCK BEARING

$34.99

$

Usually ships in 3-6 days

0

10

Exmark 135-9791-05

DISC-SPYKER HEAD

$428.99

$

Usually ships in 3-6 days

0

11

Exmark 3234-17

SCREW-HH

Note: Flg 5/16-18 X 1

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 3234-29

SCREW-HHF

Note: Flg 5/16-18 X 1

$2.99

$

In Stock, only 1 left!

0

14

Exmark 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0
