145-1263 - Toro CE Kit for 152cm Z Master 4000 Series Mower CE Assembly No. 145-1263 Parts Diagram

CE Kit for 152cm Z Master 4000 Series Mower

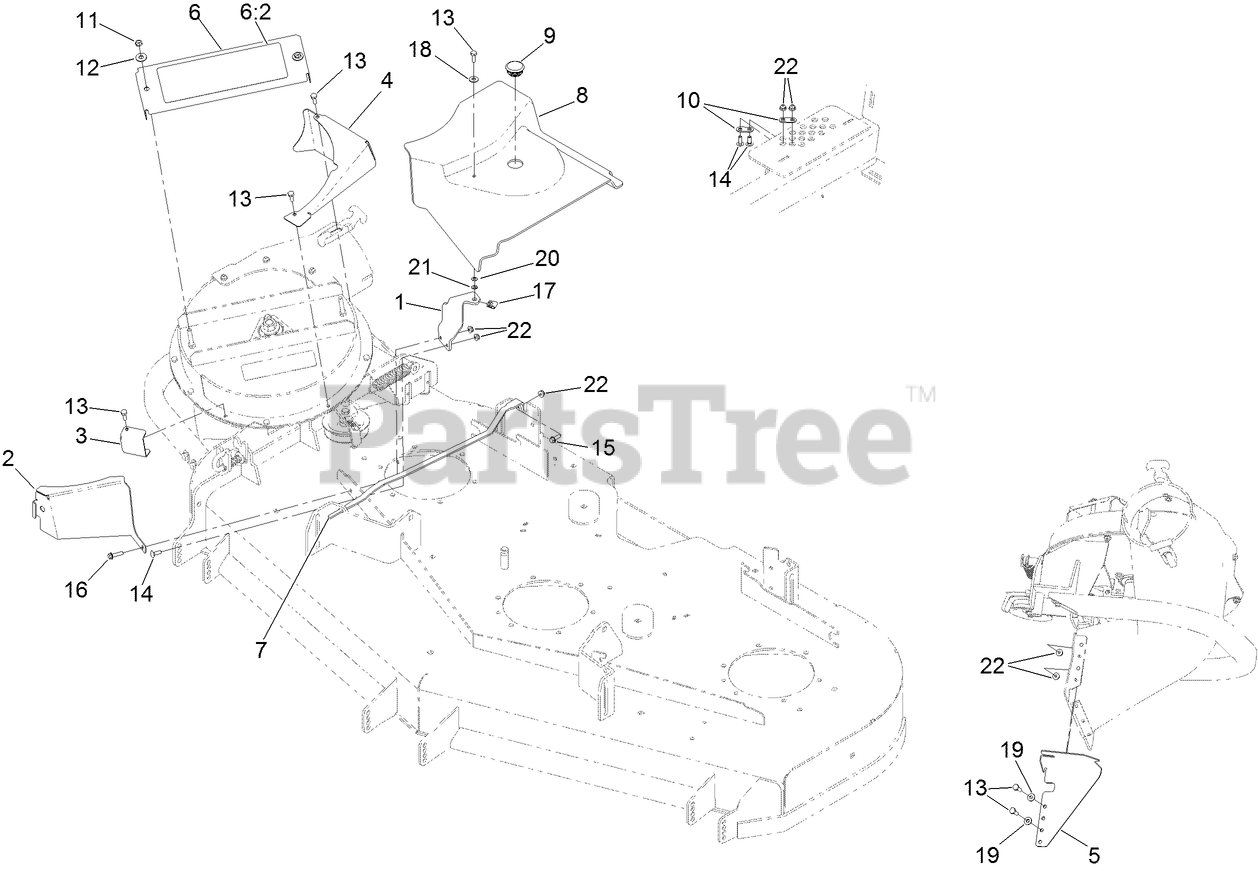

CE Assembly No. 145-1263 Parts Diagram

  • Title

1

Toro 117-0342-01

BRACKET-COVER, BELT

$39.99

$

Usually ships in 3-6 days

0

2

Toro 145-1252-03

GUARD-BAGGER [BLACK]

$

$

Currently unavailable

3

Toro 126-9161-03

GUARD-FRONT, LEFT

$52.99

$

Usually ships in 3-6 days

0

4

Toro 145-1250-03

GUARD-TOP

$

$

Currently unavailable

5

Toro 121-7572-03

GUARD-BAGGER

$

$

Currently unavailable

6

Toro 117-0924

COVER-BEARING

$

$

Currently unavailable

6:2

Toro 117-0923

DECAL-DANGER

$27.99

$

Usually ships in 3-6 days

0

7

Toro 145-1308

BRACKET-SKIRT, LOWER

$

$

Currently unavailable

8

Toro 117-8644

COVER-BELT

$253.99

$

Usually ships in 3-6 days

0

9

Toro 117-0946

PLUG-PLASTIC

$6.99

$

Usually ships in 3-6 days

0

10

Toro 145-1270-03

PLATE-COVER, HOC [BLACK]

$5.49

$

Usually ships in 3-6 days

0

11

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

12

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

15

Toro 115-5103

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

16

Toro 120-4654

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

17

Toro 609900

NUT-SPEED

$9.49

$

Usually ships in 3-6 days

0

18

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3256-60

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

21

Toro 32115-15

PUSHNUT-RETAINER, BOLT

$1.49

$

In Stock, Qty 5

0

22

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
