145-3689 - Toro Trimmer Mount Kit for Z Master Professional 2000 Series Mower Trimmer Mount Assembly No. 145-3689 Parts Diagram

Trimmer Mount Kit for Z Master Professional 2000 Series Mower

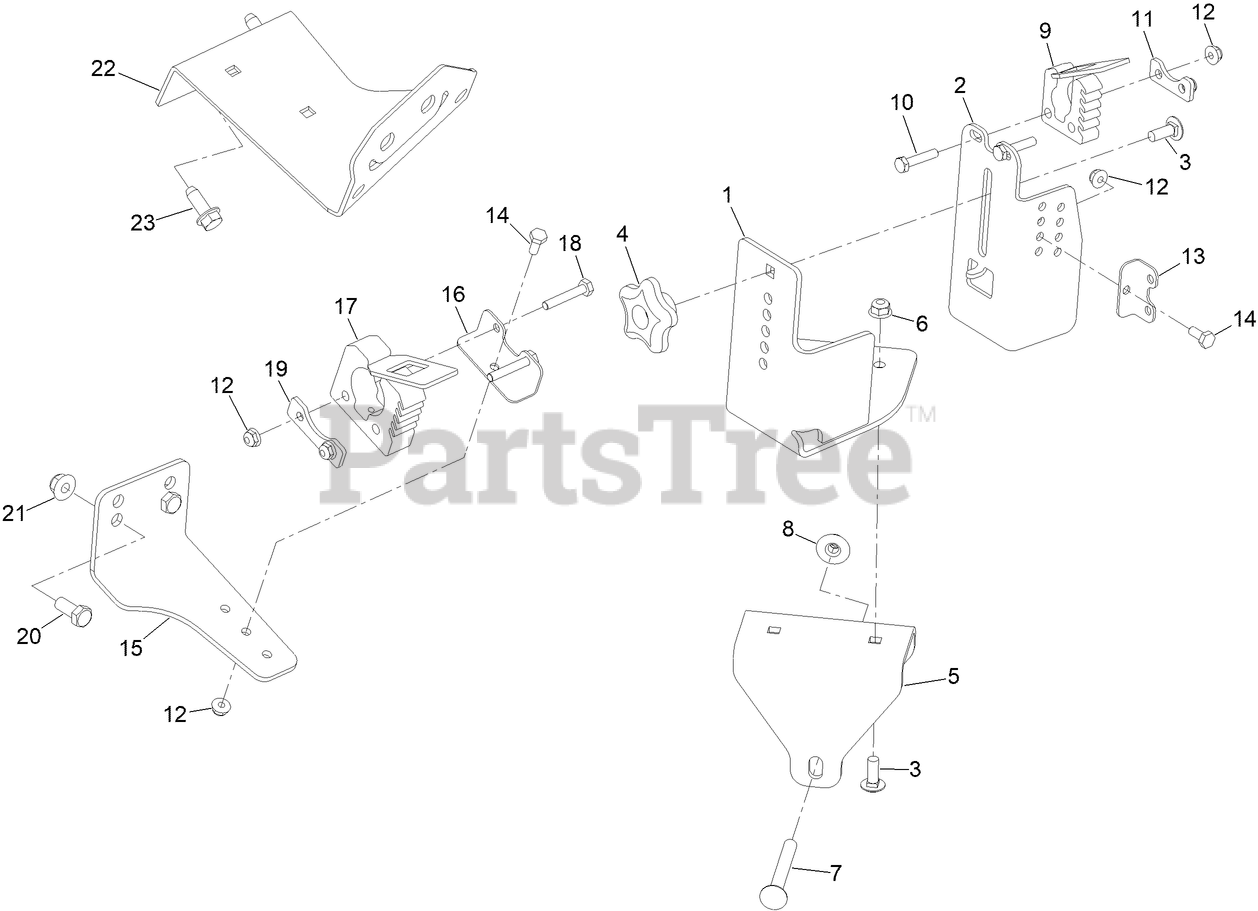

Trimmer Mount Assembly No. 145-3689 Parts Diagram

  • Title

1

Toro 136-1678-03

PLATE-MOUNT, TRIMMER

$42.99

$

Usually ships in 3-6 days

0

2

Toro 136-1679-03

PLATE-TRIMMER, ADJ.

$26.99

$

Usually ships in 3-6 days

0

3

Toro 3230-10

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

4

Toro 106-4161

KNOB-HANDLE

$5.99

$

In Stock, Qty 20+

0

5

Toro 136-1677-03

CHANNEL-BRACKET, WEIGHT

$36.99

$

Usually ships in 3-6 days

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 3231-10

SCREW-CARR

$4.99

$

In Stock, only 4 left!

0

8

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 133-1899

CLAMP-QUICK FIST, MINI

$18.99

$

In Stock, only 2 left!

0

10

Toro 321-8

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

11

Toro 126-8060-03

PLATE-BACKER, SMALL

$7.99

$

Usually ships in 3-6 days

0

12

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 126-8250-03

BRACKET-QUICK FIST, SMALL

$9.49

$

Usually ships in 3-6 days

0

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 136-1681-03

BRACKET-TRIMMER, REAR

$23.99

$

Usually ships in 3-6 days

0

16

Toro 126-8251-03

BRACKET-QUICKFIST, LARGE

$11.99

$

Usually ships in 3-6 days

0

17

Toro 133-1898

CLAMP-QUICK FIST, ORIGINAL

$26.99

$

In Stock, only 2 left!

0

18

Toro 321-9

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

19

Toro 126-8058-03

PLATE-BACKER, LARGE

$7.99

$

Usually ships in 3-6 days

0

20

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 5

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 136-9030-01

BRACKET-SUPPORT, POD (RH)

$39.99

$

Usually ships in 3-6 days

0

23

Toro 126-1696

SCREW-FORMING, THREAD

$1.49

$

In Stock, only 3 left!

0
