145-995 - Ranch King Garden Tractor (1985) Electrical Parts Diagram

Garden Tractor

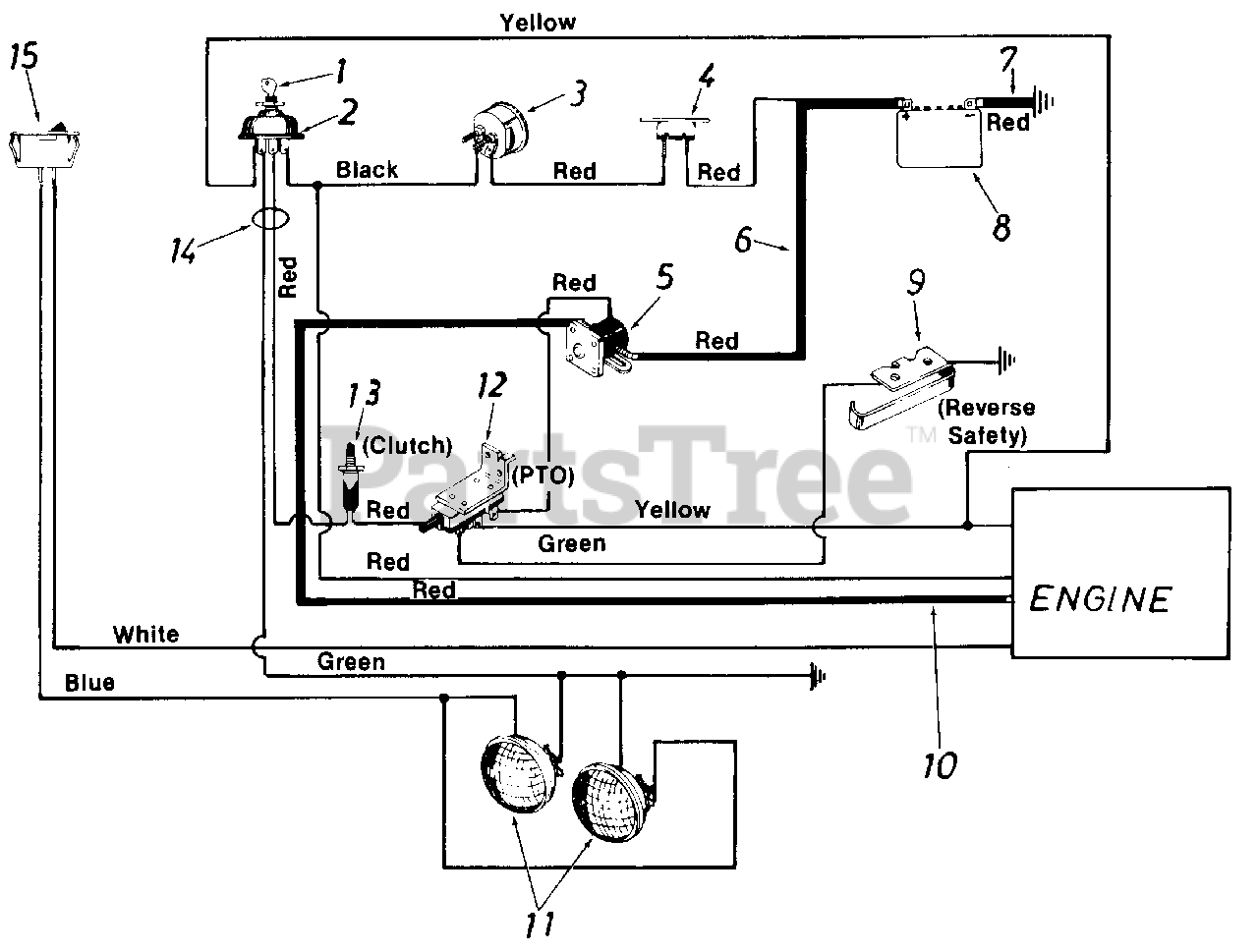

Electrical Parts Diagram

  • Title

1

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.99

$

In Stock, Qty 8

0

2

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$37.99

$

In Stock, Qty 17

0

3

MTD 725-0119

Ammeter
(Superseded to 925-3141)

$66.99

$

In Stock, only 3 left!

0

4

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

5

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$37.99

$

In Stock, Qty 7

0

6

MTD 725-0558

Electric Wire

$

$

Currently unavailable

7

MTD 725-0994

Electric Wire
(Superseded to 629-0739)

$

$

Not available

8

MTD 725-0453

Battery

$

$

Not available

9

MTD 725-0758

Spring Switch
(Superseded to 753-0580)

Note: (Reverse Safety)

$

$

Not available

10

MTD 725-0562

Electric Wire
(Superseded to 629-0740)

$

$

Not available

11

MTD 725-0222

Headlights
(Superseded to 925-0222)

$62.99

$

In Stock, Qty 5

0

12

MTD 725-0842

Safety Switch

Note: (PTO)

$

$

Not available

13

MTD 725-0577

Safety Switch

Note: (Clutch)

$

$

Not available

14

MTD 725-0843

Wire Harness

$

$

Currently unavailable

15

MTD 725-0646

Light Switch
(Superseded to 925-1756)

$

$

Not available
