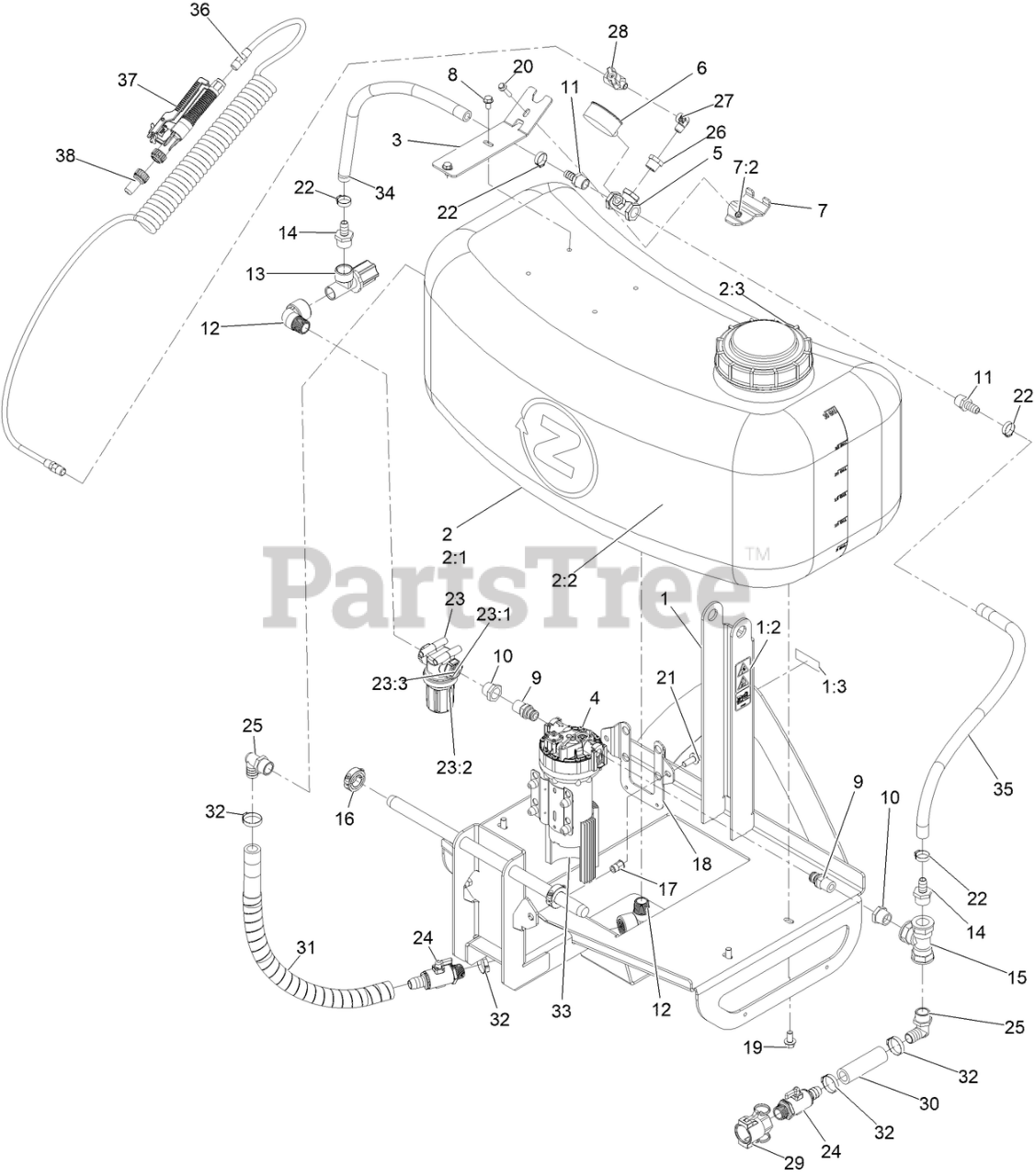

146-1792 - Exmark 30 Gallon Spray System (SN: 413950474 - 416150474) (Rev A) (2023) Tank Assembly Parts Diagram

30 Gallon Spray System

Tank Assembly Parts Diagram

  • Title

1

Exmark 147-6679

30 Gal Base ASM W/Decals

$

$

Currently unavailable

1:2

Exmark 147-6677

DECAL-STORED ENERGY ATTACHMENT

$31.99

$

Usually ships in 3-6 days

0

1:3

Exmark 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 135-6620

ASM-TANK, 30 GAL

$502.99

$

Usually ships in 3-6 days

0

2:1

Exmark 135-6616

TANK-CENTER, 30 GAL
(Superseded to 135-6620)

$502.99

$

Usually ships in 3-6 days

0

2:2

Exmark 135-5921

Fitting-Bulkhead

$22.99

$

Usually ships in 3-6 days

0

2:3

Exmark 135-5916

CAP-TANK, SPRAY

$13.99

$

Usually ships in 3-6 days

0

3

Exmark 142-8308

Plate-Pump Mnt, 30 Gal Attach

$

$

Currently unavailable

4

Exmark 142-3321

PUMP-5.3 GPM

$388.99

$

In Stock, only 4 left!

0

5

Exmark 135-6643

FITTING-CROSS

$17.99

$

Usually ships in 3-6 days

0

6

Exmark 142-3437

GAUGE-PLAIN

$44.99

$

In Stock, Qty 7

0

7

Exmark 142-8284

Brkt-Tee Mount

$

$

Currently unavailable

7:2

Exmark 138-2760

Nut-Clinch, Hex

$2.49

$

Usually ships in 3-6 days

0

8

Exmark 3234-7

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

9

Exmark 135-8338

PUMP FTG X 1/2MPT FQ5MS-1

$7.99

$

In Stock, only 2 left!

0

10

Exmark 41969

REDUCER-BUSHING, PLASTIC

$16.99

$

Usually ships in 3-6 days

0

11

Exmark 120-8671

FITTING-HOSEBARB

$2.49

$

In Stock, only 3 left!

0

12

Exmark 132-7706

ELBOW-90DEG

$13.99

$

Usually ships in 3-6 days

0

13

Exmark 135-5736

VALVE-THROTTLE

$65.99

$

In Stock, Qty 8

0

14

Exmark 135-6598

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

15

Exmark 135-6004

FITTING-TEE

$8.49

$

In Stock, only 2 left!

0

16

Exmark 142-3076

Collar-Shaft, Split, Cz

$59.99

$

Usually ships in 3-6 days

0

17

Exmark 135-7200

NUT-CLINCH,HEX

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 142-4274

BRACKET-MOUNT, PUMP

$52.99

$

Usually ships in 3-6 days

0

19

Exmark 3234-1

Screw-HH Flg 3/8-16 X 3/4

$1.99

$

In Stock, Qty 14

0

20

Exmark 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.99

$

In Stock, Qty 20+

0

22

Exmark 135-5692

CLAMP-OETIKER, 167

$2.49

$

In Stock, Qty 20+

0

23

Exmark 142-6864

STRAINER-T, 50 MESH

$55.99

$

Usually ships in 3-6 days

0

23:1

Exmark 142-6867

Gasket-Strainer

$8.99

$

In Stock, only 1 left!

0

23:2

Exmark 142-6866

SCREEN-50 MESH

$44.99

$

In Stock, only 1 left!

0

23:3

Exmark 142-6865

BOWL-STRAINER, BLACK

$22.99

$

Usually ships in 3-6 days

0

24

Exmark 142-6868

VALVE

$49.99

$

Usually ships in 3-6 days

0

25

Exmark 135-5772

FITTING-ELBOW, 90

$2.49

$

In Stock, only 2 left!

0

26

Exmark 135-5743

FITTING-REDUCER

$3.49

$

In Stock, only 2 left!

0

27

Exmark 125-9088

FITTING-ELBOW, 90

$18.99

$

In Stock, only 2 left!

0

28

Exmark 135-5737

VALVE-CHROME, 1/4

$23.99

$

In Stock, only 2 left!

0

29

Exmark 135-6622

COUPLER-FEMALE

$20.99

$

Usually ships in 3-6 days

0

30

Exmark 142-6907

HOSE-SPRAY

$5.99

$

Usually ships in 3-6 days

0

31

Exmark 142-8439

HOSE-SPRAY, WRAPPED

$31.99

$

Usually ships in 3-6 days

0

32

Exmark 135-5890

Clamp-Oetiker, 167

$3.49

$

In Stock, Qty 5

0

33

Exmark 142-3322

HEATSINK-3.0""

$59.99

$

Usually ships in 3-6 days

0

34

Exmark 142-0042

Hose-Spray, Wrapped

$26.99

$

Usually ships in 3-6 days

0

35

Exmark 142-8570

Hose-Epdm

$

$

Currently unavailable

36

Exmark 135-6612

HOSE-COILED, 15 FT

$110.99

$

In Stock, only 3 left!

0

37

Exmark 135-5773

GUN-SPRAY, SPOT

$74.99

$

In Stock, Qty 9

0

38

Exmark 135-5778

TIP-SPRAY, #12 SPOT

$28.99

$

In Stock, Qty 8
