146-1795 - Exmark Spiker Head Assembly (SN: 416150475 - 417930745) (Rev A) (2024) Spiker Head Assembly Parts Diagram

Spiker Head Assembly

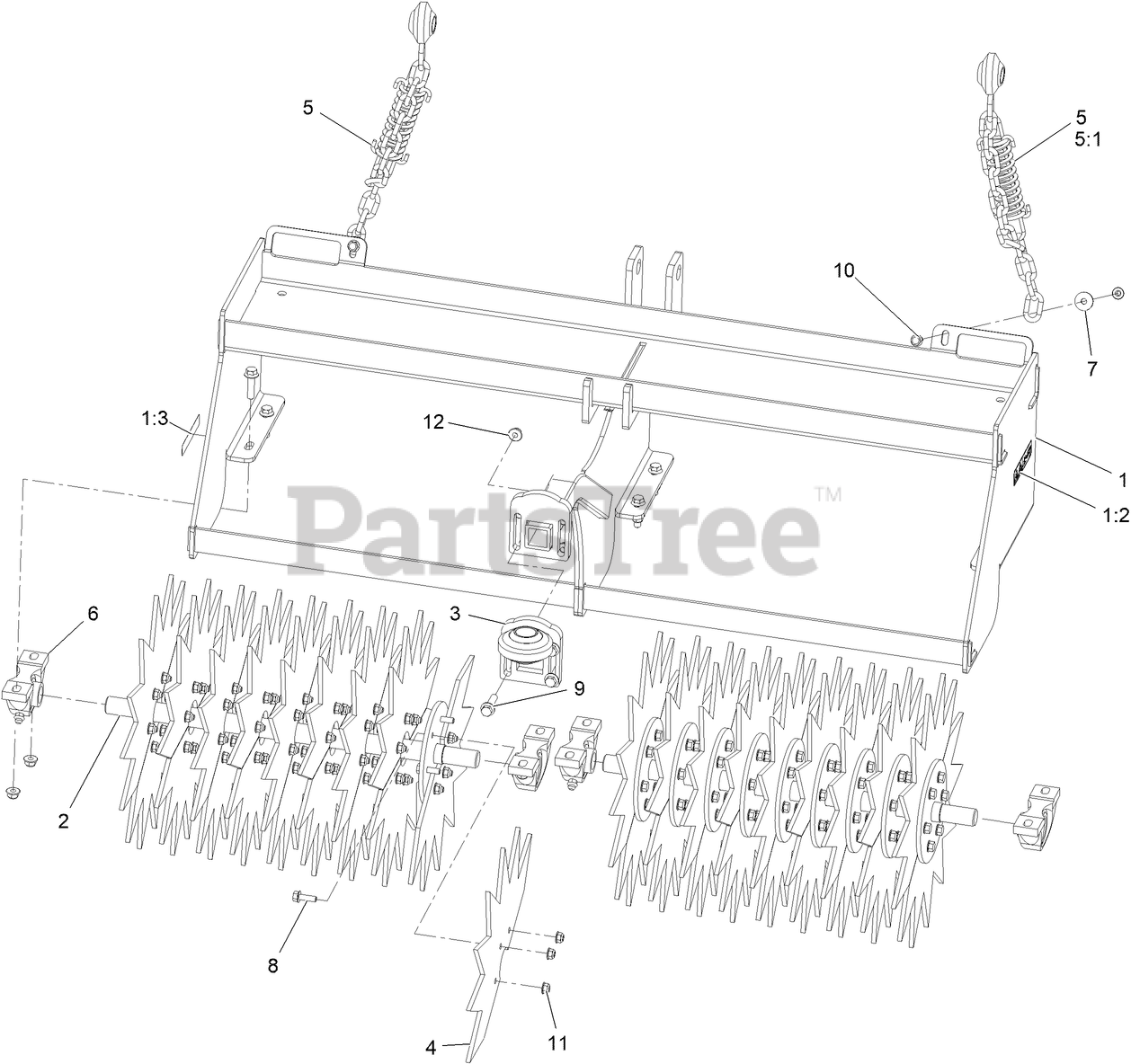

Spiker Head Assembly Parts Diagram

  • Title

1

Exmark 147-6690

Spiker Frame ASM W/Decals

$

$

Currently unavailable

1:2

Exmark 121-6162

DECAL-WARNING, TINES

$5.99

$

Usually ships in 3-6 days

0

1:3

Exmark 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 135-9791-05

DISC-SPYKER HEAD

$428.99

$

Usually ships in 3-6 days

0

3

Exmark 135-9370

MOUNT-SWIVEL BRG,AER HEAD

$201.99

$

Usually ships in 3-6 days

0

4

Exmark 135-9351-05

STAR, SPIKER HEAD

$49.99

$

Usually ships in 3-6 days

0

5

Exmark 135-7099

SWIVEL-CHAIN ASM

$335.99

$

Usually ships in 3-6 days

0

5:1

Exmark 135-9373

Z-PLUG DRAWBAR SPRING
(Superseded to 135-7099)

$335.99

$

Usually ships in 3-6 days

0

6

Exmark 135-9379

PILLOW BLOCK BEARING

$34.99

$

Usually ships in 3-6 days

0

7

Exmark 115-7109

WASHER-FLAT

$1.49

$

In Stock, Qty 13

0

8

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

9

Exmark 114-4681

SCREW-HHF

$3.99

$

In Stock, Qty 6

0

10

Exmark 3234-17

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
