147-1660 - Toro Electric Deck Lift Kit for Z Master 2000 or 4000 Series Mower Deck Lift Assembly No. 147-1660 Parts Diagram

Electric Deck Lift Kit for Z Master 2000 or 4000 Series Mower

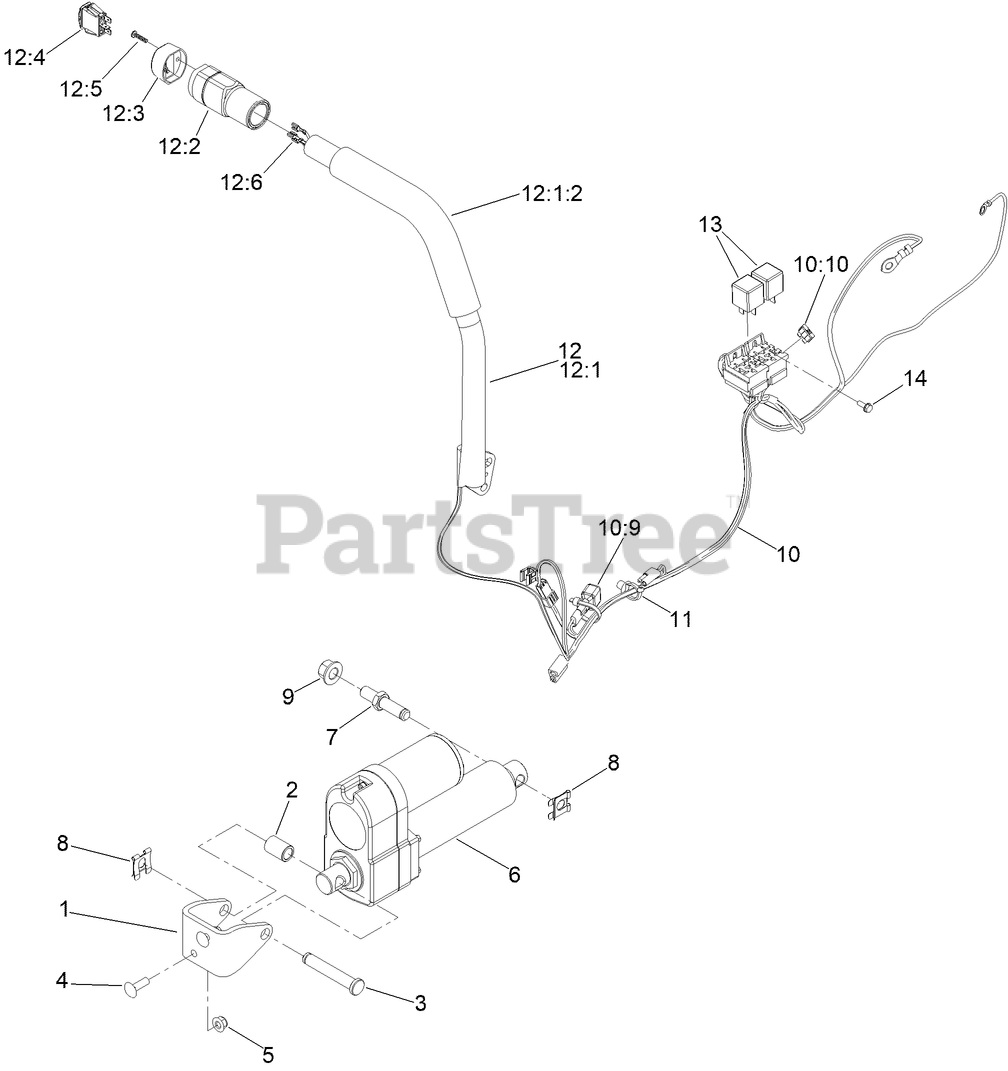

Deck Lift Assembly No. 147-1660 Parts Diagram

  • Title

1

Toro 147-0271-01

CYL MOUNT PLATE

$15.99

$

Usually ships in 3-6 days

0

2

Toro 127-6751

SPACER-ALUMINUM

$10.99

$

Usually ships in 3-6 days

0

3

Toro 126-9181

PIN-CLEVIS

$8.99

$

In Stock, Qty 5

0

4

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 139-8111

ACTUATOR-LINEAR
(Superseded to 147-7868)

$733.99

$

Usually ships in 3-6 days

0

7

Toro 139-8135

PIN-PIVOT, ACTUATOR

$19.99

$

Usually ships in 3-6 days

0

8

Toro 138-8491

CLIP-PIN

$7.99

$

In Stock, Qty 6

0

9

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

10

Toro 140-1200

HARNESS-WIRE, DECK LIFT

$122.99

$

Usually ships in 3-6 days

0

10:9

Toro 103-3895

DIODE

$70.99

$

In Stock, only 2 left!

0

10:10

Toro 109101

FUSE-BLADE, 20 AMP

$2.49

$

In Stock, Qty 11

0

11

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

12

Toro 147-4991

HANDLE ASM-LH

$252.99

$

Usually ships in 3-6 days

0

12:1

HANDLE ASM-LH

Note: Not serviced separately

$

$

Not available

12:1:2

Toro 109-5668

GRIP-CONTROL, LEVER

$15.99

$

In Stock, only 3 left!

0

12:2

Toro 125-2662

CASE ASM

$62.99

$

Usually ships in 3-6 days

0

12:3

Toro 121-3399

CAP-SWITCH

$12.99

$

Usually ships in 3-6 days

0

12:4

Toro 140-1228

Air Cleaner Element

$55.99

$

Usually ships in 3-6 days

0

12:5

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

12:6

Toro 144-0354

HARNESS-WIRE, HANDLE

$50.99

$

Usually ships in 3-6 days

0

13

Toro 1-643275

RELAY

$26.99

$

In Stock, Qty 19

0

14

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0
