1480 - Lawn-Boy 15" String Trimmer (SN: 612000000 - 699999999) (1986) ENGINE MODEL 1480 Parts Diagram

15" String Trimmer

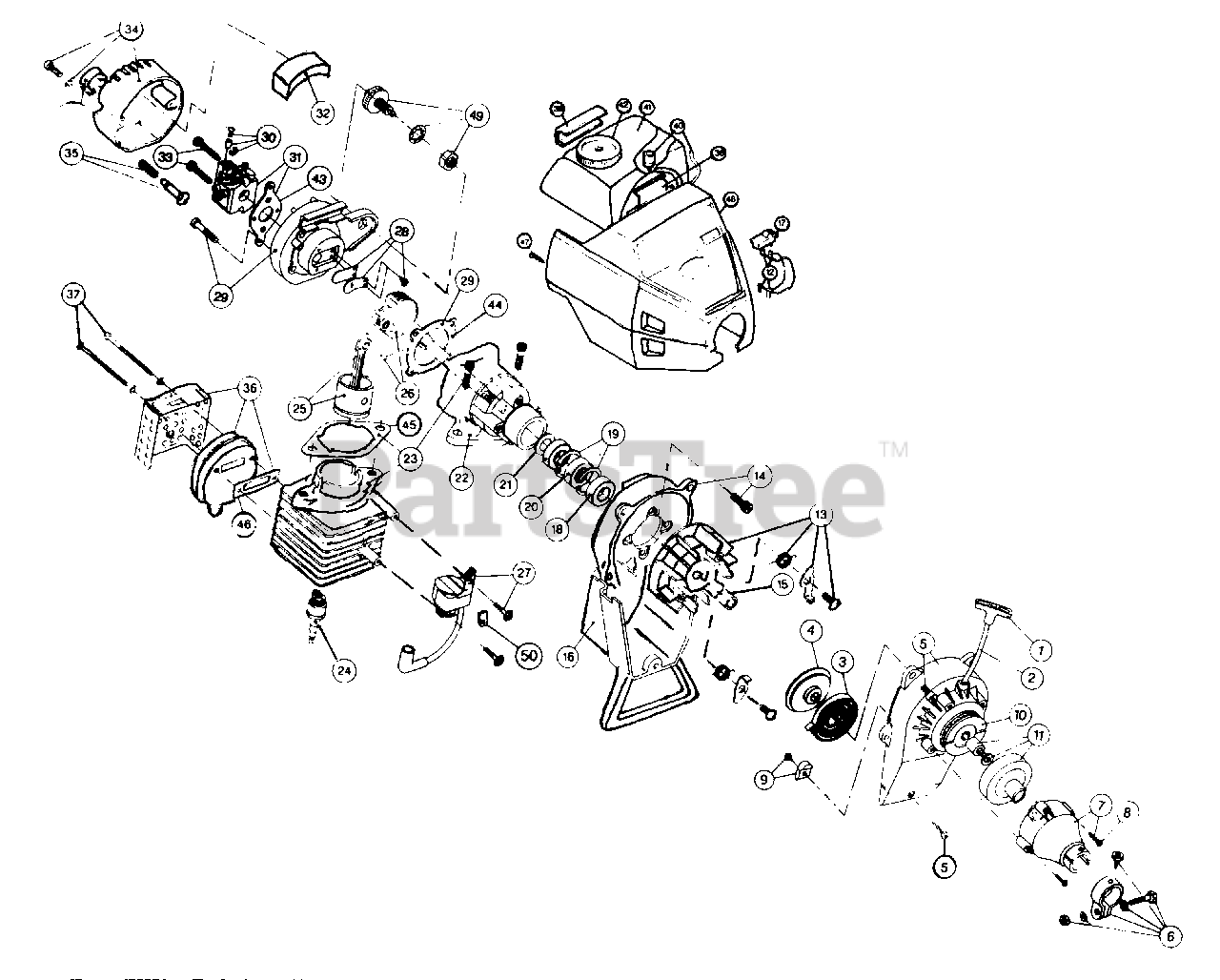

ENGINE MODEL 1480 Parts Diagram

  • Title

1

Lawn-Boy 610300

Pull handle
(Superseded to 181079)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

2

Lawn-Boy 610301

Rope
(Superseded to 613103)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

3

Lawn-Boy 610302

Recoil spring
(Superseded to 613102)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

4

Lawn-Boy 682030

Recoil pulley assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

5

Lawn-Boy 683600

Starter housing assembly
(Superseded to 181931)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

6

Lawn-Boy 153597

Upper clamp assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

7

Lawn-Boy 683601

Clutch cover assembly
(Superseded to 180098)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

8

Lawn-Boy 145888

Clutch cover screw assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

9

Lawn-Boy 682546

Pulley retainer assembly
(Superseded to 153644)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

10

Lawn-Boy 153591

Clutch rotor assembly
(Superseded to 181598)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

11

Lawn-Boy 153592

Clutch drum assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

12

Lawn-Boy 683068

Wire lead assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

13

Lawn-Boy 153624

Flywheel assembly
(Superseded to 180929)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

14

Lawn-Boy 683065

Shroud assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$89.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 145918

Spacer

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

16

Lawn-Boy 683078

Shroud extension and stand
(Superseded to 153403)

Note: The above part nos. are for serial no. 61200000 and greater.

$59.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 683069

Switch assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

18

Lawn-Boy 610308

Outer bearing

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

19

Lawn-Boy 682040

Snap ring assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

20

Lawn-Boy 610309

Seal

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

21

Lawn-Boy 682041

Inner bearing in assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

22

Lawn-Boy 145563

Crankcase
(Superseded to 684756)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

23

Lawn-Boy 611735

Cylinder assembly
(Superseded to 181622)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

24

Lawn-Boy 610311

Spark plug

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

25

Lawn-Boy 153302

Piston and rod assembly
(Superseded to 753-04367)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

26

Lawn-Boy 145919

Power shaft assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

27

Lawn-Boy 683390

Module assembly
(Superseded to 181937)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

28

Lawn-Boy 682046

Reed assembly
(Superseded to 684451)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

29

Lawn-Boy 683866

Carburetor mount assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

30

Lawn-Boy 682048

Throttle adjustment assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

31

Lawn-Boy 683814

Carburetor assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

32

Lawn-Boy 610312

Air cleaner filter

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

33

Lawn-Boy 682505

Carburetor mounting screw assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

34

Lawn-Boy 683410

Air cleaner cover assembly
(Superseded to 683414)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

35

Lawn-Boy 682052

Choke knob assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

36

Lawn-Boy 683273

Muffler assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

37

Lawn-Boy 682054

Muffler mounting bolt assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

38

Lawn-Boy 145308

Front mounting pad

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

39

Lawn-Boy 612134

Rear mounting pad

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

40

Lawn-Boy 682039

Fuel line assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

41

Lawn-Boy 612918

Fuel tank
(Superseded to 683411)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

42

Lawn-Boy 683066

Cap and vent assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

43

Lawn-Boy 610675

Carburetor gasket (10 pack)

Note: The above part nos. are for serial no. 61200000 and greater.

$7.99

$

In Stock, only 1 left!

0

44

Lawn-Boy 610673

Carburetor mount gasket (10 pack)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

45

Lawn-Boy 145564

Cylinder gasket (10 pack)
(Superseded to 610674)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

46

Lawn-Boy 610672

Exhaust gasket (10 pack)
(Superseded to 180980)

Note: The above part nos. are for serial no. 61200000 and greater.

$8.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 683070

Engine cover mounting screw assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

48

Lawn-Boy 683867

Engine cover and decal assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

49

Lawn-Boy 683817

Primer bulb and hose assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

50

Lawn-Boy 611063

Ground Tab

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

51

Lawn-Boy 153307

Engine Gasket Kit

Note: The above part nos. are for serial no. 61200000 and greater. Not shown

$

$

Not available

52

Lawn-Boy 683905

O.E.M. carburetor repair kit

Note: The above part nos. are for serial no. 61200000 and greater. Not shown

$

$

Not available

53

Lawn-Boy 683906

Gasket-diaphragm repair kit

Note: The above part nos. are for serial no. 61200000 and greater. Not shown

$

$

Not available

54

Lawn-Boy 682507

Piston ring set
(Superseded to 180530)

Note: The above part nos. are for serial no. 61200000 and greater. Not shown

$

$

Not available

55

Lawn-Boy 153594

Short block assembly (Items 18-26)

Note: The above part nos. are for serial no. 61200000 and greater. Not shown

$

$

Not available

56

Lawn-Boy 153595

Crankcase service assembly (Items 18-22, 26)

Note: The above part nos. are for serial no. 61200000 and greater. Not shown

$

$

Not available

57

Lawn-Boy 610676

Flywheel key (10 pack)

Note: The above part nos. are for serial no. 61200000 and greater. Not shown

$

$

Not available

58

Lawn-Boy 683414

Complete air filter assembly (Items 32, 34, 35)

Note: The above part nos. are for serial no. 61200000 and greater. Not shown

$

$

Not available

59

Lawn-Boy 683868

Fuel tank assembly (Items 40-42)

Note: The above part nos. are for serial no. 61200000 and greater. Not shown

$

$

Not available

60

Lawn-Boy 683869

Carburetor mount and reed assembly (Items 28, 29)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

61

Lawn-Boy 153593

Engine Hardware Kit

Note: The above part nos. are for serial no. 61200000 and greater. Not shown

$

$

Not available
