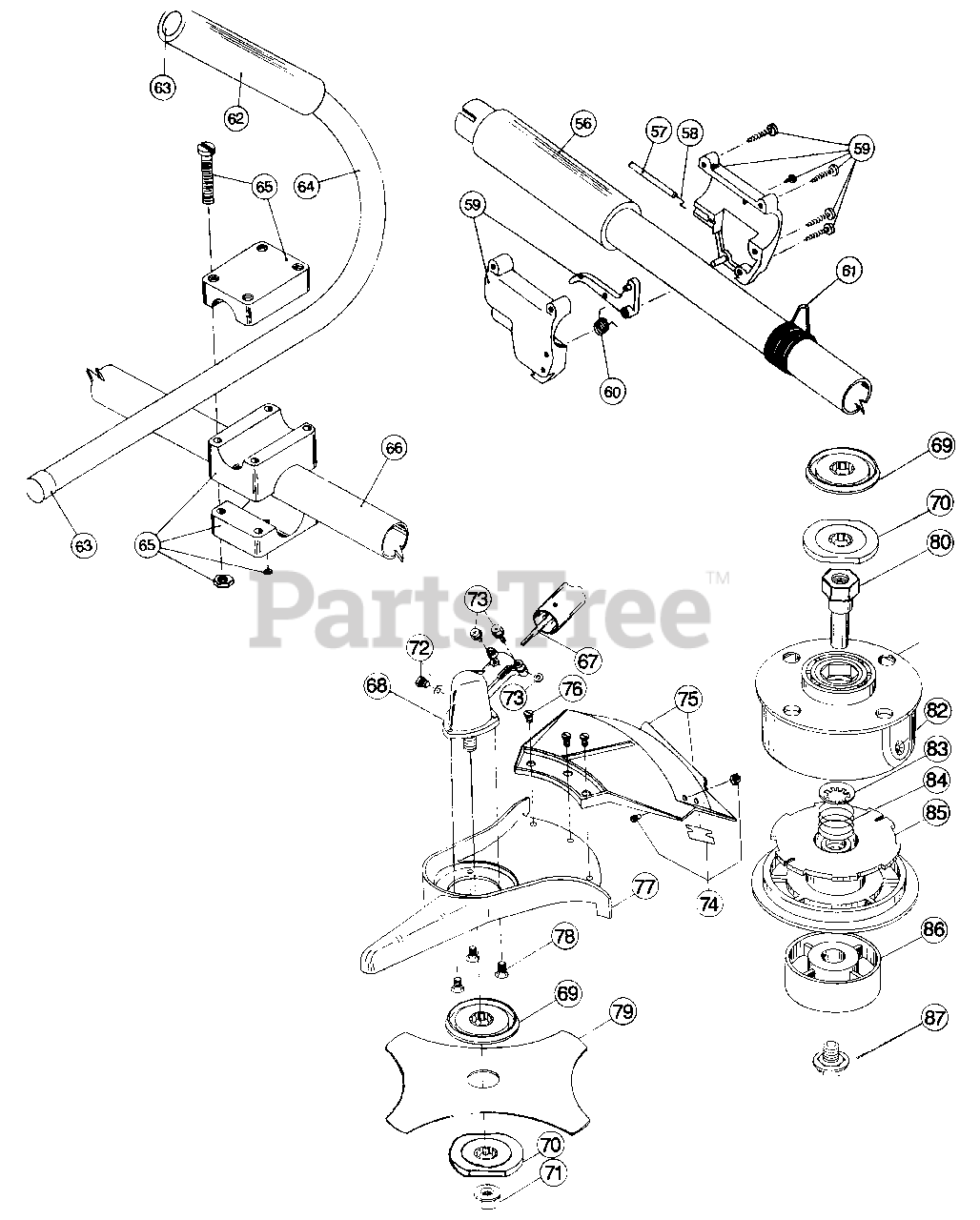

1480 - Lawn-Boy 15" String Trimmer (SN: 612000000 - 699999999) (1986) PARTS MODEL 1480 Parts Diagram

15" String Trimmer

PARTS MODEL 1480 Parts Diagram

  • Title

40

Lawn-Boy 682552

Engine hardware kit

Note: Not shown

$

$

Not available

41

Lawn-Boy 153307

Engine gasket kit

Note: Not shown

$

$

Not available

42

Lawn-Boy 153308

O.E.M. carburetor repair kit
(Superseded to 180602)

Note: Not shown

$

$

Not available

43

Lawn-Boy 153309

Gasket diaphragm repair kit
(Superseded to 181069)

Note: Not shown

$

$

Not available

44

Lawn-Boy 682507

Piston ring set
(Superseded to 180530)

Note: Not shown

$

$

Not available

45

Lawn-Boy 683099

Short block assembly (Items 18-26)

Note: Not shown

$409.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 153311

Crank case service assembly (Items 18-22, 26)

Note: Not shown

$

$

Not available

53

Lawn-Boy 683414

Complete air cleaner assembly (Items 32, 34, 35)

Note: Not shown

$

$

Not available

54

Lawn-Boy 683411

Fuel tank assembly (Items 10, 15, 17)

Note: Not shown

$

$

Not available

55

Lawn-Boy 683412

Carburetor mount and reed assembly (Items 28, 29)
(Superseded to 684453)

Note: Not shown

$64.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 612832

Main handle grip

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

56

Lawn-Boy 610676

Flywheel key (10 pack)

Note: Not shown

$

$

Not available

57

Lawn-Boy 145889

Throttle cable housing assembly
(Superseded to 181582)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

58

Lawn-Boy 610315

Throttle cable

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

59

Lawn-Boy 683303

Throttle trigger assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

60

Lawn-Boy 610314

Throttle trigger spring

Note: The above part nos. are for serial no. 61200000 and greater.

$10.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 610327

Shoulder strap clamp

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

62

Lawn-Boy 612831

Grip

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

63

Lawn-Boy 612021

Tube closure

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

64

Lawn-Boy 683870

J-handle assembly (includes items 62 & 63)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

65

Lawn-Boy 683295

Handle bracket assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

66

Lawn-Boy 683615

Drive shalt housing assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$292.99

$

Usually ships in 3-6 days

0

67

Lawn-Boy 682064

Flexible drive shaft
(Superseded to 92-3236)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

68

Lawn-Boy 683616

Gear box assembly (includes items 69-73)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

69

Lawn-Boy 612478

Upper retaining washer

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

70

Lawn-Boy 612479

Lower retaining washer

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

71

Lawn-Boy 612480

Lock nut

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

72

Lawn-Boy 683617

Fill plug assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

73

Lawn-Boy 683618

Mounting bolt assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

74

Lawn-Boy 682061

Blade assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$24.99

$

Usually ships in 3-6 days

0

75

Lawn-Boy 683299

Guard and blade assembly

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

76

Lawn-Boy 683304

Guard mounting screws

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

77

Lawn-Boy 612481

Guard

Note: The above part nos. are for serial no. 61200000 and greater.

$231.99

$

Usually ships in 3-6 days

0

78

Lawn-Boy 612482

Guard mounting screws

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

79

Lawn-Boy 612031

4-tooth blade

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

80

Lawn-Boy 612483

Spool shalt

Note: The above part nos. are for serial no. 61200000 and greater.

$40.16

$

Usually ships in 3-6 days

0

82

Lawn-Boy 145566

Eyelet

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

83

Lawn-Boy 612026

Retainer (10 pack)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

84

Lawn-Boy 610636

Spring

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

85

Lawn-Boy 612484

Inner reel

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

86

Lawn-Boy 612485

Bump knob
(Superseded to 180814)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available

87

Lawn-Boy 612486

Bump knob bolt
(Superseded to 180814)

Note: The above part nos. are for serial no. 61200000 and greater.

$

$

Not available
