14AQ94RP848 (GT 2200) - Toro Garden Tractor (2012) 50 Inch Deck Assembly Parts Diagram

Garden Tractor

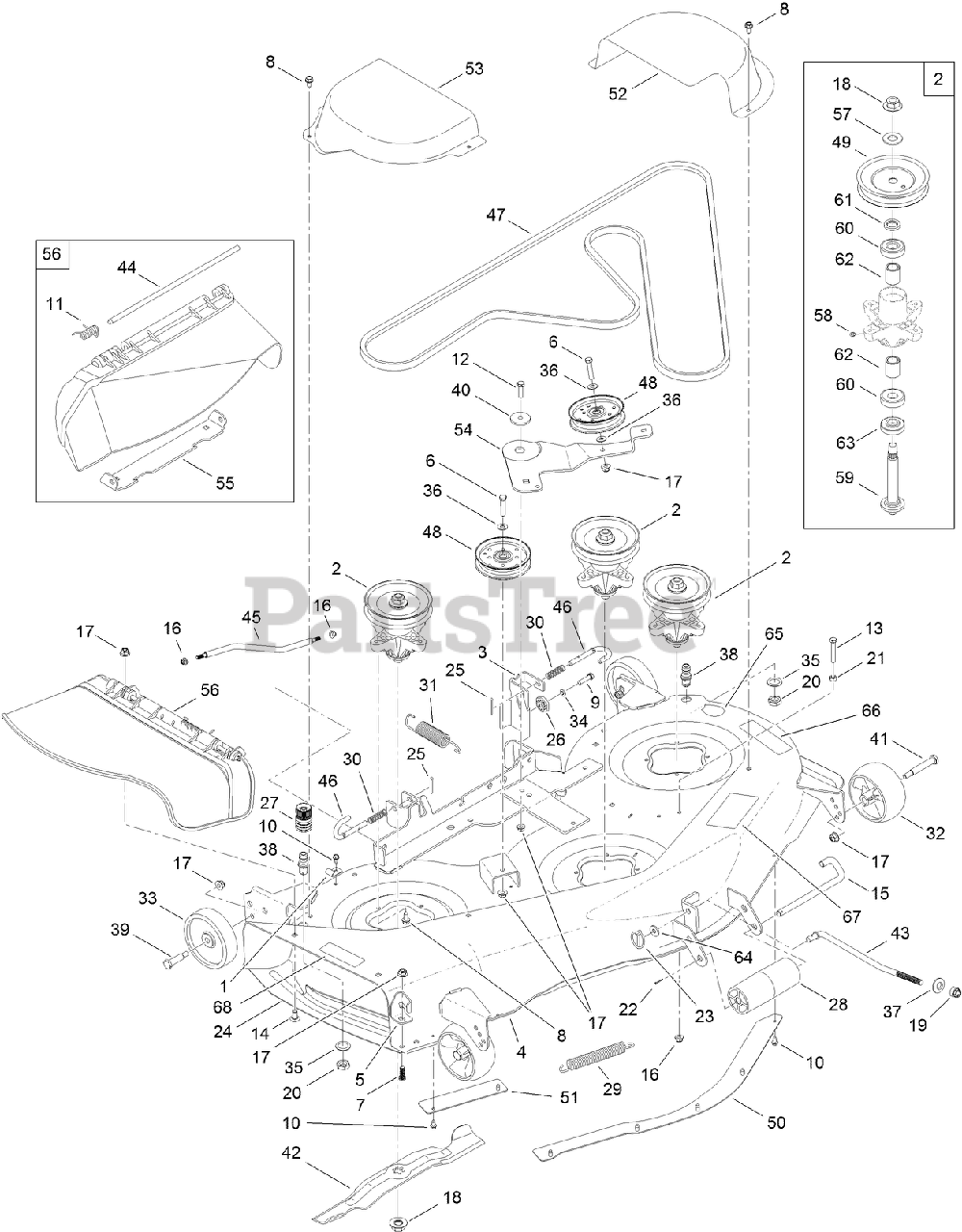

50 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 112-0378

BRACKET-RETAIN, HOOK

$

$

Not available

2

Toro 112-6042

See Supercession: 112-0370
(Superseded to 112-0370)

$209.99

$

In Stock, only 3 left!

0

3

Toro 112-0413

LH HANGER BRACKET ASM

$89.99

$

In Stock, only 3 left!

0

4

Toro 119-9129

DECK ASM

$

$

Not available

5

Toro 125-0080

STOP-DEFLECTOR, CHUTE

$

$

Currently unavailable

6

Toro 112-0513

SCREW-HH

$8.49

$

In Stock, Qty 7

0

7

Toro 112-0631

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

8

Toro 112-6070

SCREW-TAP

$7.49

$

In Stock, only 2 left!

0

9

Toro 112-0373

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

10

Toro 112-0524

SCREW-HWHTF

$8.49

$

Usually ships in 3-6 days

0

11

Toro 119-9111

SPRING-TORSION

$

$

Currently unavailable

12

Toro 112-0557

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

13

Toro 112-0590

SCREW-HH

$

$

Not available

14

Toro 112-0452

BOLT-CARR

$8.49

$

Usually ships in 3-6 days

0

15

Toro 119-9098

PIN-ROLLER

$50.99

$

Usually ships in 3-6 days

0

16

Toro 112-0650

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

17

Toro 112-0668

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

18

Toro 112-0330

NUT-LOCK, FLANGE

$12.99

$

In Stock, only 2 left!

0

19

Toro 119-8449

NUT

$

$

Not available

20

Toro 112-0351

NUT-HEX

$11.99

$

Usually ships in 3-6 days

0

21

Toro 112-0437

NUT-HEX

$7.49

$

Usually ships in 3-6 days

0

22

Toro 112-0568

PIN-COTTER

$8.49

$

Usually ships in 3-6 days

0

23

Toro 119-8450

PIN-LYNCH

$20.99

$

Usually ships in 3-6 days

0

24

Toro 112-0574

BRACKET-FINGER GUARD

$212.99

$

Usually ships in 3-6 days

0

25

Toro 112-0412

PIN-COTTER

$8.49

$

Usually ships in 3-6 days

0

26

Toro 112-0327

GEAR-ADJUSTMENT, DECK

$28.99

$

Usually ships in 3-6 days

0

27

Toro 112-0916

ADAPTER-NOZZLE, WATER

$50.99

$

Usually ships in 3-6 days

0

28

Toro 112-6185

ROLLER-FRONT

$

$

Not available

29

Toro 112-6043

SPRING-EXTENSION

$34.99

$

Usually ships in 3-6 days

0

30

Toro 119-8451

SPRING-COMPRESSION

$14.99

$

Usually ships in 3-6 days

0

31

Toro 112-0399

SPRING-LIFT, ASSIST

$19.99

$

Usually ships in 3-6 days

0

32

Toro 112-0677

WHEEL-DECK, FRONT

$31.99

$

Usually ships in 3-6 days

0

33

Toro 112-0337

WHEEL-DECK, REAR

$19.99

$

In Stock, only 2 left!

0

34

Toro 112-0366

WASHER-LOCK

$

$

Not available

35

Toro 112-0643

WASHER-LOCK

$7.49

$

In Stock, only 1 left!

0

36

Toro 112-0572

WASHER-FLAT

$

$

Not available

37

Toro 119-8455

WASHER-BELLVILLE

$

$

Not available

38

Toro 112-6274

NOZZLE-WATER, DECK

$

$

Not available

39

Toro 112-0334

BOLT-SHOULDER

$16.99

$

In Stock, Qty 8

0

40

Toro 112-0584

SPACER-SHOULDER

$47.99

$

In Stock, only 3 left!

0

41

Toro 112-0325

BOLT-SHOULDER

$20.99

$

Usually ships in 3-6 days

0

42

Toro 112-6280

See Supercession: 112-0316
(Superseded to 112-0316)

$30.99

$

In Stock, Qty 20+

0

43

Toro 125-0081

FRONT DECK LIFT ROD

$

$

Not available

44

Toro 119-9100

PIN-HINGE

$

$

Not available

45

Toro 119-9130

ROD-DECK

$63.99

$

Usually ships in 3-6 days

0

46

Toro 112-0436

PIN-HANDLE, DECK RELEASE

$25.99

$

In Stock, only 2 left!

0

47

Toro 112-0729

BELT-V TYPE

$296.99

$

Usually ships in 3-6 days

0

48

Toro 112-0314

PULLEY-IDLER

$68.99

$

In Stock, Qty 6

0

49

Toro 112-5926

PULLEY

$74.99

$

Usually ships in 3-6 days

0

50

Toro 112-5837

SKIRT-CENTER

$

$

Not available

51

Toro 112-0612

SKIRT-RH

$45.99

$

Usually ships in 3-6 days

0

52

Toro 112-6041

COVER-BELT, LH

$

$

Not available

53

Toro 112-6040

COVER-BELT, RH

$

$

Not available

54

Toro 112-6057

BRACKET-IDLER

$108.99

$

Usually ships in 3-6 days

0

55

Toro 119-9102

BRACKET-CHUTE

$

$

Not available

56

Toro 119-9103

CHUTE ASM

$

$

Not available

57

Toro 112-0921

WASHER-FLAT

$7.49

$

Usually ships in 3-6 days

0

58

Toro 112-0926

FITTING-GREASE

$8.49

$

Usually ships in 3-6 days

0

59

Toro 112-0884

SHAFT-SPINDLE, BLADE (STAR)

$63.99

$

In Stock, only 4 left!

0

60

Toro 112-0377

BEARING-BALL

$37.99

$

Usually ships in 3-6 days

0

61

Toro 112-6038

SPACER

$

$

Not available

62

Toro 112-0389

SPACER

$8.49

$

Usually ships in 3-6 days

0

63

Toro 119-9110

SPACER

$

$

Not available

64

Toro 119-8454

WASHER-FLAT

$9.99

$

Usually ships in 3-6 days

0

65

Toro 119-8474

DECAL-DECK WASH SYSTEM

$

$

Not available

66

Toro 112-6284

DECAL-DECK

$

$

Not available

67

Toro 119-8476

DECAL-BELT ROUTING

$

$

Not available

68

Toro 112-6285

DECAL-CHUTE

$

$

Not available
