161-3550 - Toro Electric Deck Lift Kit for Z Master 4000 Series Electric Deck Lift Kit Assembly No. 161-3550 Parts Diagram

Electric Deck Lift Kit for Z Master 4000 Series

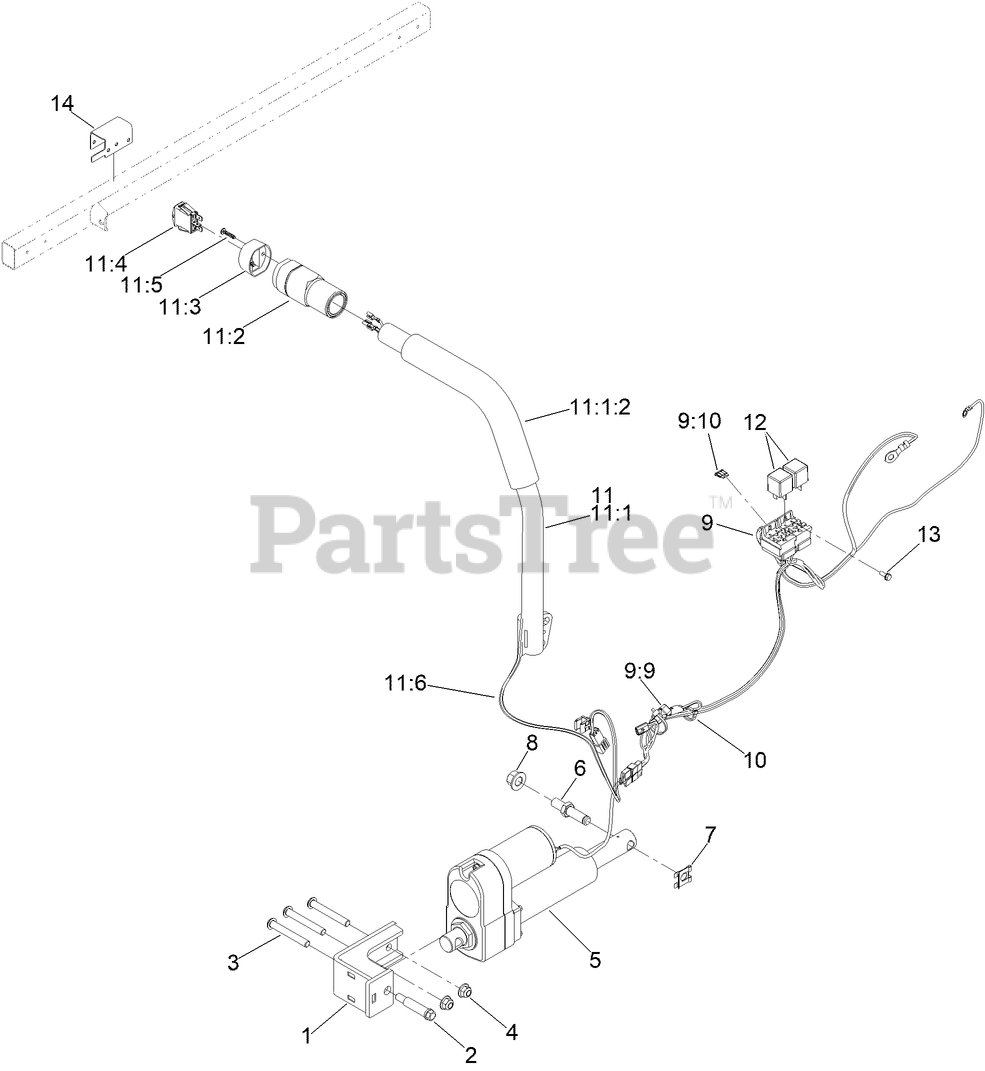

Electric Deck Lift Kit Assembly No. 161-3550 Parts Diagram

  • Title

1

Toro 147-7910-01

DECK LIFT SUPPORT BRACKET [RED]

$217.99

$

Usually ships in 3-6 days

0

2

Toro 115-1116

SCREW-SHOULDER

$41.99

$

Usually ships in 3-6 days

0

3

Toro 135-7158

SCREW-HSBH

$5.99

$

Usually ships in 3-6 days

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 147-7868

ACTUATOR-LINEAR

$733.99

$

Usually ships in 3-6 days

0

6

Toro 139-8135

PIN-PIVOT, ACTUATOR

$19.99

$

Usually ships in 3-6 days

0

7

Toro 138-8491

CLIP-PIN

$7.99

$

In Stock, Qty 6

0

8

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

9

Toro 140-1200

HARNESS-WIRE, DECK LIFT

$122.99

$

Usually ships in 3-6 days

0

9:9

Toro 103-3895

DIODE

$70.99

$

In Stock, only 1 left!

0

9:10

Toro 109101

FUSE-BLADE, 20 AMP

$2.49

$

In Stock, Qty 11

0

10

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

11

Toro 140-8020

HANDLE ASM-LH

$252.99

$

Usually ships in 3-6 days

0

11:1

HANDLE ASM - LH

Note: Not serviced separately

$

$

Not available

11:1:2

Toro 109-5668

GRIP-CONTROL, LEVER

$15.99

$

In Stock, only 3 left!

0

11:2

Toro 125-2662

CASE ASM

$62.99

$

Usually ships in 3-6 days

0

11:3

Toro 121-3399

CAP-SWITCH

$12.99

$

Usually ships in 3-6 days

0

11:4

Toro 140-1228

Air Cleaner Element

$55.99

$

Usually ships in 3-6 days

0

11:5

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

11:6

Toro 144-0354

HARNESS-WIRE, HANDLE

$50.99

$

Usually ships in 3-6 days

0

12

Toro 1-643275

RELAY

$26.99

$

In Stock, Qty 18

0

13

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

14

Toro 147-7911-03

PLATE-TEMPLATE

$25.99

$

Usually ships in 3-6 days

0
