161-6845 - Toro Recycler Kit for 132cm Z Master Revolution Series Mower 132cm Rear Discharge Recycler Kit Assembly No. 161-6845 Parts Diagram

Recycler Kit for 132cm Z Master Revolution Series Mower

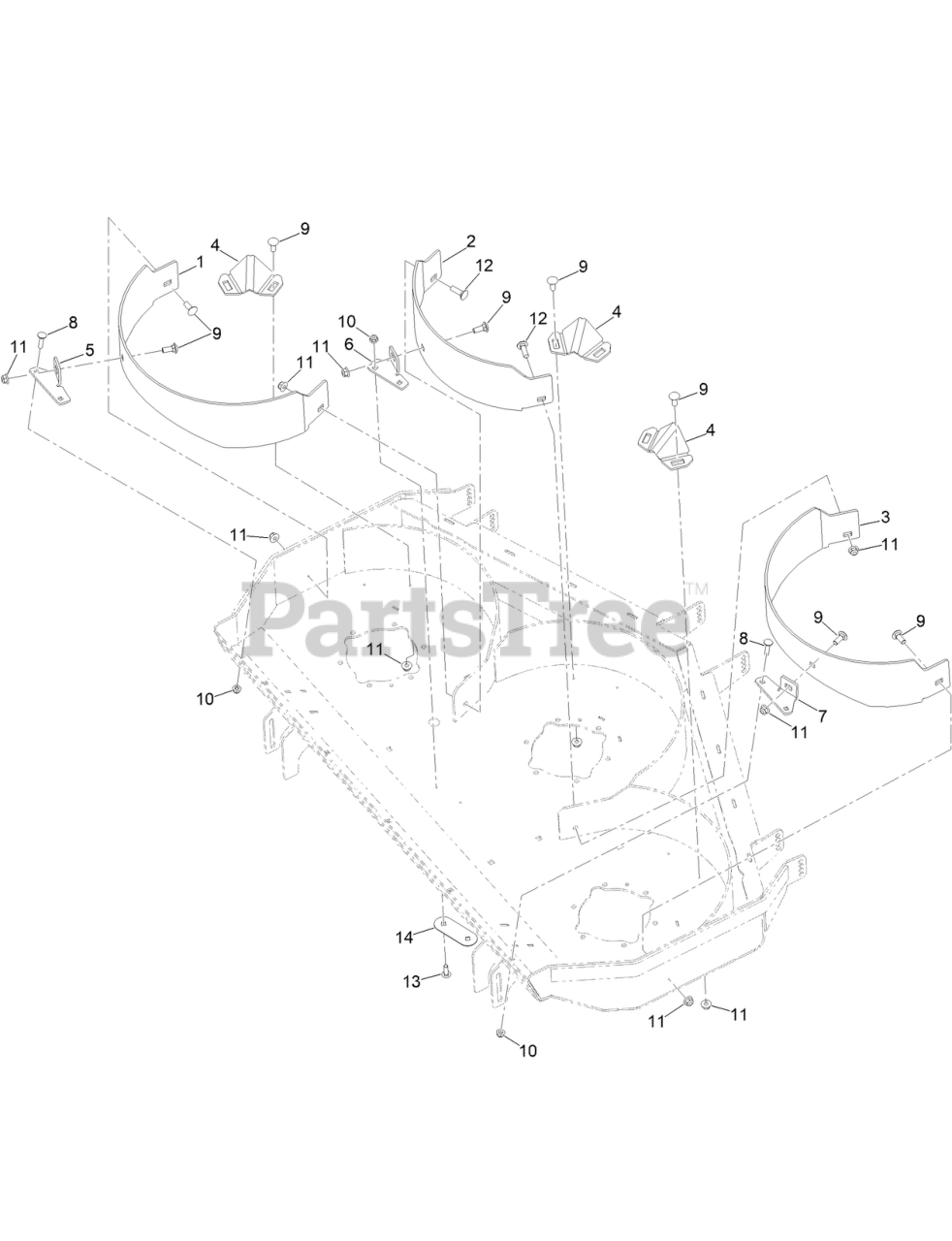

132cm Rear Discharge Recycler Kit Assembly No. 161-6845 Parts Diagram

  • Title

1

Toro 161-6837-01

BAFFLE-RECYCLER, RH

$112.99

$

Usually ships in 3-6 days

0

2

Toro 161-6836-01

BAFFLE-RECYCLER, CTR

$112.99

$

Usually ships in 3-6 days

0

3

Toro 161-6838-01

BAFFLE-RECYCLER, LH

$112.99

$

Usually ships in 3-6 days

0

4

Toro 134-3696-01

KICKER

$29.99

$

Usually ships in 3-6 days

0

5

Toro 161-6839-01

BAFFLE-SUPPORT, RH

$12.99

$

Usually ships in 3-6 days

0

6

Toro 134-4288-01

SUPPORT, CTR BAFFLE (RD)

$12.99

$

Usually ships in 3-6 days

0

7

Toro 161-6841-01

BAFFLE-SUPPORT, LH

$12.99

$

Usually ships in 3-6 days

0

8

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

13

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

14

Toro 134-6618-01

SHIM-PLATE

$3.49

$

Usually ships in 3-6 days

0
