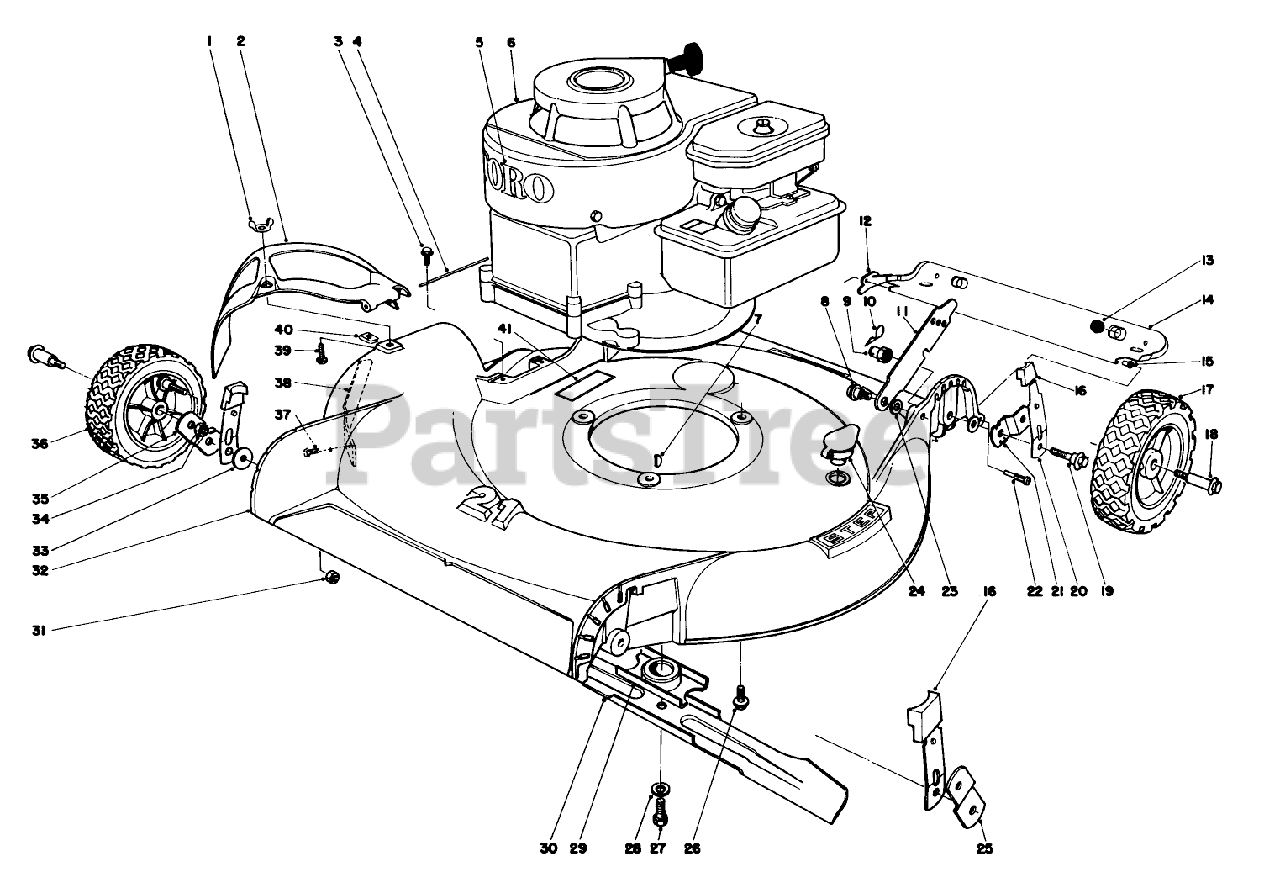

16169 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1975) Housing Assembly Parts Diagram

Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title

1

Toro 32103-14

NUT-WING SPECL

$16.99

$

Usually ships in 3-6 days

0

2

Toro 12-2270

DISCONTINUED
(Superseded to 71-8640)

$

$

Not available

3

Toro 12-3270

SCREW

$3.99

$

In Stock, only 2 left!

0

4

Toro 3-2644

DISCONTINUED

$

$

Not available

5

Toro 23-0810

DISCONTINUED

$

$

Not available

6

Toro 221-503

Engine

$

$

Currently unavailable

7

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, only 1 left!

0

8

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

9

Toro 12-2080

HANDLE PIVOT NUT

$28.99

$

Usually ships in 3-6 days

0

10

Toro 3290-255

PIN-COTTER, HAIR

$10.99

$

In Stock, only 1 left!

0

11

Toro 5-2446

See Supercession: 43-1550
(Superseded to 43-1550)

$

$

Not available

12

Toro 19-5740

DISCONTINUED

$

$

Not available

Toro 19-5680

DISCONTINUED

Note: Not illustrated

$

$

Not available

13

Toro 5-6450

DISCONTINUED

$

$

Not available

14

Toro 19-5780

See Supercession: 28-3780
(Superseded to 28-3780)

$

$

Not available

15

Toro 8-6080

DISCONTINUED

$

$

Not available

16

Toro 8-4220

See Supercession: 25-7740
(Superseded to 25-7740)

$5.49

$

In Stock, Qty 20+

0

17

Toro 10-9680

DISCONTINUED

$

$

Not available

18

Toro 3-2652

Bolt

$

$

Not available

19

Toro 12-2440

PIVOT SCREW

$25.99

$

Usually ships in 3-6 days

0

20

Toro 18-9590

DISCONTINUED XREF

$

$

Not available

21

Toro 20-3190

PIVOT ARM PLATED

$

$

Not available

22

Toro 8-6160

DISCONTINUED

$

$

Not available

23

Toro 3-3287

SPACER

$5.99

$

In Stock, Qty 11

0

24

Toro 6-4500

WASHOUT PLUG

$

$

Not available

25

Toro 20-3170

DISCONTINUE

$

$

Not available

26

Toro 11-0590

See Supercession: 32144-102
(Superseded to 32144-102)

$3.99

$

In Stock, only 3 left!

0

27

Toro 3-5246

DISCONTINUED

$

$

Not available

28

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

29

Toro 20-2750

See Supercession: 49-7890
(Superseded to 49-7890)

$

$

Not available

30

Toro 8-5230

See Supercession: 8-5230-03
(Superseded to 8-5230-03)

$42.99

$

Usually ships in 3-6 days

0

31

Toro 32146-5

See Supercession: 32153-3
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

32

Toro 5-5299

Housing

$

$

Currently unavailable

33

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

34

Toro 32146-12

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

35

Toro 20-3180

PIVOT ARM D PLTD

$

$

Not available

36

Toro 10-9670

DISCONTINUED

$

$

Not available

37

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

38

Toro 12-2990

DISCONTINUED

$

$

Not available

39

Toro 3290-133

SCREW

$1.99

$

Usually ships in 3-6 days

0

40

Toro 3290-380

DISCONTINUED

$

$

Not available

41

Toro 3-7643

See Supercession: 104-8589
(Superseded to 104-8589)

$8.49

$

Usually ships in 3-6 days

0

Toro 25-7690

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable

Toro 19-5790

DISCONTINUED

Note: Not illustrated

$

$

Not available
