16770 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Gear Case Assembly Parts Diagram

Walk-Behind Mower

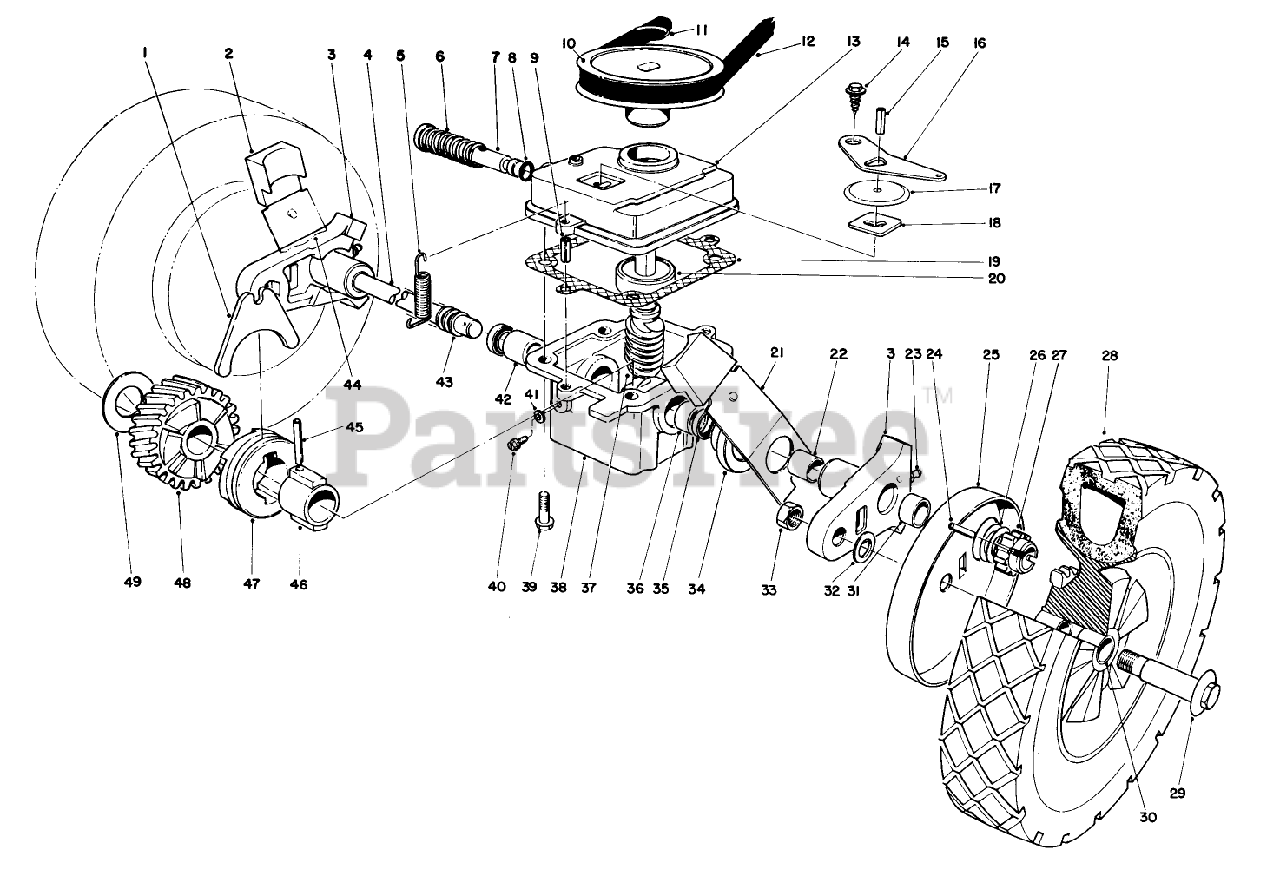

Gear Case Assembly Parts Diagram

  • Title

1

Toro 5-3247

SHIFTER FORK

$

$

Not available

2

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 20+

0

3

Toro 38-2220

PIVOT ARM ASM

$

$

Not available

4

Toro 37-9440

DRIVE SHAFT (SERVCE)

$

$

Not available

5

Toro 17-4490

TENSION SPRING

$

$

Not available

6

Toro 3-0731

SPRING

$

$

Not available

7

Toro 46-8240

SHIFTER ROD

$51.99

$

Usually ships in 3-6 days

0

8

Toro 237-137

O-RING

$16.99

$

Usually ships in 3-6 days

0

9

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.99

$

In Stock, Qty 5

0

10

Toro 18-9760

PULLEY

$

$

Not available

11

Toro 3290-346

PUSH-ON 93-3236

$10.99

$

In Stock, only 1 left!

0

12

Toro 5-4505

BELT-V

$25.99

$

In Stock, only 1 left!

0

13

Toro 39-1100

DISCONTINUED PRC4

$

$

Not available

14

Toro 32140-64

See Supercession: 32144-112
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

15

Toro 32121-23

PIN-ROLL

$

$

Not available

16

Toro 5-3252

SHIFTER ARM

$40.99

$

Usually ships in 3-6 days

0

17

Toro 3-2615

TRANS DUST COVER

$

$

Not available

18

Toro 3-0681

LATCH PLATE

$

$

Not available

19

Toro 36-1000

GASKET

$

$

Not available

20

Toro 47-7250

BEARING - BALL

$

$

Not available

21

Toro 25-7930

See Supercession: 25-7930-03
(Superseded to 25-7930-03)

$

$

Not available

22

Toro 256-206

BUSHING

$1.99

$

Usually ships in 3-6 days

0

23

Toro 302-56

FITTING-GREASE

$5.99

$

In Stock, Qty 8

0

24

Toro 32121-98

See Supercession: 32121-88
(Superseded to 32121-88)

$9.49

$

Usually ships in 3-6 days

0

25

Toro 18-9820

WHEEL COVER

$

$

Not available

26

Toro 46-6510

DISCONTINUED

$

$

Not available

27

Toro 46-5930

PINION GEAR 14T

$38.99

$

Usually ships in 3-6 days

0

28

Toro 44-0570

See Supercession: 11-6359
(Superseded to 11-6359)

$63.99

$

In Stock, only 1 left!

0

29

Toro 27-6230

BOLT-WHEEL

$8.99

$

Usually ships in 3-6 days

0

30

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

31

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

32

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

33

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

34

Toro 3-2646

End Cap

$

$

Currently unavailable

35

Toro 47-6730

SEAL-OIL

$15.99

$

In Stock, Qty 6

0

36

Toro 47-2890

BUSHING

$4.49

$

Usually ships in 3-6 days

0

37

Toro 8-5679

WORM SHAFT & GEAR SET

$190.99

$

In Stock, only 3 left!

0

38

Toro 8-0479

GEAR CASE ASM

$

$

Not available

39

Toro 11-9760

See Supercession: 49-2040
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

40

Toro 28-1550

NYLON SCREW

$

$

Not available

41

Toro 46-9640

FILL PLUG GASKET

$

$

Not available

42

Toro 47-2900

BUSHING

$6.99

$

In Stock, Qty 17

0

43

Toro 24-7920

COVER-SHAFT, DRIVE

$12.99

$

Usually ships in 3-6 days

0

44

Toro 25-7920

SPRING ARM ASM SP RH

$

$

Not available

45

Toro 32121-88

COIL PIN

$9.49

$

Usually ships in 3-6 days

0

46

Toro 3-0721

SLEEVE

$

$

Not available

47

Toro 19-5660

CLUTCH JAW

$

$

Not available

48

Helical Gear

$

$

Not available

49

Toro 3-0724

THRUST WASHER

$

$

Not available

Toro 11-4149

See Supercession: 12-2399
(Superseded to 12-2399)

Note: Not illustrated

$

$

Not available
