17734 - Lawn-Boy 21" Walk-Behind Mower (SN: 314000001 - 314200000) (2014) Engine and Blade Assembly Parts Diagram
21" Walk-Behind Mower

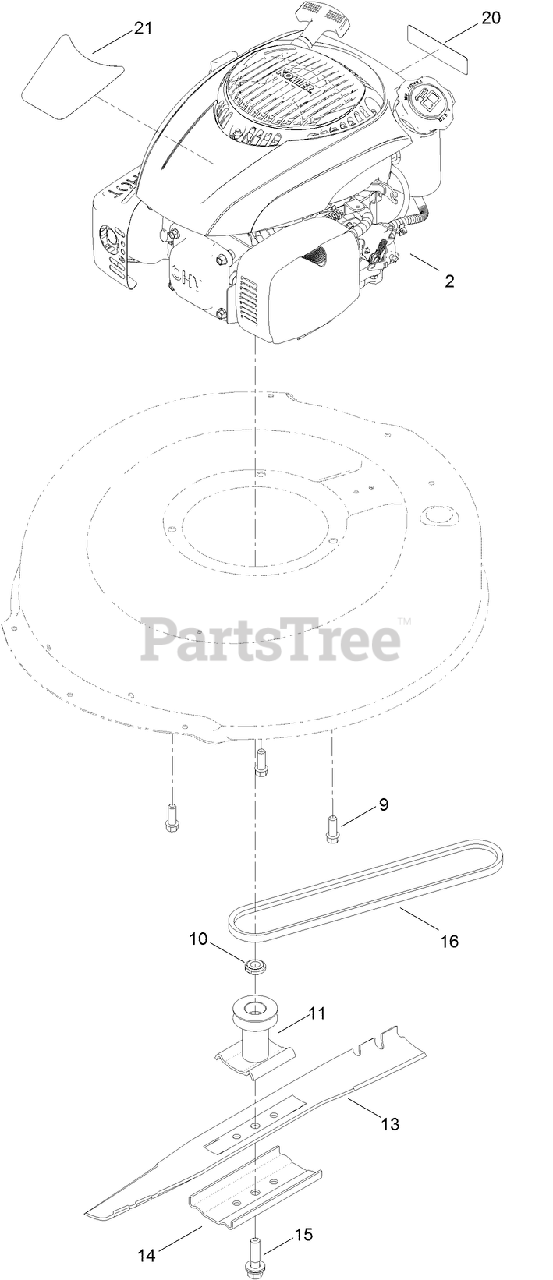

Engine and Blade Assembly Parts Diagram
2
ENGINE-KOHLER, XT650-3030
Note: Obtain parts from www.kohlerplus.com
$
$
Not available
2
ENGINE-KOHLER, XT650-3030
Note: Not serviced separately
$
$
Not available
Lawn-Boy 95-1726
SCREW-TAPTITE
$2.99
$
In Stock, Qty 20+
Lawn-Boy 106-3999
SPACER-DRIVER
$3.99
$
In Stock, Qty 20+
Lawn-Boy 106-3987
DRIVER-BLADE
$36.99
$
In Stock, Qty 20+
$29.99
$
In Stock, Qty 20+
Lawn-Boy 108-3766-03
SUPPORT-BLADE
$11.99
$
In Stock, Qty 20+
Lawn-Boy 125-2466
BOLT-BLADE
$3.99
$
In Stock, Qty 20+
Lawn-Boy 110-9429
V-BELT
$18.99
$
In Stock, Qty 20+
Lawn-Boy 117-2718
DECAL-ARRESTER, SPARK
$7.99
$
Usually ships in 3-6 days
Lawn-Boy 127-6823
DECAL
$150.99
$
Usually ships in 3-6 days
