18560 - Toro 52" GrandStand Revolution Stand-On Mower (SN: 412800000 - 414299999) Battery Cable Assembly Parts Diagram

52" GrandStand Revolution Stand-On Mower

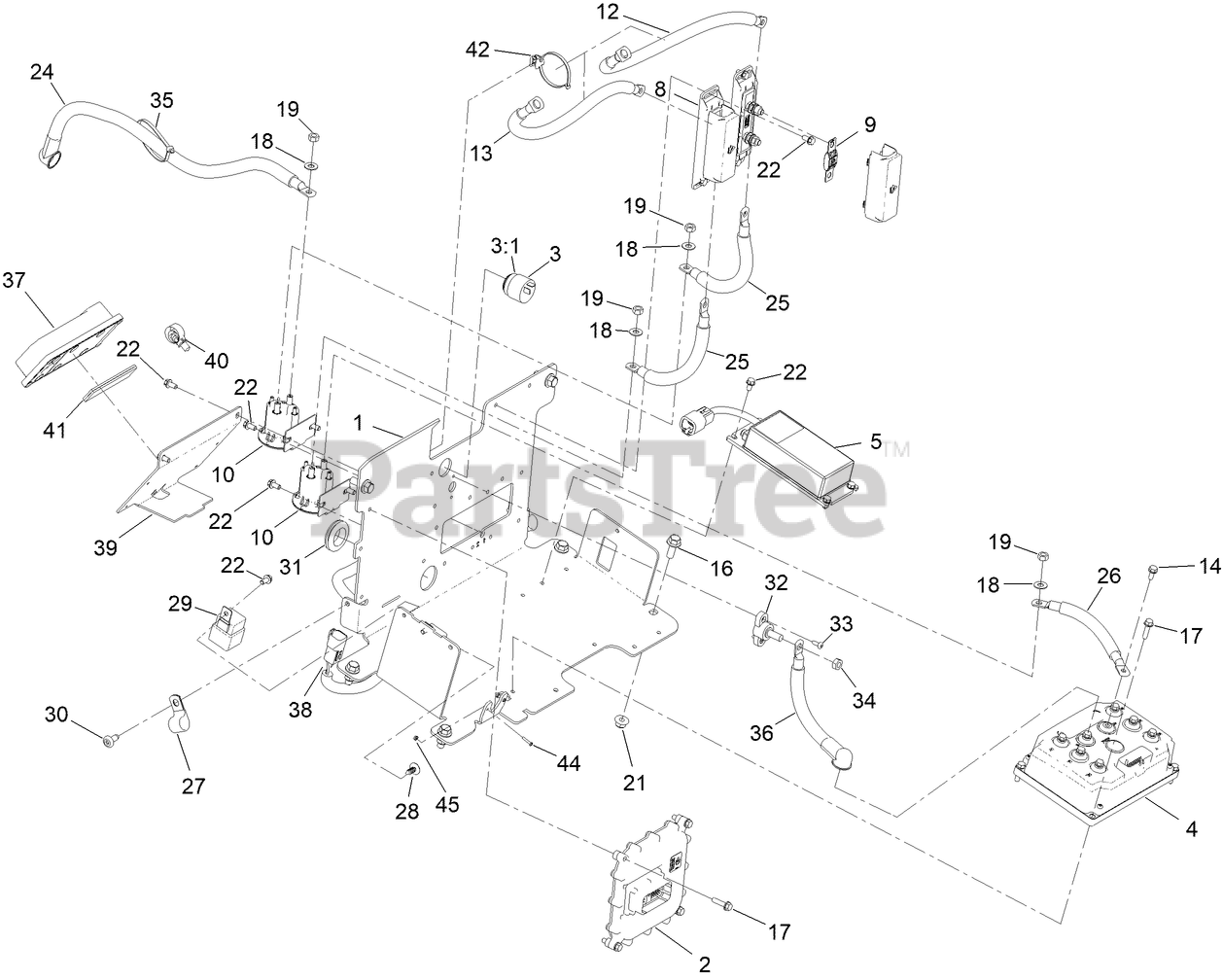

Battery Cable Assembly Parts Diagram

  • Title

1

Toro 145-3563-03

PLATE-MNT, ELECTRICAL

$161.99

$

Usually ships in 3-6 days

0

2

Toro 127-2770

CONTROLLER

$1790.99

$

Usually ships in 3-6 days

0

3

Toro 80-9330

AUDIO ALARM ASM

$161.99

$

Usually ships in 3-6 days

0

3:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$6.49

$

Usually ships in 3-6 days

0

4

Toro 138-8984

INV/CTRLR-48V,DUAL 94Arms

$2534.99

$

Usually ships in 3-6 days

0

5

Toro 144-6975

CONVERTER DC-DC

$488.99

$

Usually ships in 3-6 days

0

8

Toro 145-4958

HOLDER-FUSE

$31.99

$

Usually ships in 3-6 days

0

9

Toro 122-2561

FUSE-200A

$20.99

$

Usually ships in 3-6 days

0

10

Toro 145-3542

CONTACTOR-DC, 12V

$96.99

$

Usually ships in 3-6 days

0

12

Toro 147-0332

CABLE-BATTERY, RD ASM

$93.99

$

Usually ships in 3-6 days

0

13

Toro 147-0331

CABLE-BATTERY, RD ASM

$90.99

$

Usually ships in 3-6 days

0

14

Toro 145-5782

SCREW-SEMS

$1.49

$

Usually ships in 3-6 days

0

16

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

17

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

18

Toro 107-0279

WASHER

$1.99

$

Usually ships in 3-6 days

0

19

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

24

Toro 147-0228

CABLE-BATTERY, RD ASM

$112.99

$

Usually ships in 3-6 days

0

25

Toro 147-0225

CABLE-BATTERY, RD ASM

$68.99

$

Usually ships in 3-6 days

0

26

Toro 147-0237

CABLE-BATTERY, RD ASM

$68.99

$

Usually ships in 3-6 days

0

27

Toro 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

28

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

29

Toro 70-1480

RELAY

$123.99

$

Usually ships in 3-6 days

0

30

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

31

Toro 120-3265

GROMMET

$4.99

$

Usually ships in 3-6 days

0

32

Toro 110-8823

BLOCK-JUNCTION

$52.99

$

Usually ships in 3-6 days

0

33

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 20+

0

34

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

35

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

36

Toro 147-0240

CABLE-BATTERY, BK ASM

$74.99

$

Usually ships in 3-6 days

0

37

Toro 139-8189

CONTROLLER, CALAMP-NA

$885.99

$

Usually ships in 3-6 days

0

38

Toro 147-0250

HARNESS-WIRE

$99.99

$

Usually ships in 3-6 days

0

39

Toro 145-3578-03

PLATE-MOUNT, CALAMP

$43.99

$

Usually ships in 3-6 days

0

40

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

41

Toro 147-0220

STRIP-FASTENER, ADHESIVE

$

$

Currently unavailable

42

Toro 32180-150

CLIP-HARNESS. EDGE, W/TIE-WRAP

$8.99

$

Usually ships in 3-6 days

0

44

Toro 1-3084

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

45

Toro 9157324

NUT-HEX, NYL INS

$1.49

$

In Stock, Qty 7

0
