18560 - Toro 52" GrandStand Revolution Stand-On Mower (SN: 412800000 - 414299999) Electrical Assembly Parts Diagram

52" GrandStand Revolution Stand-On Mower

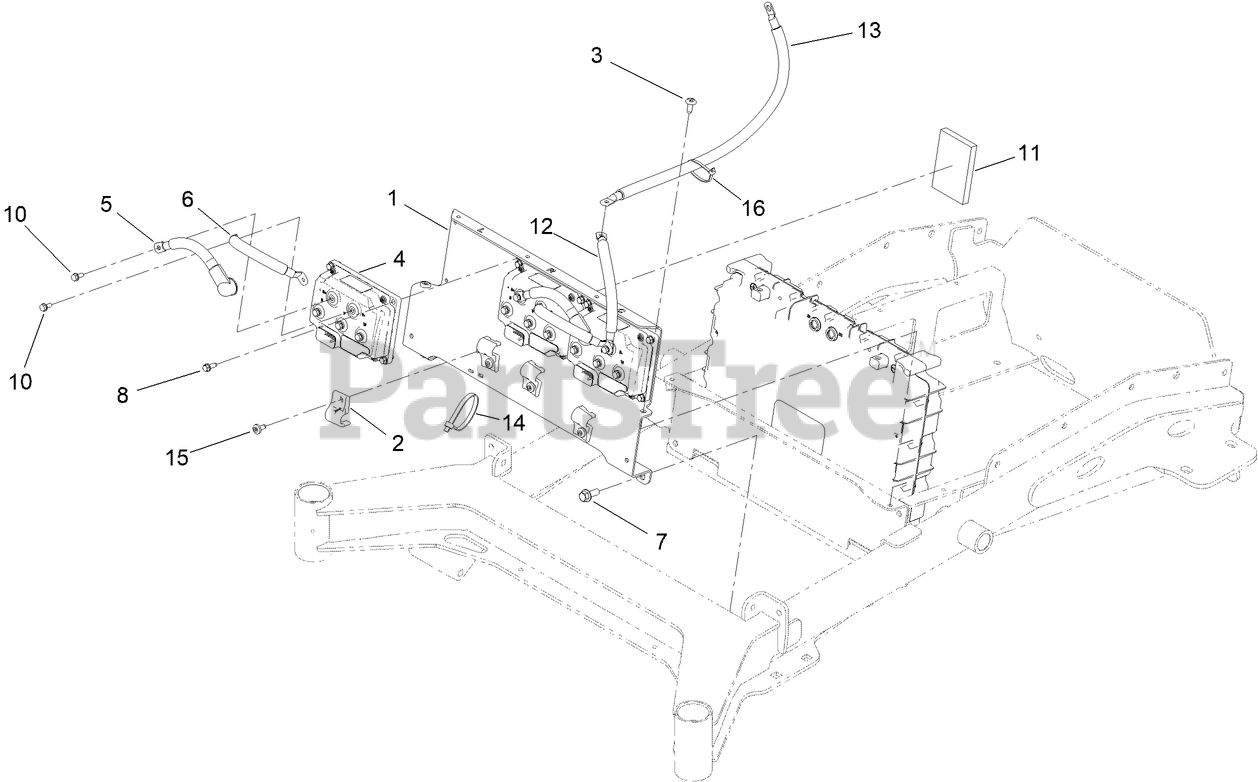

Electrical Assembly Parts Diagram

  • Title

1

Toro 144-6956-03

PLATE-MOTOR CONTROLLER MNT

$158.99

$

Usually ships in 3-6 days

0

2

Toro 145-6985

MOUNT-CABLE

$7.99

$

Usually ships in 3-6 days

0

3

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

4

Toro 145-7270

INV/CTRLR-48V

$1754.99

$

Usually ships in 3-6 days

0

5

Toro 147-0238

CABLE-BATTERY, RD ASM

$70.99

$

Usually ships in 3-6 days

0

6

Toro 147-0239

CABLE-BATTERY, BK ASM

$90.99

$

Usually ships in 3-6 days

0

7

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

8

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.99

$

In Stock, Qty 5

0

10

Toro 145-5782

SCREW-SEMS

$1.49

$

Usually ships in 3-6 days

0

11

Toro 100-2196

PAD-FOAM

$15.99

$

Usually ships in 3-6 days

0

12

Toro 147-0241

CABLE-BATTERY, BK ASM

$70.99

$

Usually ships in 3-6 days

0

13

Toro 147-0242

CABLE-BATTERY, BK ASM

$108.99

$

Usually ships in 3-6 days

0

14

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

15

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

16

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
