18560 - Toro 52" GrandStand Revolution Stand-On Mower (SN: 412800000 - 414299999) Ground Drive Assembly Parts Diagram

52" GrandStand Revolution Stand-On Mower

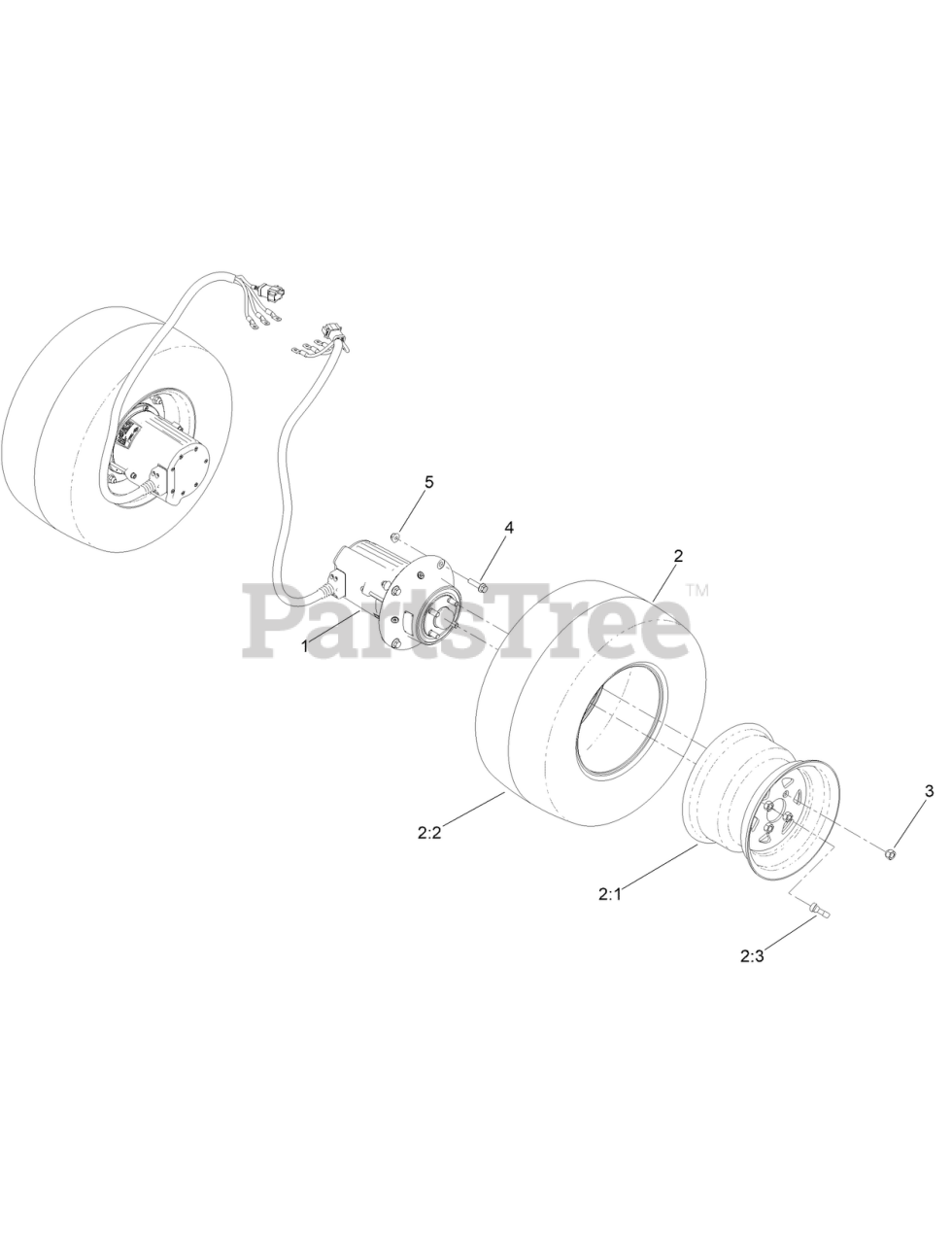

Ground Drive Assembly Parts Diagram

  • Title

1

Toro 147-1688

MOTOR/GEARBOX ASM-48V,

$3341.99

$

Usually ships in 3-6 days

0

2

Toro 144-3846

WHEEL AND TIRE ASM

$336.99

$

Usually ships in 3-6 days

0

2:1

Toro 144-3847

RIM-10 IN

$144.99

$

Usually ships in 3-6 days

0

2:2

Toro 144-1519

TIRE

$224.99

$

Usually ships in 3-6 days

0

2:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

3

Toro 242-35

NUT-WHEEL

$10.99

$

Usually ships in 3-6 days

0

4

Toro 114-4681

SCREW-HHF

$3.99

$

In Stock, Qty 6

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
