18560 - Toro 52" GrandStand Revolution Stand-On Mower (SN: 412800000 - 414299999) Platform Assembly Parts Diagram

52" GrandStand Revolution Stand-On Mower

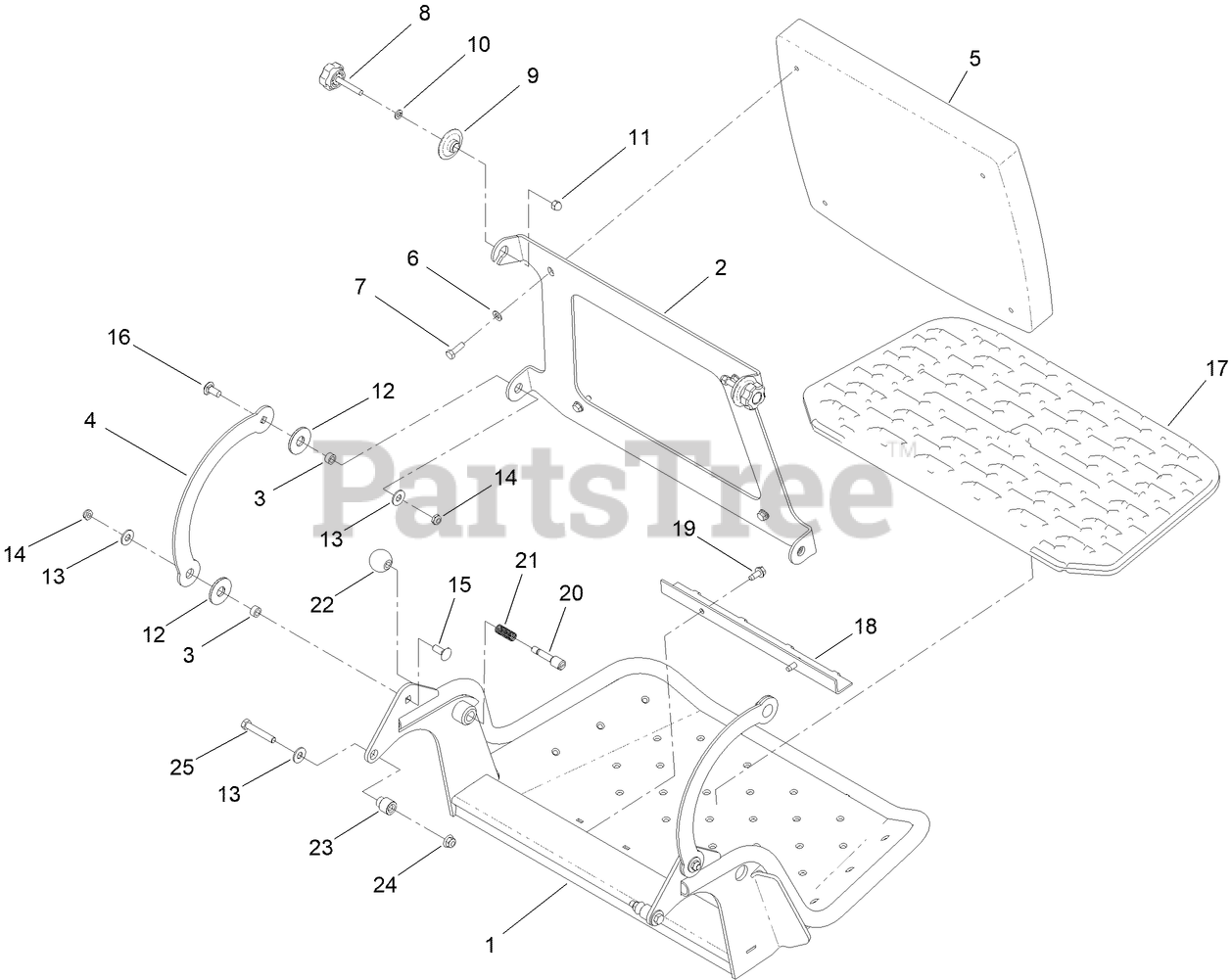

Platform Assembly Parts Diagram

  • Title

1

Toro 120-8475-01

PLATFORM
(Superseded to 163-3498-01SP)

$508.99

$

Usually ships in 3-6 days

0

2

Toro 120-8499-03

HINGE-PAD

$178.99

$

Usually ships in 3-6 days

0

3

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

4

Toro 114-1915-01

LINK-PAD

$44.99

$

Usually ships in 3-6 days

0

5

Toro 145-3535

CUSHION PAD ASM

$302.99

$

Usually ships in 3-6 days

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 121-7999

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

8

Toro 133-1426

KNOB

$5.49

$

In Stock, Qty 20+

0

9

Toro 116-2886

SLIDE-BUSHING

$6.99

$

In Stock, Qty 20+

0

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 131-4535

NUT-ACORN
(Superseded to 137-4808)

$1.99

$

In Stock, Qty 20+

0

12

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

0

13

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

14

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 3 left!

0

15

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

17

Toro 144-6958

MAT, PLATFORM

$86.99

$

Usually ships in 3-6 days

0

18

Toro 114-1920-03

CLAMP-SHIELD

$46.99

$

Usually ships in 3-6 days

0

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 119-8650

PIN-LATCH

$22.99

$

In Stock, only 1 left!

0

21

Toro 114-5348

SPRING

$2.99

$

In Stock, only 2 left!

0

22

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 3 left!

0

23

Toro 132-7583

BUSHING-FLANGED

$5.99

$

In Stock, Qty 20+

0

24

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 323-45

SCREW-HH

$4.49

$

In Stock, Qty 20+

0
