18562 - Toro 48" GrandStand Revolution Stand-On Mower (SN: 414800000 - 999999999) 48 Inch Deck Assembly Parts Diagram

48" GrandStand Revolution Stand-On Mower

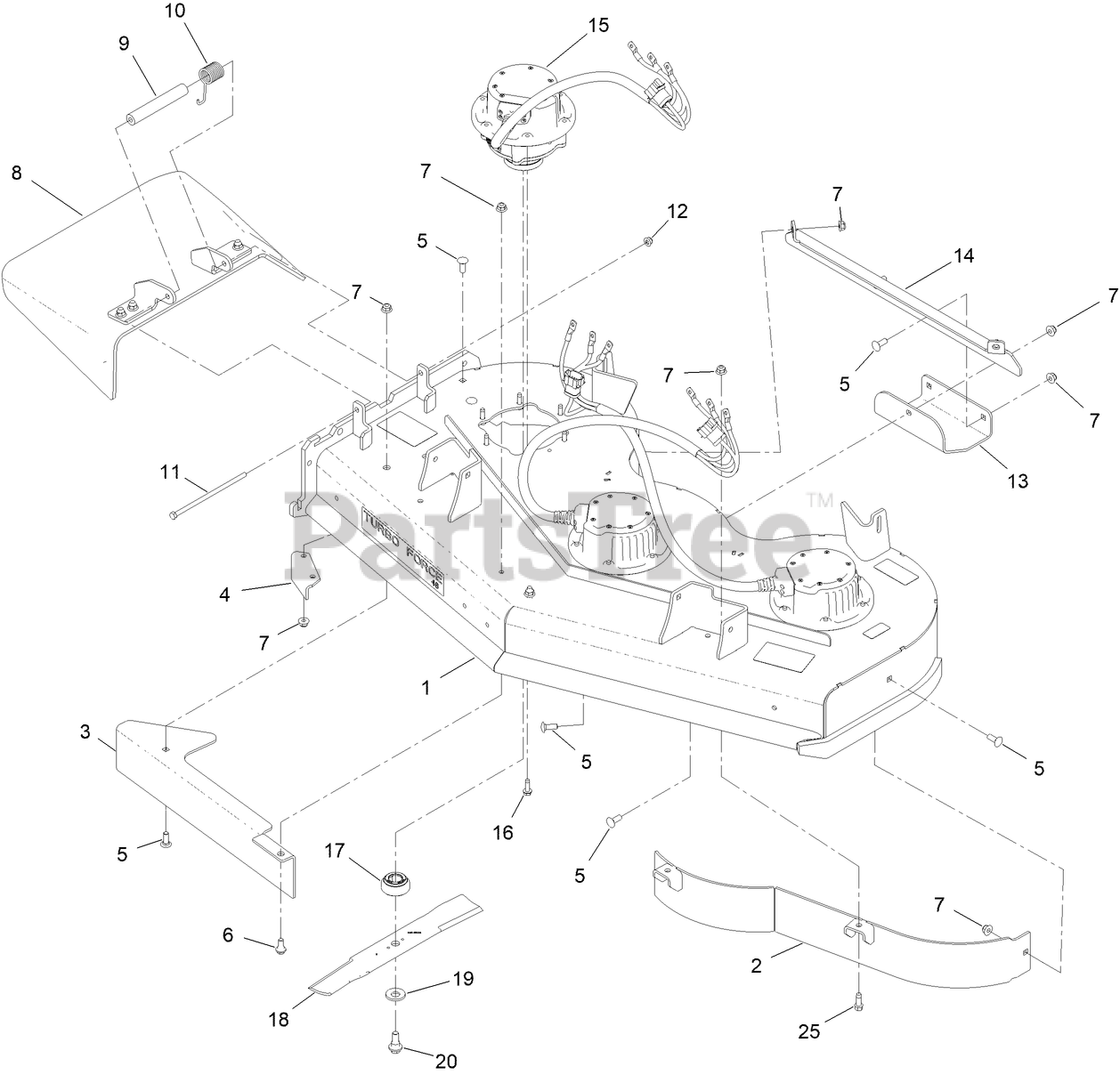

48 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 145-3441

DECK ASM-48IN

$1828.99

$

Usually ships in 3-6 days

0

2

Toro 145-3485-01

BAFFLE ASM, 48IN [RED]

$223.99

$

Usually ships in 3-6 days

0

3

Toro 139-8105-01

PLATE-BAFFLE, FORMED [RED]

$89.99

$

Usually ships in 3-6 days

0

4

Toro 107-8541-01

BAFFLE-DISCHARGE

$25.99

$

In Stock, only 1 left!

0

5

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

6

Toro 94-7582

BOLT-SHOULDER

$3.99

$

In Stock, Qty 7

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 147-1642

RUBBER DEFLECTOR ASM

$186.99

$

Usually ships in 3-6 days

0

1

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

2

Toro 106-3246-01

DEFLECTOR

$70.99

$

In Stock, only 2 left!

0

3

Toro 106-3248-03

STRAP-DISCHARGE

$31.99

$

In Stock, only 1 left!

0

4

Toro 139-8114

DEFLECTOR-DECK, RUBBER
(Superseded to 161-3464)

$66.99

$

In Stock, only 1 left!

0

5

Toro 147-0386-01

PLATE-HINGE, REAR

$15.99

$

Usually ships in 3-6 days

0

6

Toro 147-0387-01

PLATE-HINGE, FRONT

$15.99

$

Usually ships in 3-6 days

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 105-4622

SPACER

$11.99

$

In Stock, only 3 left!

0

10

Toro 108-4052

SPRING-TORSION

$28.99

$

In Stock, Qty 5

0

11

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 13

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 114-1908-01

SKID

$93.99

$

Usually ships in 3-6 days

0

14

Toro 130-6649-01

BRACKET-SKID

$80.99

$

Usually ships in 3-6 days

0

15

Toro 147-1689

MOTOR/GEN-48V,

$1638.99

$

Usually ships in 3-6 days

0

16

Toro 701243

SCREW-THD ROLL, HWH

$3.49

$

In Stock, Qty 20+

0

17

Toro 145-3439

RETAINER-BLADE

$17.99

$

In Stock, Qty 5

0

18

Toro 145-3503-03

BLADE-16.5IN, MED SAIL

$30.99

$

Usually ships in 3-6 days

0

19

Toro 125-1736

WASHER-BELLEVILLE

$4.99

$

In Stock, Qty 20+

0

20

Toro 145-3499

SCREW-SHOULDER,HWH

$9.99

$

Usually ships in 3-6 days

0

25

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0
