18564 - Toro 60" GrandStand Revolution Stand-On Mower (SN: 400000000 - 414299999) LH Control Handle Assembly No. 144-1421 Parts Diagram

60" GrandStand Revolution Stand-On Mower

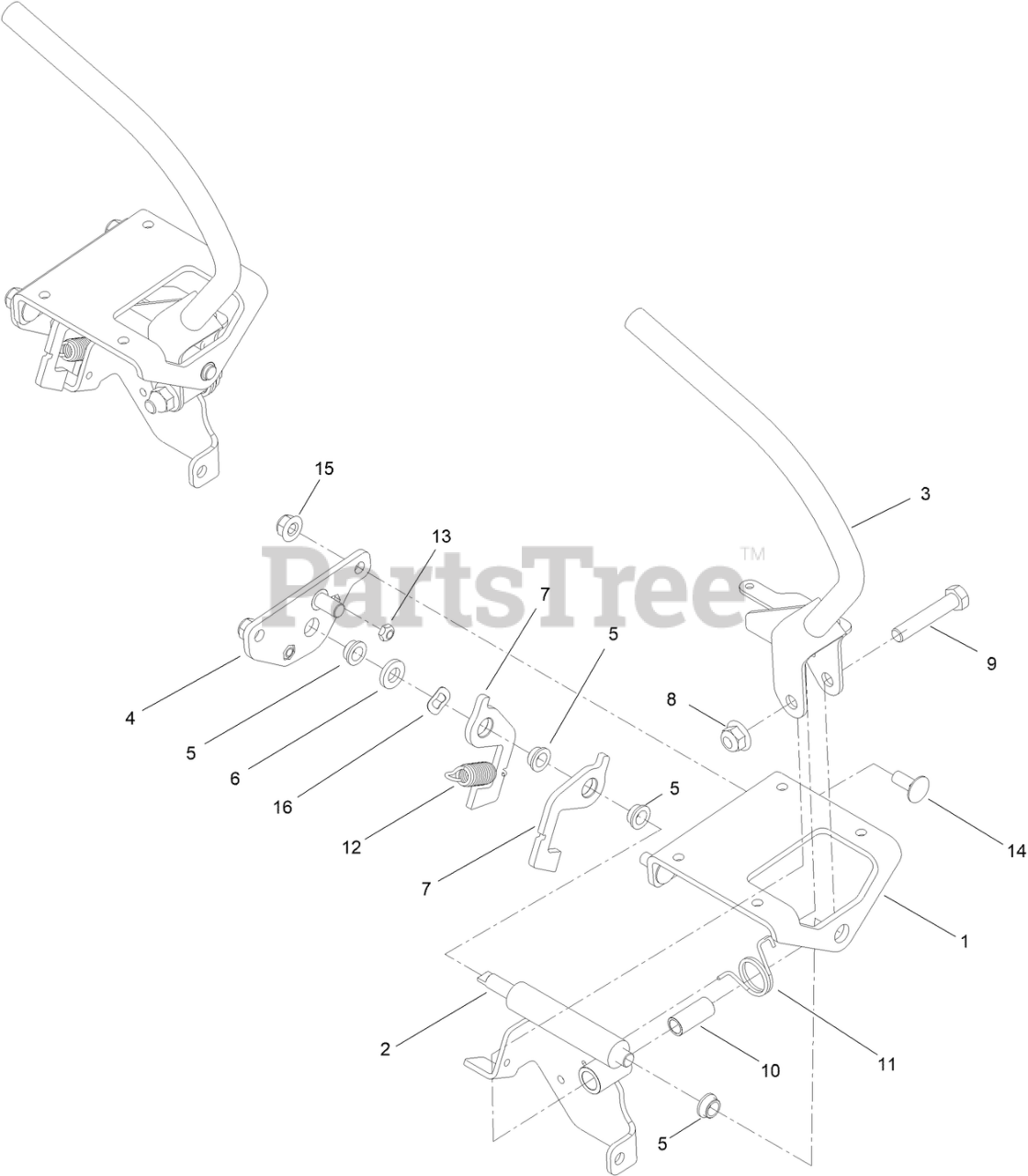

LH Control Handle Assembly No. 144-1421 Parts Diagram

  • Title

1

Toro 144-1427

BRACKET-CONTROL MOUNT

$

$

Currently unavailable

2

Toro 145-3585

MOTION CONTROL ASM LH

$199.99

$

Usually ships in 3-6 days

0

3

Toro 145-3579

LH LEVER ASM

$248.99

$

Usually ships in 3-6 days

0

4

Toro 144-1491

PLATE ASM-SENSOR LH

$357.99

$

Usually ships in 3-6 days

0

5

Toro 139-1525

BUSHING-FLANGED NYLON

$19.99

$

Usually ships in 3-6 days

0

6

Toro 139-6293

WASHER

$

$

Currently unavailable

7

Toro 139-1513

PLATE-SPRING

$

$

Currently unavailable

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 131-3562

BEARING-SLEEVE

$2.49

$

In Stock, only 2 left!

0

11

Toro 139-1508

SPRING-TORSION

$3.99

$

Usually ships in 3-6 days

0

12

Toro 139-2859

SPRING-EXTENSION

$3.99

$

Usually ships in 3-6 days

0

13

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 5

0

14

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 108472

WASHER-WAVE

$

$

Not available
