18752 - Toro 52" Z Master Revolution Zero-Turn Mower (SN: 414889588 - 415299999) Main Frame Assembly Parts Diagram

52" Z Master Revolution Zero-Turn Mower

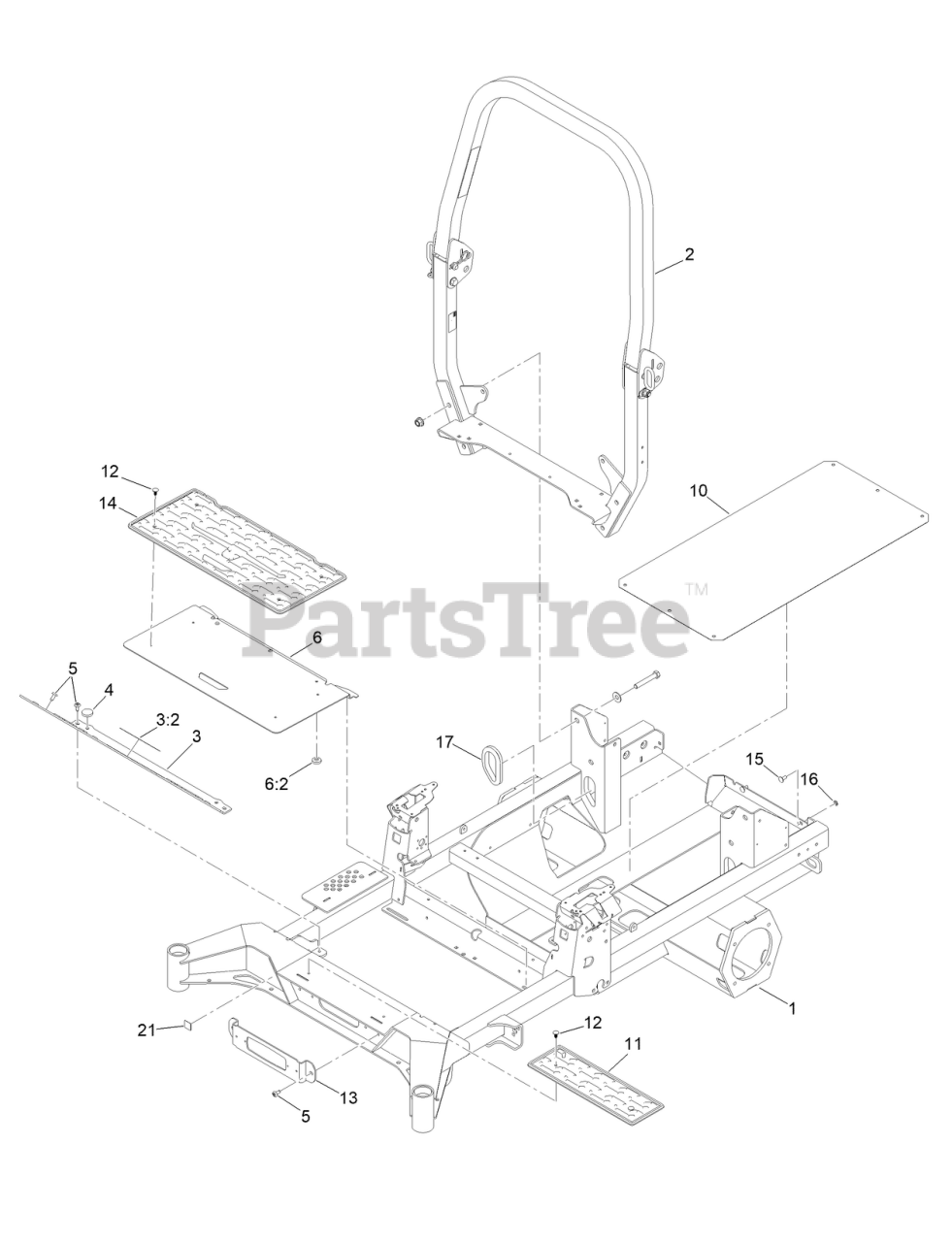

Main Frame Assembly Parts Diagram

  • Title

1

Toro 145-1307-01

FRAME

$

$

Currently unavailable

2

Toro 161-3495

ROPS ASM

$

$

Currently unavailable

3

Toro 145-3666

TOEBOARD W/DECAL

$181.99

$

Usually ships in 3-6 days

0

3:2

Toro 145-3665

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

4

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.99

$

In Stock, Qty 10

0

5

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

6

Toro 138-6098

ASM-FLOOR PAN

$129.99

$

Usually ships in 3-6 days

0

6:2

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.99

$

In Stock, Qty 10

0

10

Toro 147-7856-01

PLATE-SKID

$54.99

$

Usually ships in 3-6 days

0

11

Toro 140-4992

STEP

$23.99

$

Usually ships in 3-6 days

0

12

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

13

Toro 140-4994-01

BRACKET-LIGHT

$20.99

$

Usually ships in 3-6 days

0

14

Toro 140-7950

FLOORMAT-FIXED SEAT

$58.99

$

Usually ships in 3-6 days

0

15

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

16

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

17

Toro 144-6568

GROMMET-RUBBER

$5.49

$

Usually ships in 3-6 days

0

21

Toro 147-0290

DECAL-LIGHT, WARNING

$7.49

$

Usually ships in 3-6 days

0
