18752 - Toro 52" Z Master Revolution Zero-Turn Mower (SN: 414889588 - 415299999) Seat Mount Assembly Parts Diagram

52" Z Master Revolution Zero-Turn Mower

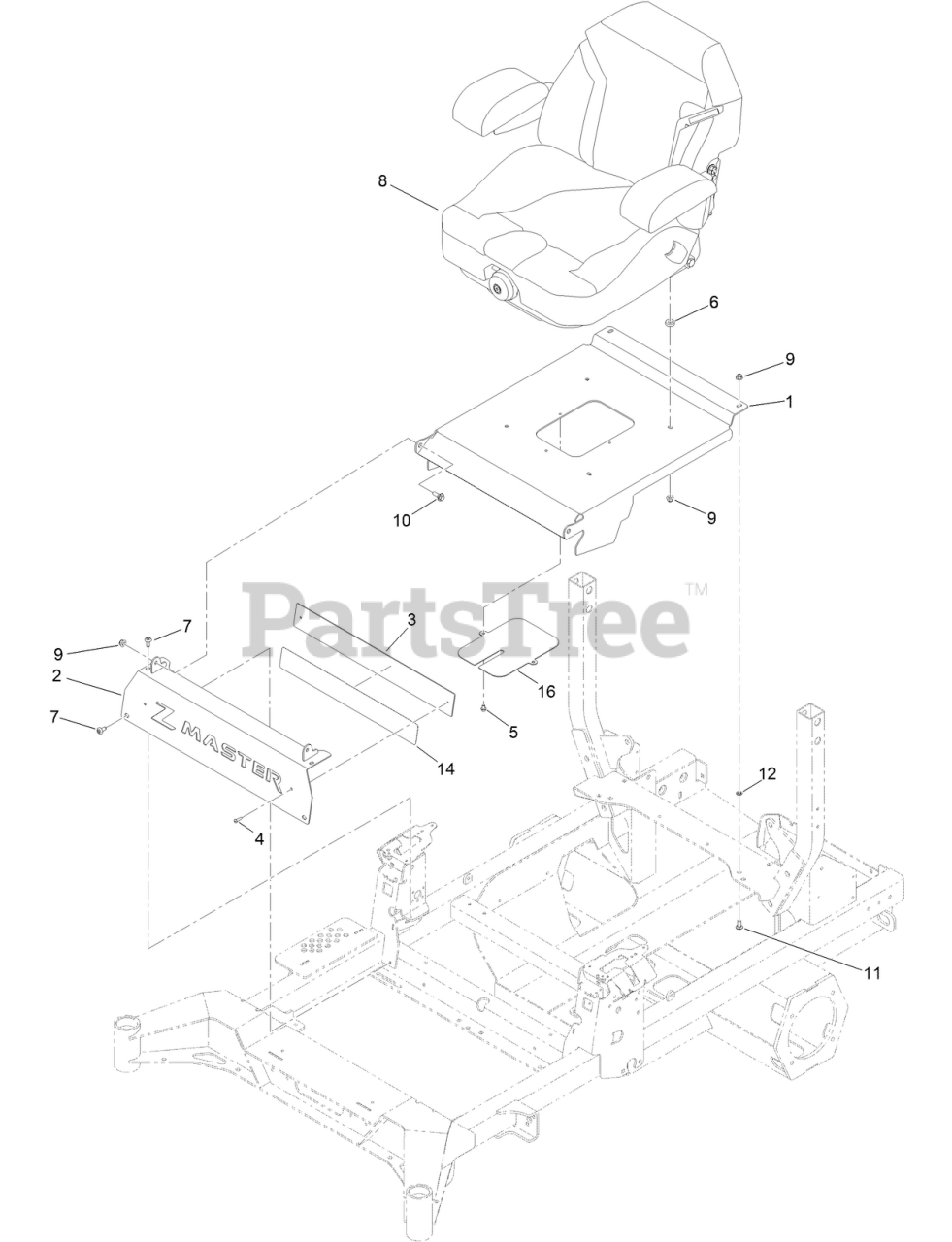

Seat Mount Assembly Parts Diagram

  • Title

1

Toro 147-7804-03

PAN-SEAT

$

$

Not available

2

Toro 145-1311-03

BADGE PLATE ASM

$95.99

$

Usually ships in 3-6 days

0

3

Toro 147-4954-01

PLATE-BACKER

$15.99

$

Usually ships in 3-6 days

0

4

Toro 130-8451

RIVET-TRIFOLD

$1.49

$

Usually ships in 3-6 days

0

5

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

6

Toro 5-0652

SPACER

$8.49

$

In Stock, only 2 left!

0

7

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

8

Toro 145-8422

SUSPENSION SEAT ASM

$1059.99

$

Usually ships in 3-6 days

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 116-1297

SCREW-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

11

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 145-7011

DECAL-BACKER PLATE

$6.49

$

Usually ships in 3-6 days

0

16

Toro 147-7789-03

PLATE-COVER, SEAT

$

$

Currently unavailable
