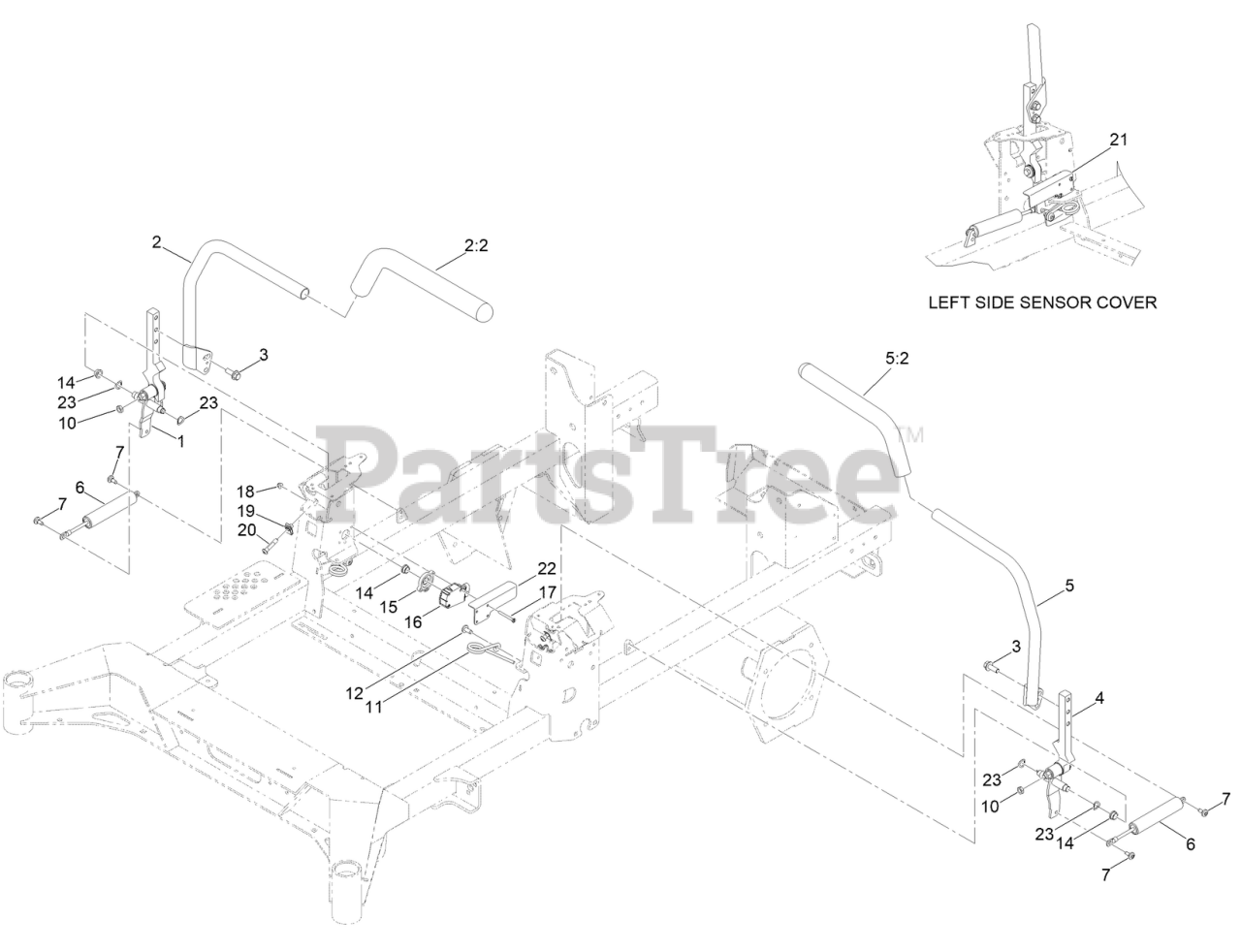

18762 - Toro 60" Z Master Revolution Zero-Turn Mower (SN: 418000000 - 999999999) Motion Control and Parking Brake Assembly Parts Diagram

60" Z Master Revolution Zero-Turn Mower

Motion Control and Parking Brake Assembly Parts Diagram

  • Title

1

Toro 146-3655

RH MOTION CONTROL ASM

$

$

Currently unavailable

2

Toro 147-2390

HANDLE ASM - RH

$84.99

$

Usually ships in 3-6 days

0

2:2

Toro 109-5668

GRIP-CONTROL, LEVER

$15.99

$

In Stock, only 3 left!

0

3

Toro 110-5052

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

4

Toro 146-3656

LH MOTION CONTROL ASM

$

$

Currently unavailable

5

Toro 147-2391

HANDLE ASM - LH

$84.99

$

Usually ships in 3-6 days

0

5:2

Toro 109-5668

GRIP-CONTROL, LEVER

$15.99

$

In Stock, only 3 left!

0

6

Toro 132-6853

DAMPER-NON CAVITATING

$38.99

$

In Stock, Qty 8

0

7

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

10

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 5

0

11

Toro 138-7539

SPRING-TORSION

$7.49

$

Usually ships in 3-6 days

0

12

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

14

Toro 256-156

BUSHING-FLANGE

$14.99

$

In Stock, only 2 left!

0

15

Toro 140-5028

SPACER-SENSOR

$2.99

$

Usually ships in 3-6 days

0

16

Toro 122-0917

SENSOR-POSITION

$227.99

$

Usually ships in 3-6 days

0

17

Toro 3290-424

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

18

Toro 135-6342

NUT-HEX FLANGE

$2.49

$

In Stock, only 4 left!

0

19

Toro 112-3306

NUT

$3.99

$

Usually ships in 3-6 days

0

20

Toro 126-4299

SCREW-HSBH

$2.99

$

Usually ships in 3-6 days

0

21

Toro 147-7778-03

PLATE-COVER, SENSOR LH

$11.99

$

Usually ships in 3-6 days

0

22

Toro 147-7779-03

PLATE-COVER, SENSOR RH

$11.99

$

Usually ships in 3-6 days

0

23

Toro 138-1642

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0
